HP V1910 Switch Series User Manual

237

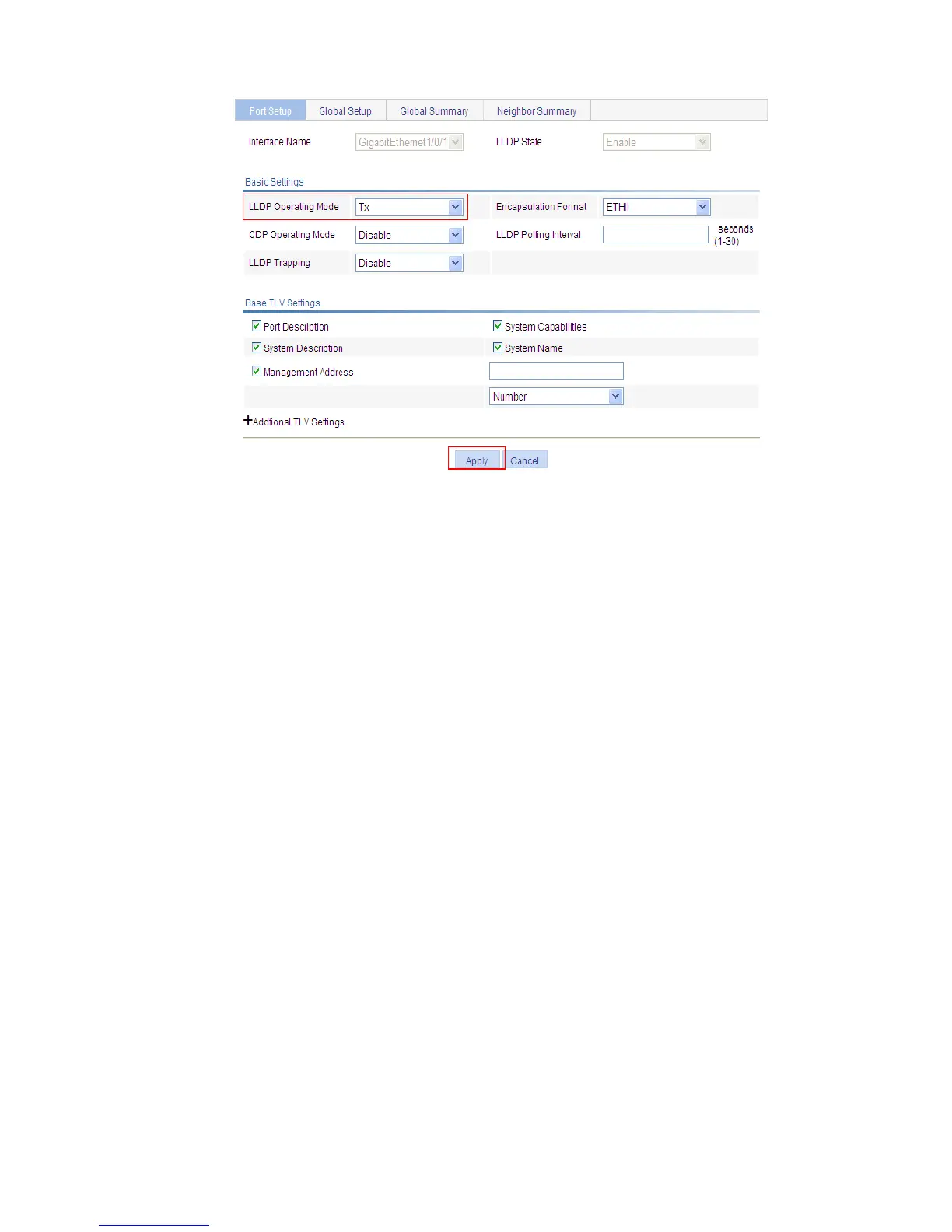

Figure 201 The page for configuring LLDP on the selected port
 Select Tx from the LLDP Operating Mode drop-down list.
 Click Apply.
# Enable global LLDP and configure the global LLDP setup as needed (see Figure 199).
 Click the Global Setup tab.
 Select Enable from the LLDP Enable drop-down list.
 Click Apply.
Configuration verification
# Display the status information of port GigabitEthernet 1/0/2 on Switch A.
 Select Network > LLDP from the navigation tree to enter the Port Setup tab.
 Click GigabitEthernet1/0/2 in the port list.
 Click the Status Information tab at the lower half of the page. The output shows that port
GigabitEthernet 1/0/2 is connected to a non-MED neighbor device (Switch B), as shown in Figure
202.
