HP V1910 Switch Series User Manual

264

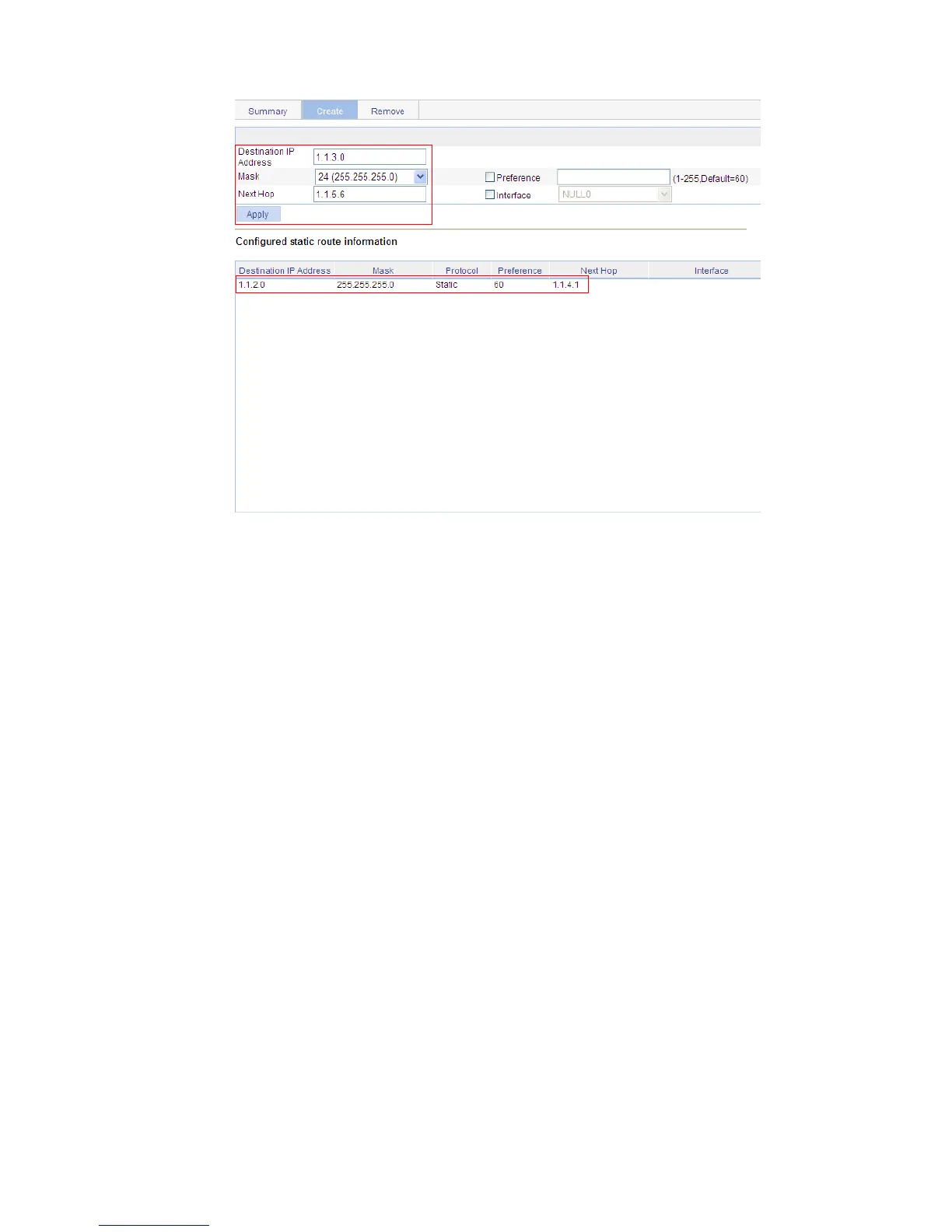

Figure 230 Configure a static route
# Configure a default route to Switch B on Switch C.
 Select Network > IPv4 Routing from the navigation tree of Switch C, and then click the Create tab
to enter the page as shown in Figure 231.
 Type 0.0.0.0 for Destination IP Address.
 Select 0 (0.0.0.0) from the Mask drop-down list.
 Type 1.1.5.5 for Next Hop.
 Click Apply.

HP V1910 Switch Series Specifications

General

Product Series	V1910
VLAN Support	Yes
QoS	Yes
Ports	8, 24, or 48 10/100/1000 ports
MAC Address Table Size	8K entries
Power Supply	Internal power supply
Jumbo Frame Support	Yes
Operating Humidity	10% to 90% (non-condensing)
