337
Select system from the Name drop-down list to use it as the authentication scheme.
Click Apply. A configuration progress dialog box appears, as shown in Figure 307.

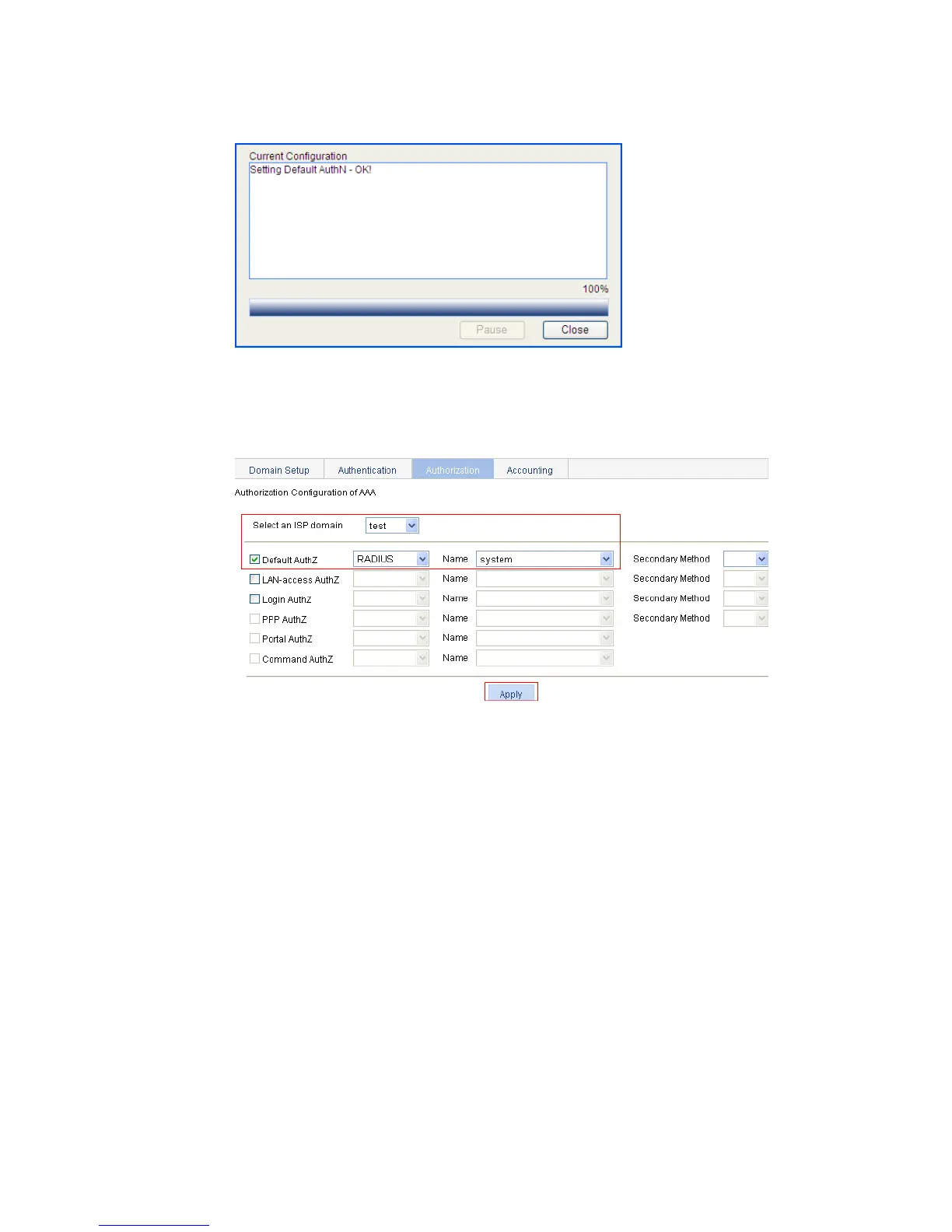

Figure 307 Configuration progress dialog box
After the configuration process is complete, click Close.
# Configure the AAA authorization method for the ISP domain.
Select the Authorization tab.
Figure 308 Configure the AAA authorization method for the ISP domain
Select the domain name test.
Select the Default AuthZ checkbox and then select RADIUS as the authorization mode.
Select system from the Name drop-down list to use it as the authorization scheme.
Click Apply. A configuration progress dialog box appears.
After the configuration process is complete, click Close.
# Configure the AAA accounting method for the ISP domain, and enable accounting optional.
Select the Accounting tab.
