338

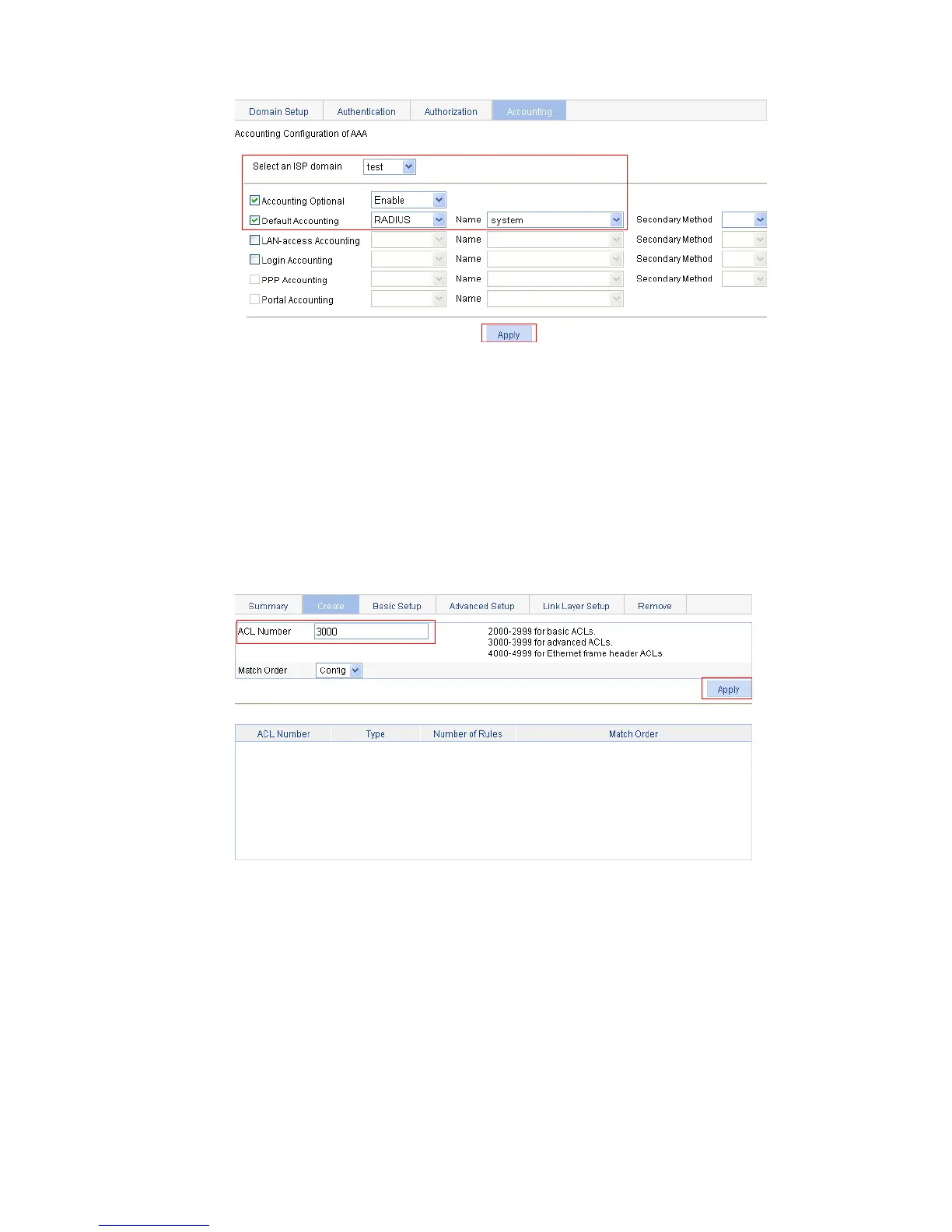

Figure 309 Configure the AAA accounting method for the ISP domain
Select the domain name test.
Select the Accounting Optional checkbox, and then select Enable for this parameter.
Select the Default Accounting checkbox and then select RADIUS as the accounting mode.
Select system from the Name drop-down list to use it as the accounting scheme.
Click Apply. A configuration progress dialog box appears.
After the configuration process is complete, click Close.
4. Configure an ACL.
# Create ACL 3000 that denies packets with destination IP address 10.0.0.1.
From the navigation tree, select QoS > ACL IPv4 to enter the IPv4 ACL configuration page, and then
select the Create tab.
Figure 310 Create ACL 3000
Enter 3000 as the ACL number.
