HP V1910 Switch Series User Manual

339
 Click Apply to finish the operation.
# Configure the ACL to deny packets with destination IP address 10.0.0.1.
 Select the Advanced Setup tab.

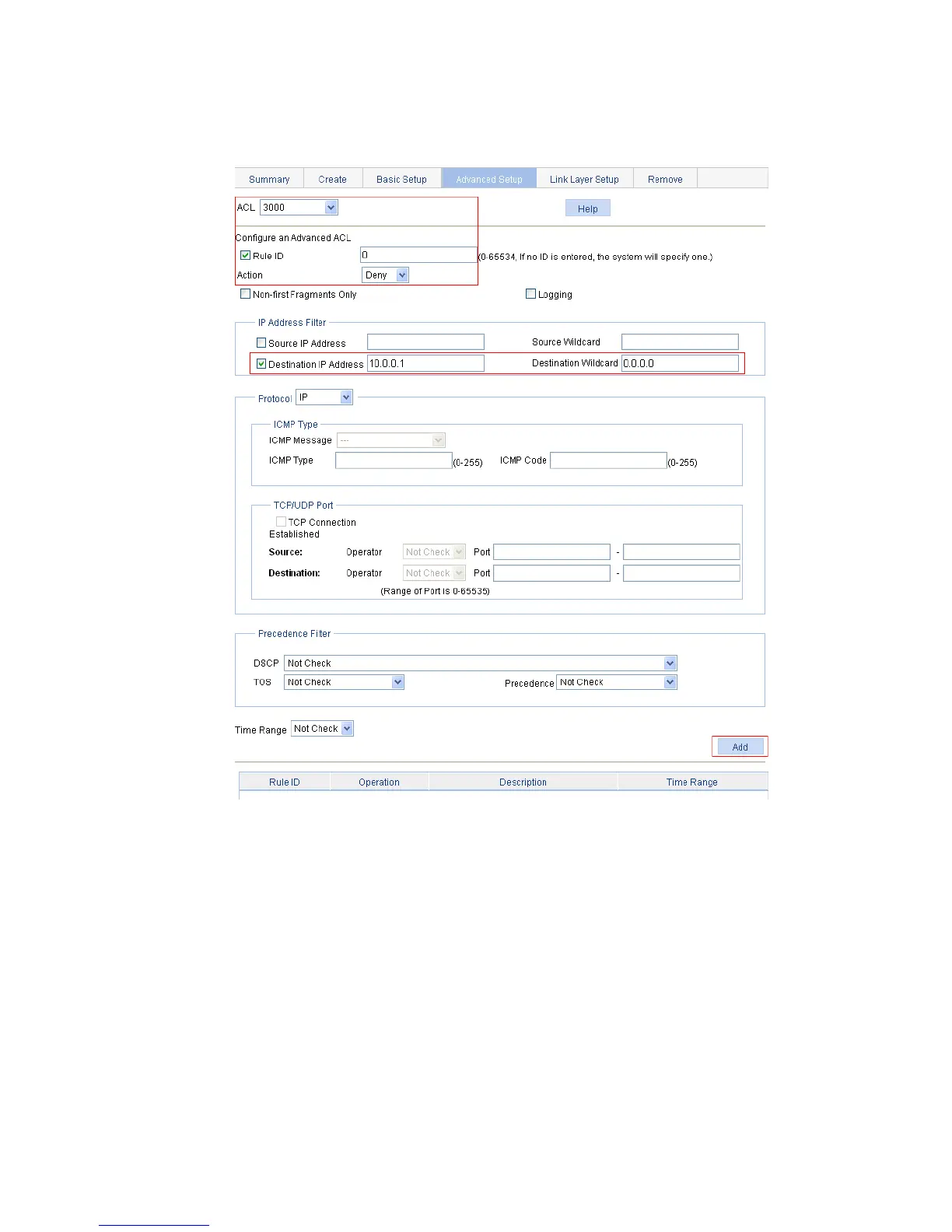

Figure 311 ACL rule configuration
 Select 3000 from the Select Access Control List(ACL) drop-down list.
 Select the Rule ID check box, and enter 0 as the rule ID.
 Select Deny as the operation action.

HP V1910 Switch Series Specifications

General

Product Series	V1910
VLAN Support	Yes
QoS	Yes
Ports	8, 24, or 48 10/100/1000 ports
MAC Address Table Size	8K entries
Power Supply	Internal power supply
Jumbo Frame Support	Yes
Operating Humidity	10% to 90% (non-condensing)
