341

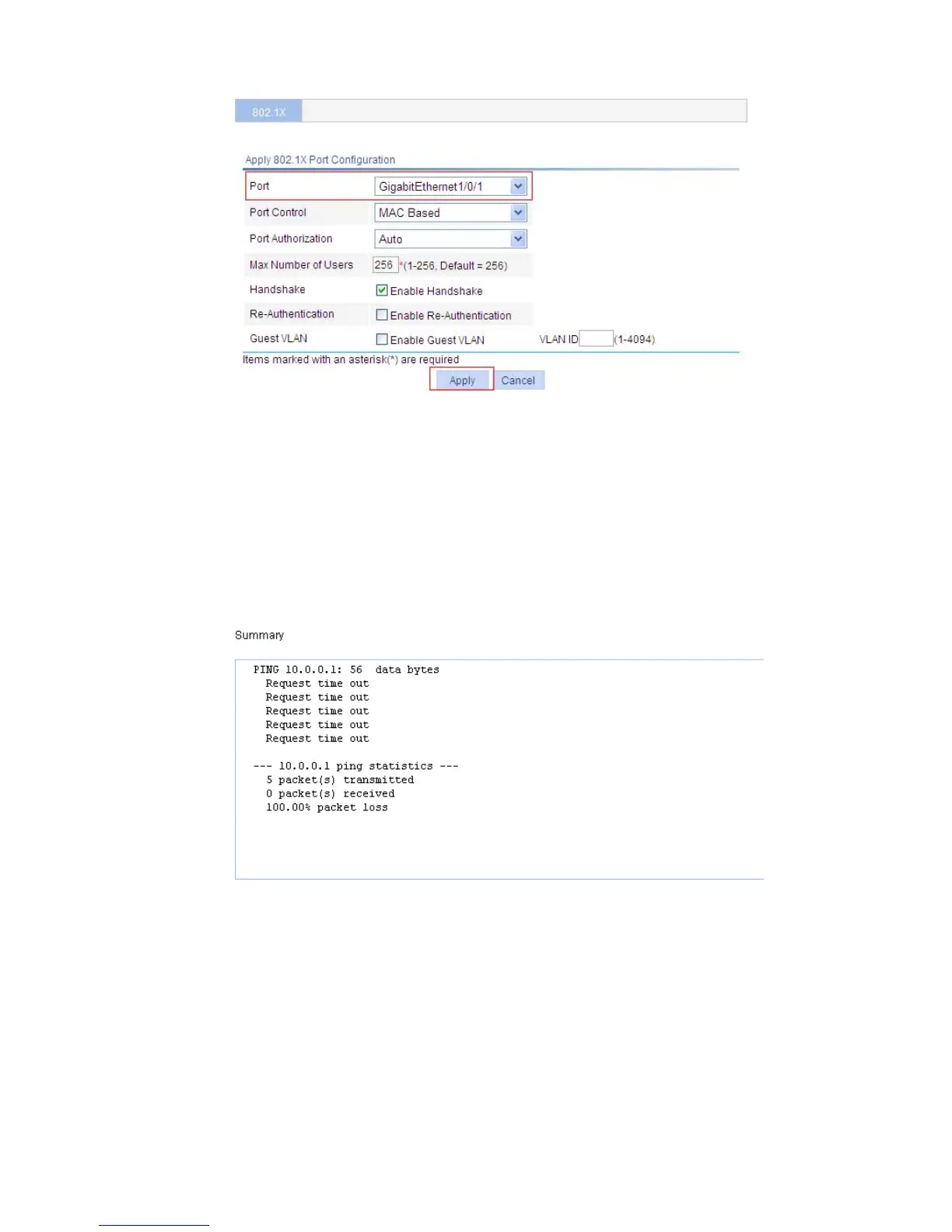

Figure 313 802.1X configuration of GigabitEthernet 1/0/1
Select GigabitEthernet1/0/1 from the port list.
Click Apply to finish the operation.
Configuration verification
# After the user passes authentication and gets online, use the ping command to test whether ACL 3000
takes effect.
From the navigation tree, select Network > Diagnostic Tools. The ping page appears.
Enter the destination IP address 10.0.0.1.
Click Start to start the ping operation.
Figure 314 shows the ping operation summary.
Figure 314 Ping operation summary
