HP V1910 Switch Series User Manual

446

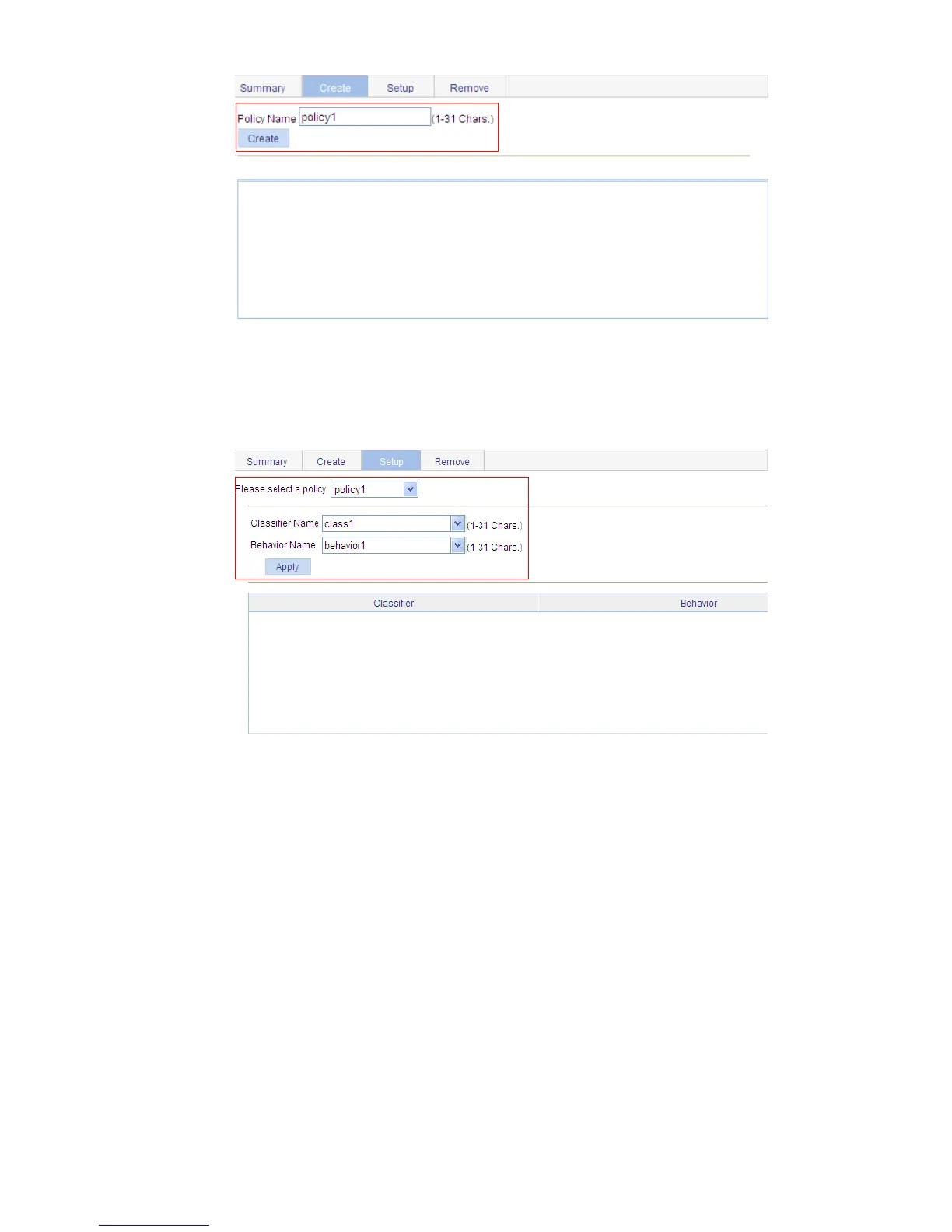

Figure 420 Create a policy
 Type the policy name policy1.
 Click Create.
# Configure classifier-behavior associations for the policy.
 Click Setup.
Figure 421 Configure classifier-behavior associations for the policy
 Select policy1.
 Select class1 in the Classifier Name drop-down list.
 Select behavior1 in the Behavior Name drop-down list.
 Click Apply.
# Apply the QoS policy in the inbound direction of GigabitEthernet 1/0/1.
 Select QoS > Port Policy from the navigation tree and click the Setup tab.
