71
Configuration procedure
# Set the rate of GigabitEthernet 1/0/4 to 1000 Mbps.
 Select Device > Port Management from the navigation tree, click the Setup tab to enter the page
shown in Figure 55, and make the following configurations:

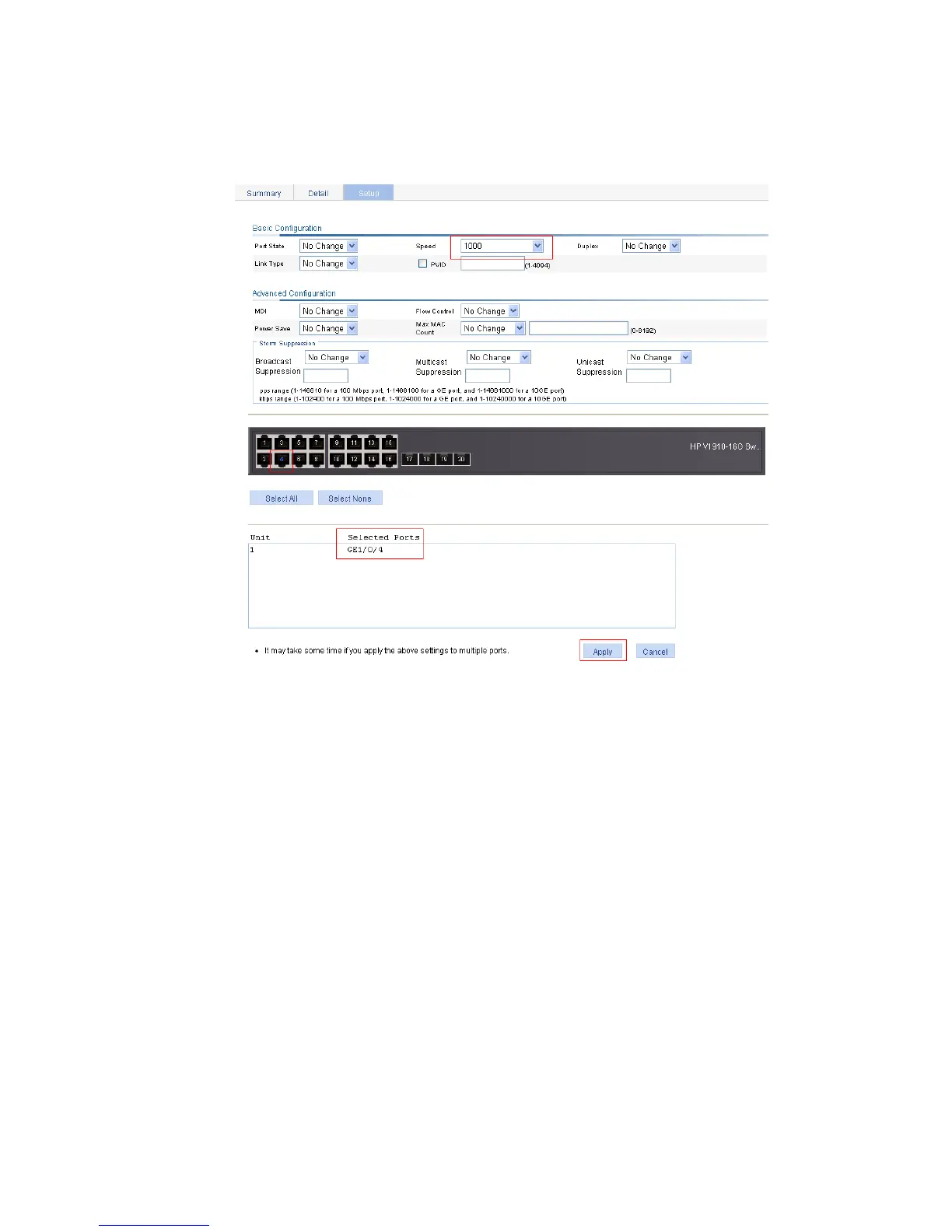

Figure 55 Configure the rate of GigabitEthernet 1/0/4
 Select 1000 in the Speed dropdown list.
 Select GigabitEthernet 1/0/4 on the chassis front panel.
 Click Apply.
# Batch configure the auto-negotiation rate range on GigabitEthernet 1/0/1, GigabitEthernet 1/0/2,
and GigabitEthernet 1/0/3 as 100 Mbps.
 Select Auto 100 in the Speed dropdown list on the page shown in Figure 56.
 Select GigabitEthernet 1/0/1, GigabitEthernet 1/0/2, and GigabitEthernet 1/0/3 on the chassis
front panel.
 Click Apply.
