HP V1910 Switch Series User Manual

78

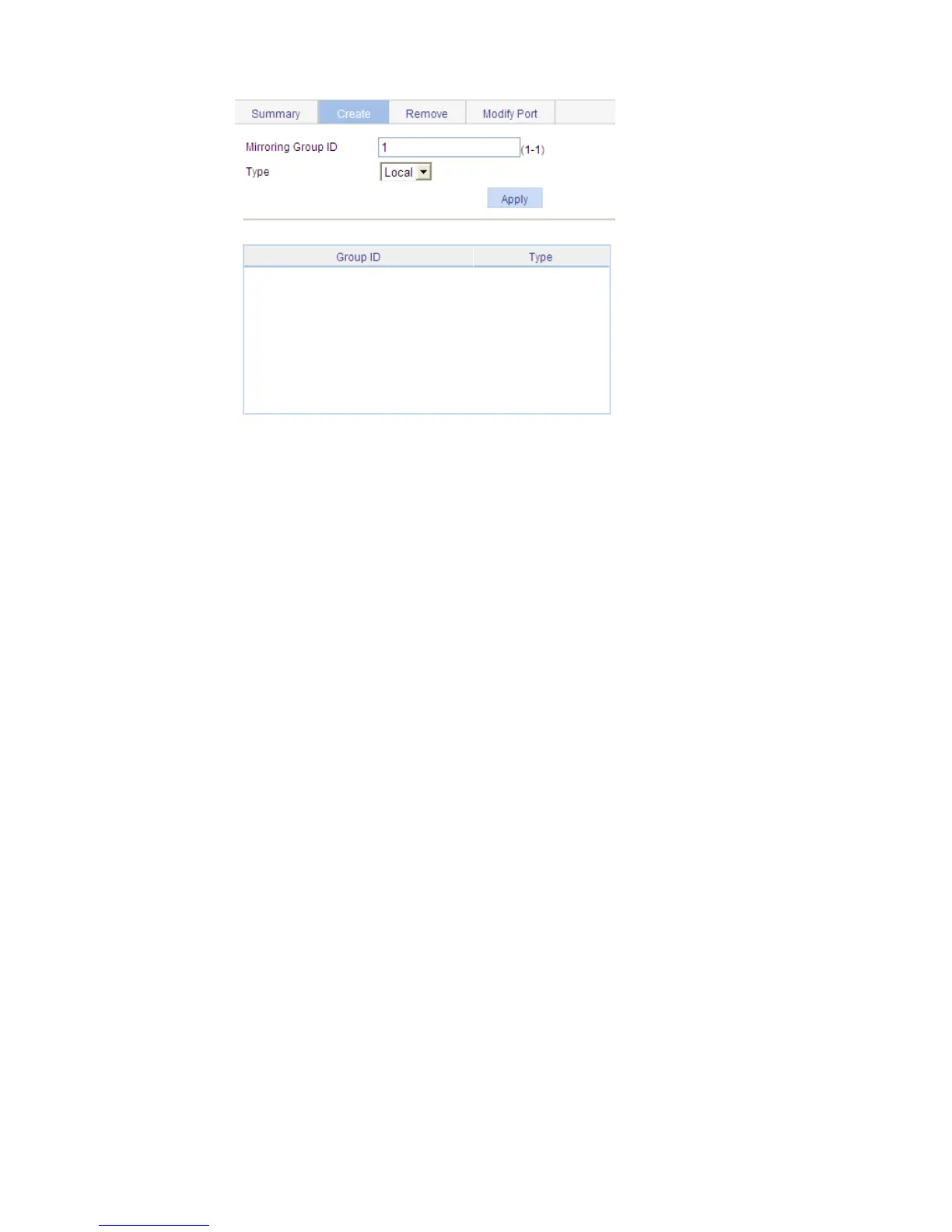

Figure 62 Create a local mirroring group
 Type in mirroring group ID 1.
 Select Local in the Type drop-down list.
 Click Apply.
# Configure the mirroring ports.
Click Modify Port to enter the page for configuring ports for the mirroring group, as shown in Figure 63.

HP V1910 Switch Series Specifications

General

Product Series	V1910
VLAN Support	Yes
QoS	Yes
Ports	8, 24, or 48 10/100/1000 ports
MAC Address Table Size	8K entries
Power Supply	Internal power supply
Jumbo Frame Support	Yes
Operating Humidity	10% to 90% (non-condensing)
