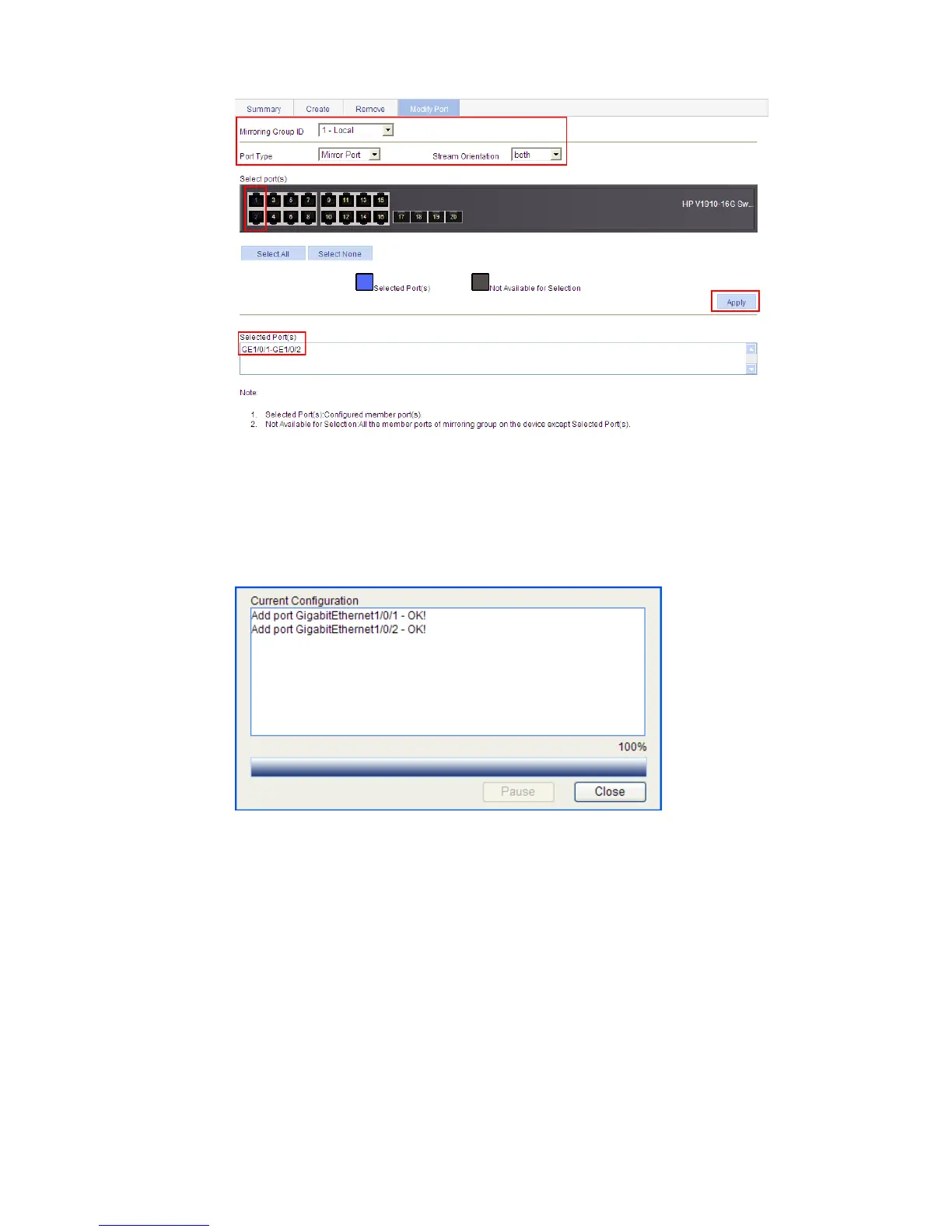

Figure 63 Configure the mirroring ports
Select 1 – Local in the Mirroring Group ID drop-down list.
Select Mirror Port in the Port Type drop-down list.
Select both in the Stream Orientation drop-down list.
Select GigabitEthernet 1/0/1 and GigabitEthernet 1/0/2 on the chassis front panel.
Click Apply. A configuration progress dialog box appears, as shown in Figure 64.
Figure 64 Configuration progress dialog box
After the configuration process is complete, click Close.
# Configure the monitor port.
Click Modify Port to enter the page for configuring ports for the mirroring group, as shown in Figure 65.
