(5) 12 V 2 A port (power input)

Power Port

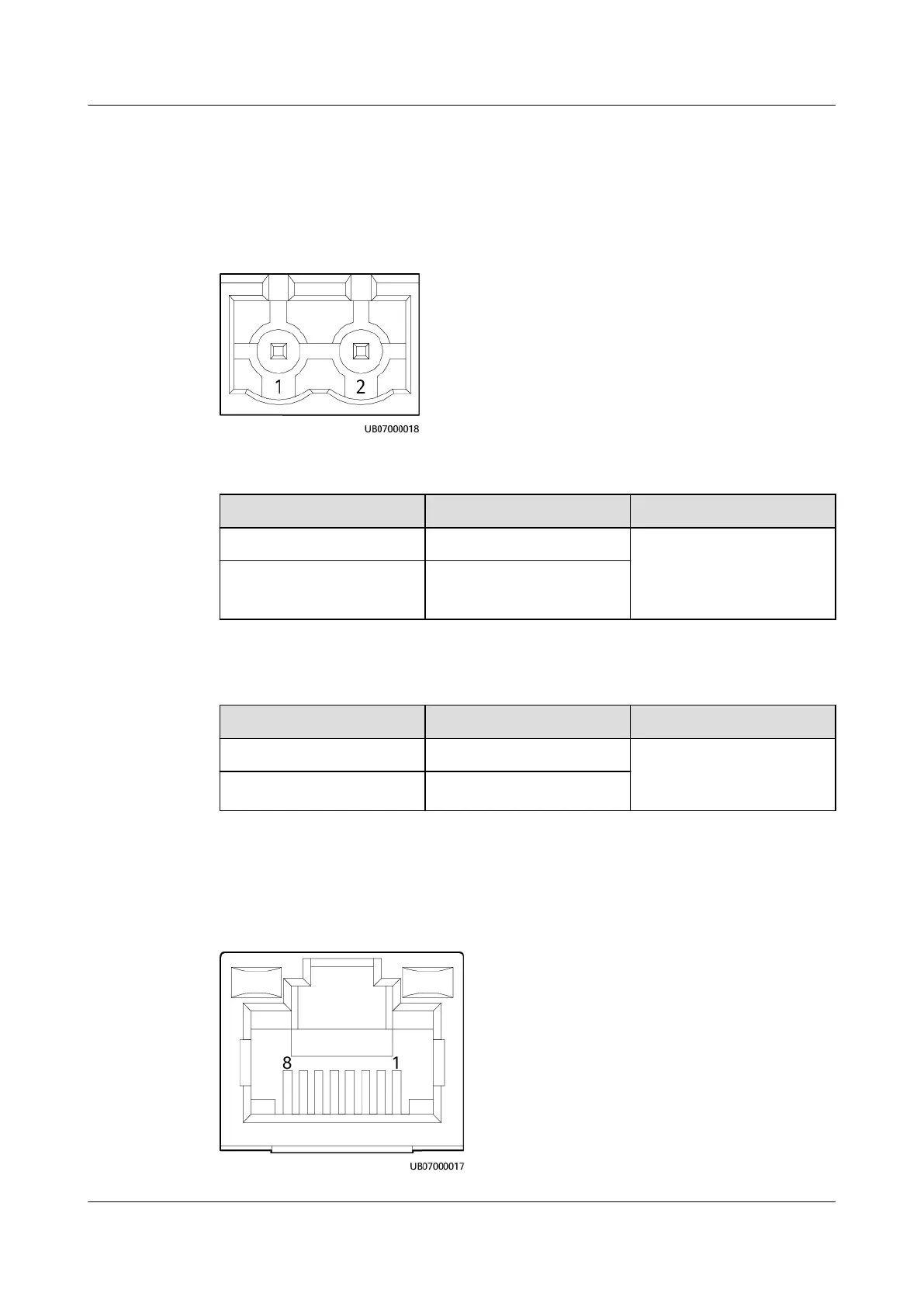

Figure 3-48 Power port pins

Table 3-73 12 V 2 A port pin denitions

Pin Denition Description

1 – An external power

module is adopted to

supply 12 V DC

operating voltage.

2 +

Table 3-74 –48 V, 0.5 A port pin denitions

Denition Description

1 + The system provides 48

V DC operating voltage

in this scenario.

2 –

PoE Port

Figure 3-49 PoE port pins
