G1E Programming Manual

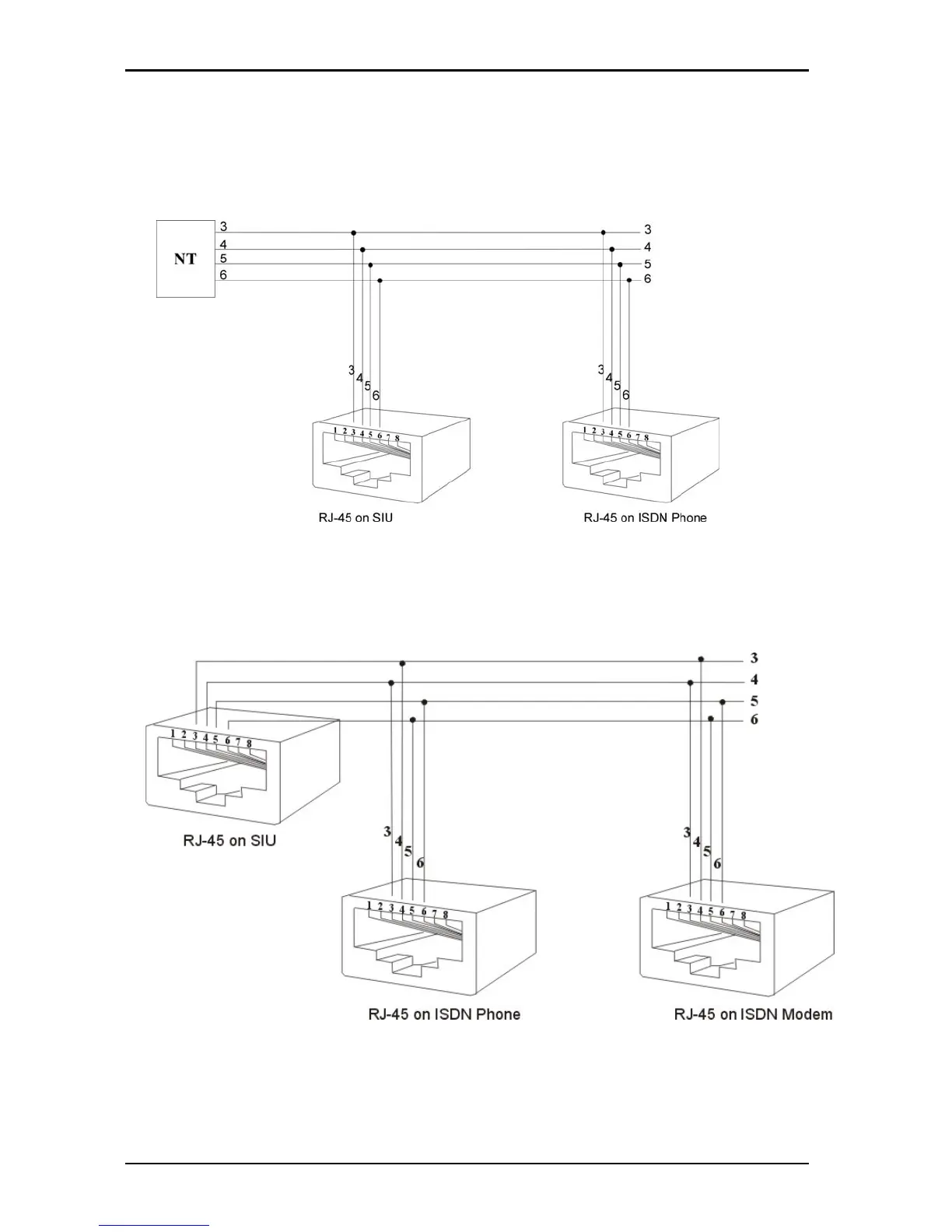

z T-Interface Connection:

If the user has programmed the ISDN interface of SIU to a T-Interface, the wiring should be:

z S-Interface Connection:

If the user has programmed the ISDN interface of SIU to a S-Interface, the wiring should be as the

following:
