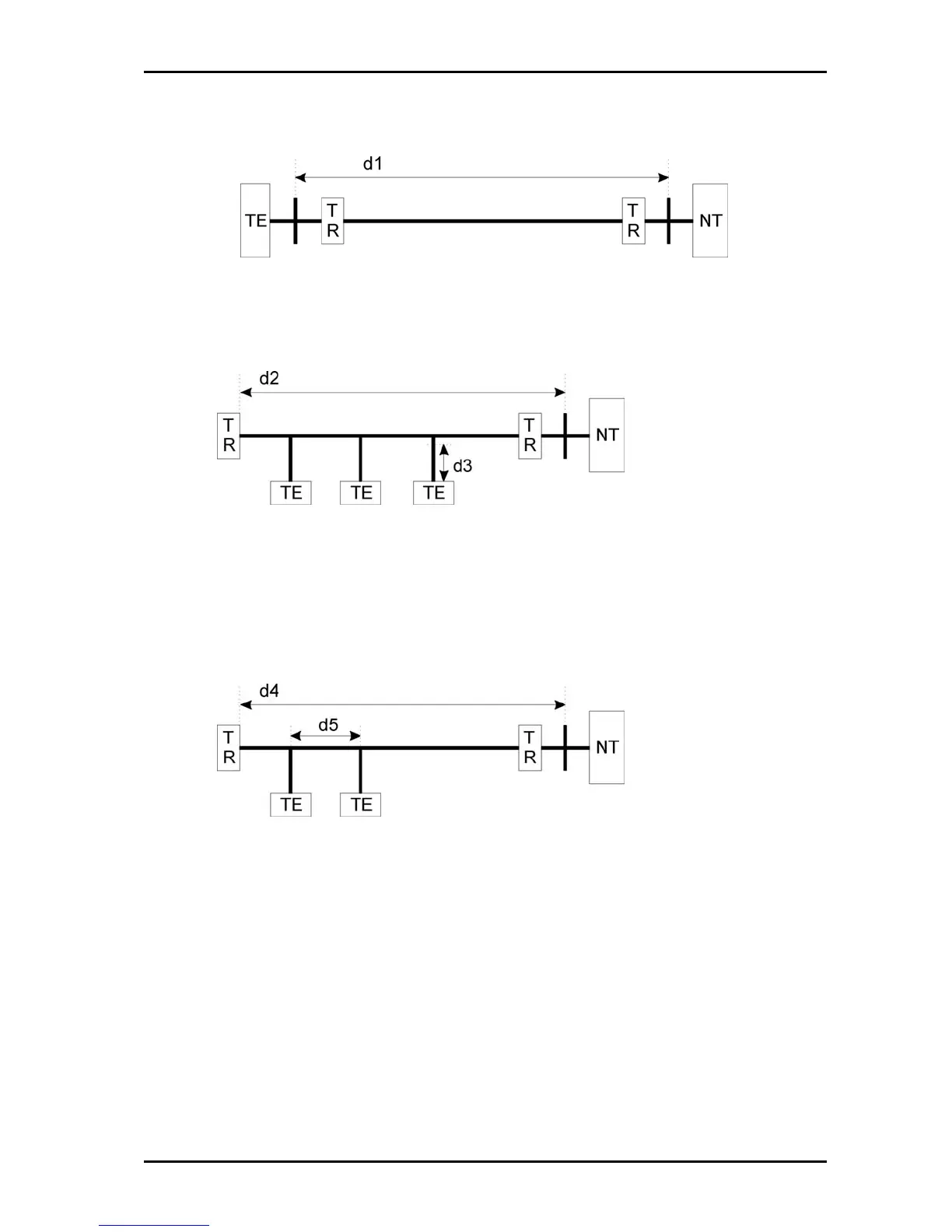

z Bus Configurations on the S/T Interface:
Point to Point:
d1: 750m ~ 1000m; Length limitation by attenuation of 6dB at 96kHz.
Short Passive Bus:
d2: 100m ~ 200m; Length limitation by round trip delay 10us to 14us, not by attenuation.
d3: Recommendation with a cord having a minimum length of 5m and not more than 10m.(5m≦
d3≦10m)
Extended Passive Bus:
d4: 500m ~ 800m; Length limitation by round trip delay 10us to 14us, not by attenuation.
d5: 25m ~ 50m; Length limitation between TE’s by differential round trip delay of 2us.
