IFR COM-120C

A-3

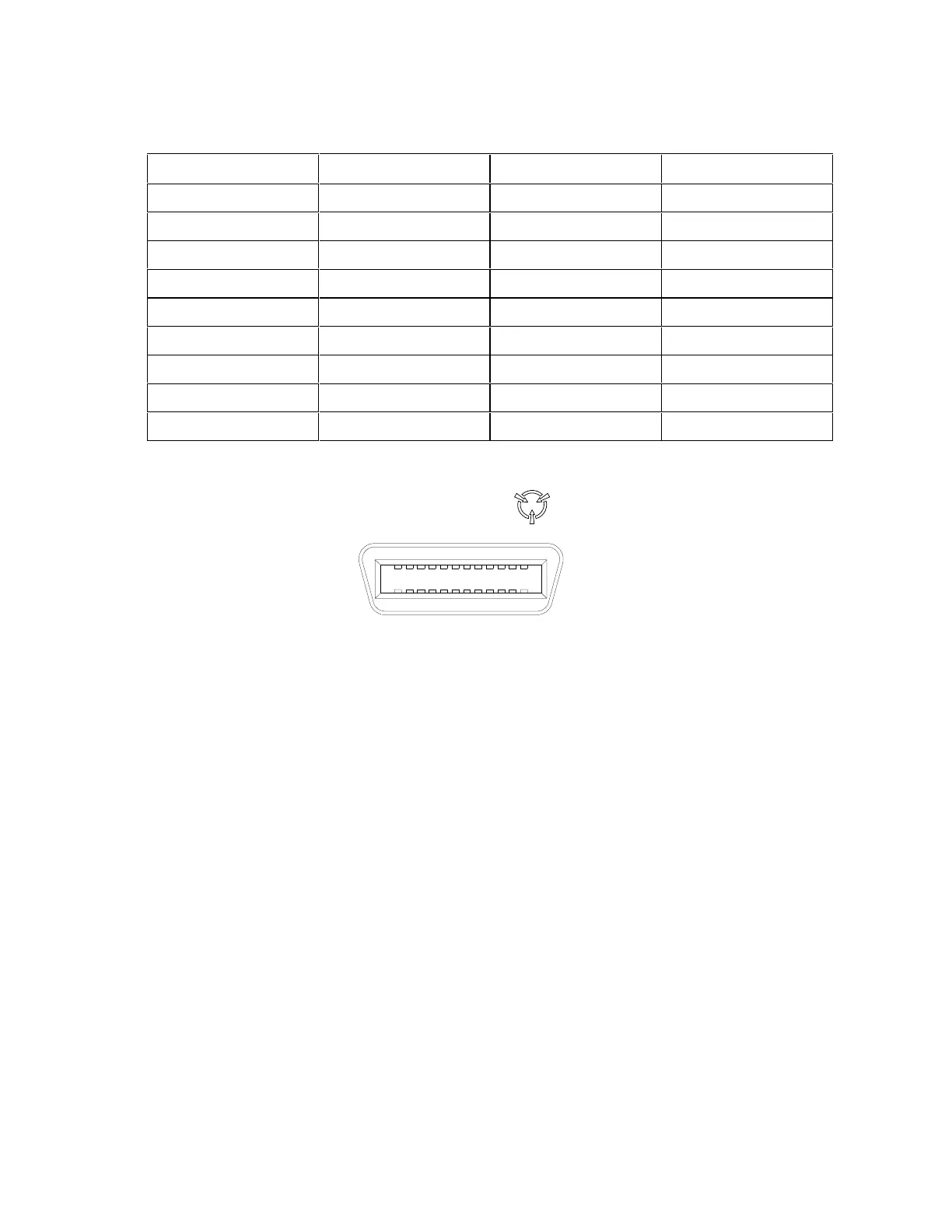

A-3 PIN-OUT TABLE FOR GPIB CONNECTOR
PIN NUMBER ASSIGNMENT PIN NUMBER ASSIGNMENT
1DIO 110SRO
2 DIO 2 11 ATN
3 DIO 3 12 Digital GND
4 DIO 4 13 DIO 5
5 EOI 14 DIO 6
6DAV15DIO 7
7 NFRD 16 DIO 8
8 NDAC 17 REN
9 IFC 18-24 Digital GND
Pin-Out for GPIB Connector Table
IEEE
1
12
13
24
8618016
GPIB Pin Identification
Use of the GPIB Connector is in compliance with ANSI/IEEE Standard 488.2-1987.
