IFR COM-120C

A-4

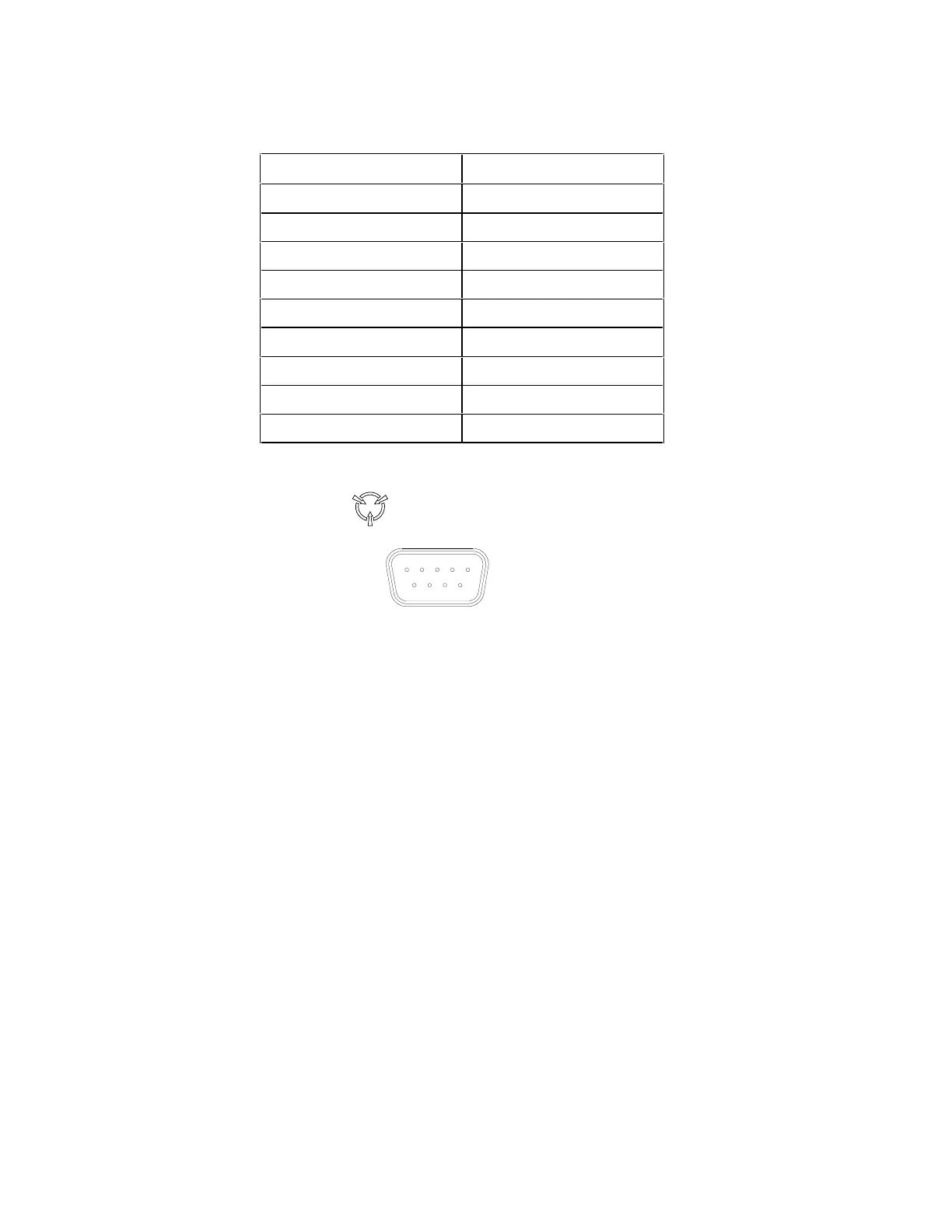

A-4 PIN-OUT TABLE FOR RS-232 CONNECTOR
PIN NUMBER ASSIGNMENT
1 4.7 kΩ + 15 Vdc
2TX DATA
3RX DATA
4N/C
5 Digital GND
6 4.7 kΩ + 15 Vdc
7CTS
8RTS
9N/C
Pin-Out for RS-232 Connector Table
RS-232
15
96
8618017
RS-232 Connector Pin Identification
