Take a snapshot and fetch data in the virtual front panel
You can take a snapshot of the Series 2280 LCD display and fetch buffered test data on the web
page.
To take a snapshot:
1. From the navigation bar of the web interface home page, select Virtual Front Panel.
2. If you are prompted for a password, enter it and select Submit. The default password is admin.
3. In the left upper corner of the virtual front panel, select Operation. The Snapshot and Fetch Data
options are displayed.

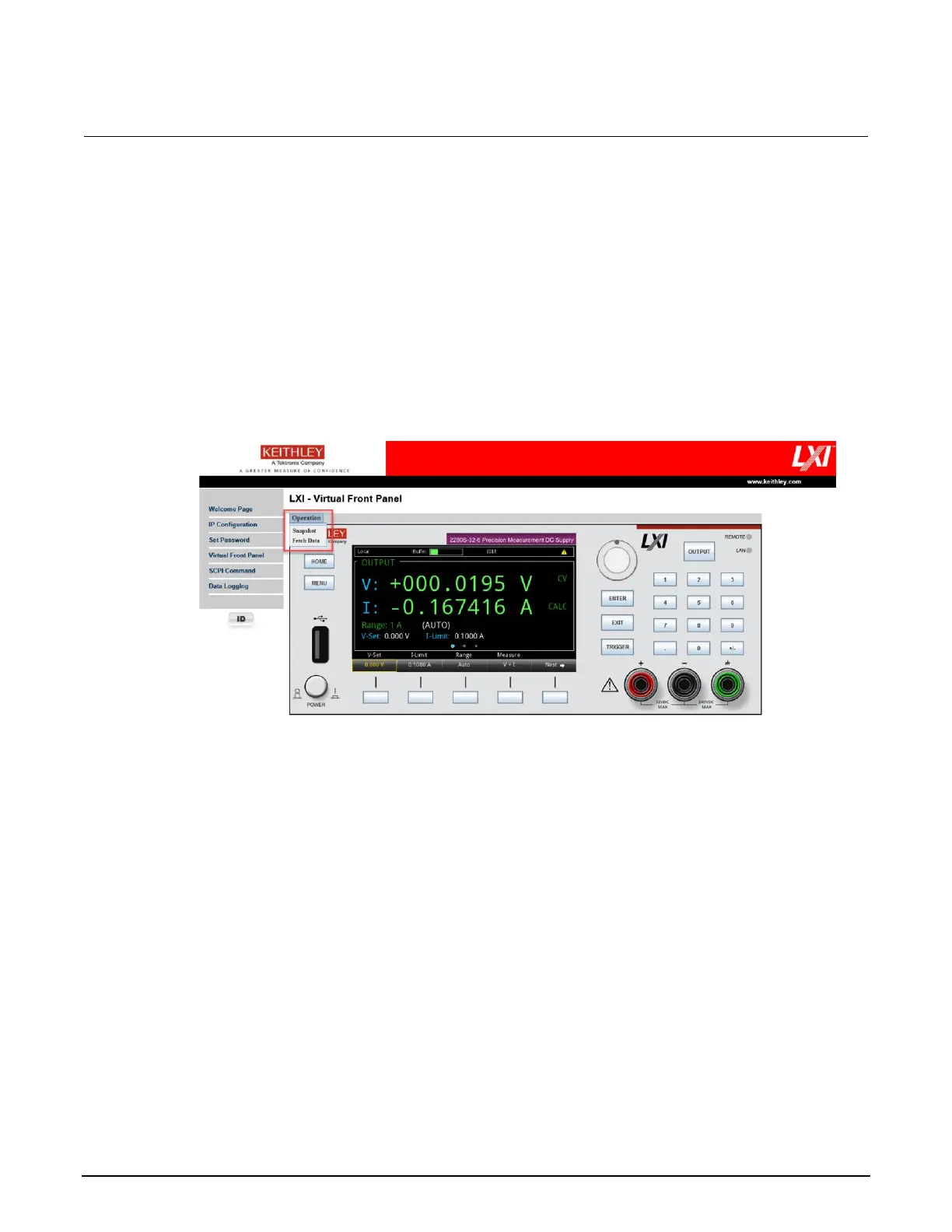

Figure 41: Series 2280 Virtual Front Panel
4. Select Snapshot. A dialog box indicating Screen Snapshot copied to clipboard is
displayed.
5. Select OK.
6. Paste the snapshot into your report.
