Series 2280 Precision DC Power Supply Reference Manual Section 2: General operation
077085503 / March 2019 2-59
To get buffered data:
1. From the navigation bar of the web interface home page, select Virtual Front Panel.
2. If you are prompted for a password, enter it and select Submit. The default password is admin.
3. In the left upper corner of the virtual front panel, select Operation. The Snapshot and Fetch Data
options are displayed.

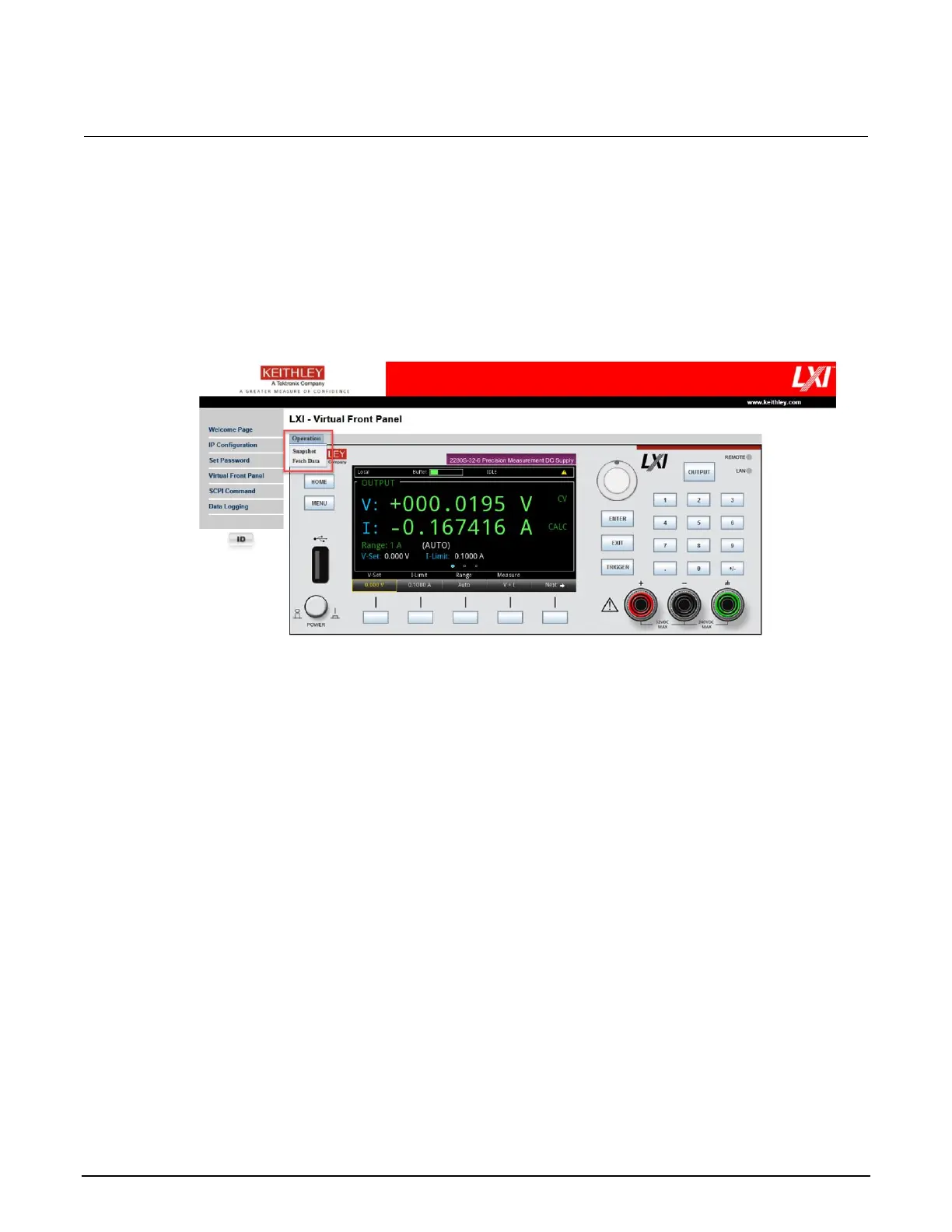

Figure 42: Series 2280 Virtual Front Panel
4. Select Fetch Data. A dialog box indicating Copying completed: 100% is displayed.
5. Select OK.
6. Paste the data into your report.
