Keithley 2651A Reference Manual

Model 2651A High Power System SourceMeter® Instrument Reference Manual Section 3: Functions and features
2651A-901-01 Rev. A / March 2011 3-35

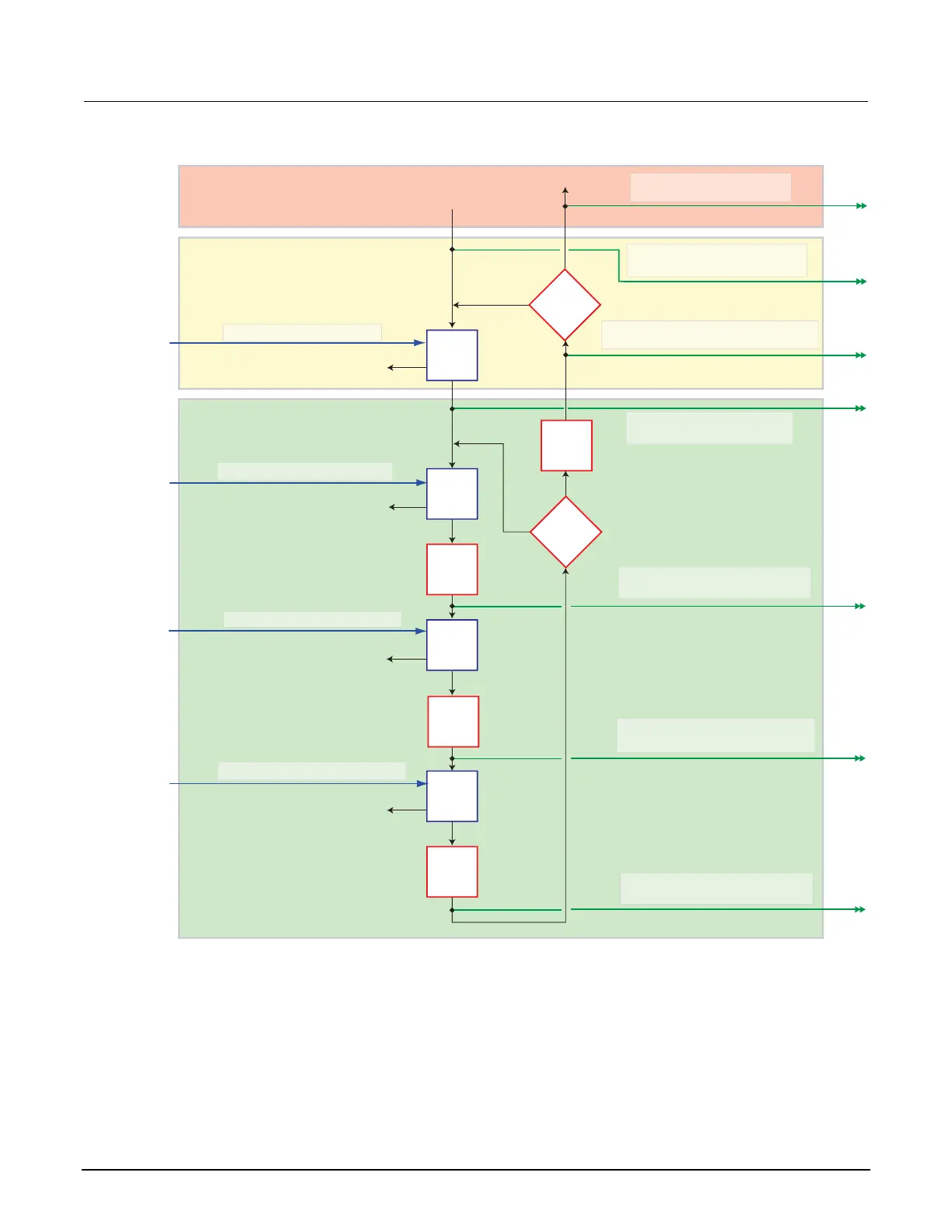

Figure 43: Remote trigger model: Normal (synchronous) mode
Idle
smuX.trigger.initiate()
Configure and enable sweep source or sweep
measure actions, then send:
Arm event overrun
Source event overrun
Measure event overrun
End pulse event overrun
Arm layer
Trigger layer
No
No
Yes
Yes
Arm
event
detector
Source
action
End
sweep
action
Another
arm?
Another
trigger?
Measure
action
End
pulse
action
Measure
event
detector
End pulse
event
detector
Source
event
detector
smuX.trigger.IDLE_EVENT_ID
Idle event
smuX.trigger.SWEEPING_EVENT_ID
Sweeping event
smuX.trigger.SWEEP_COMPLETE_EVENT_ID
Sweep complete event
smuX.trigger.ARMED_EVENT_ID
Armed event
Source complete event
smuX.trigger.SOURCE_COMPLETE_EVENT_ID
smuX.trigger.PULSE_COMPLETE_EVENT_ID
Pulse complete event
smuX.trigger.MEASURE_COMPLETE_EVENT_ID
Measure complete event
smuX.trigger.arm.stimulus
smuX.trigger.source.stimulus
smuX.trigger.endpulse.stimulus
smuX.trigger.measure.stimulus
