Fault Hunter 18
Keysight InfiniiVision HD3-Series Oscilloscopes User's Guide 241
5 Select the Duration, that is, whether you want to run the tests for a few minutes,
an hour, eight hours, or two days.
6 Select Run All Tests.

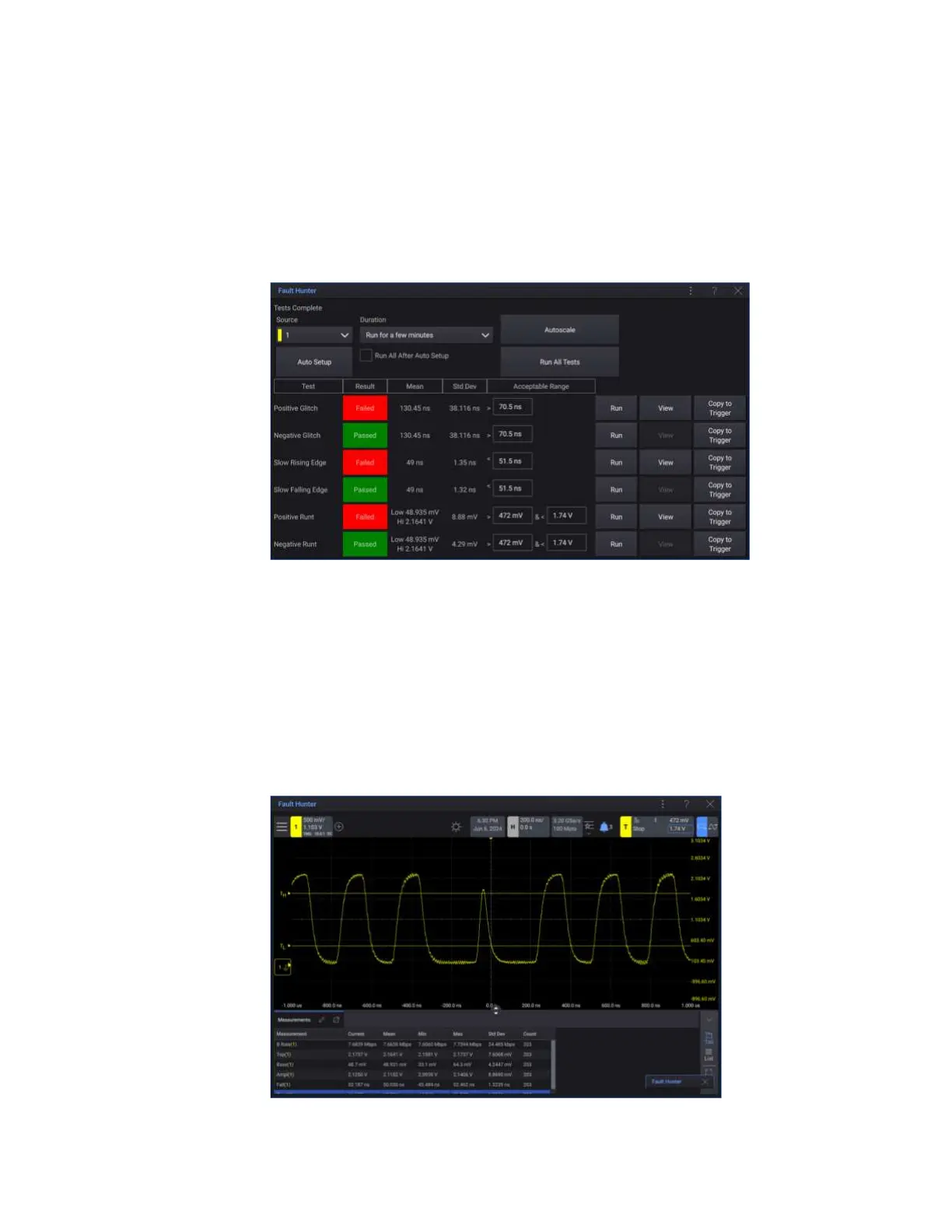

When the run is completed, you will see "Passed" or "Failed" test results.
The Result column shows "Failed" when that type of anomaly was found or
"Passed" when that type of anomaly was not found.
The Result column shows "Not Run Yet" if the test cannot be run for some
reason. For example, if the range of the pulse is less than what can be detected
by the triggering hardware, "Not Run Yet" will appear.
7 To view an anomaly, select the associated View button.
The Fault Hunter View dialog box shows a screen capture of the anomaly.
