357
Appendix

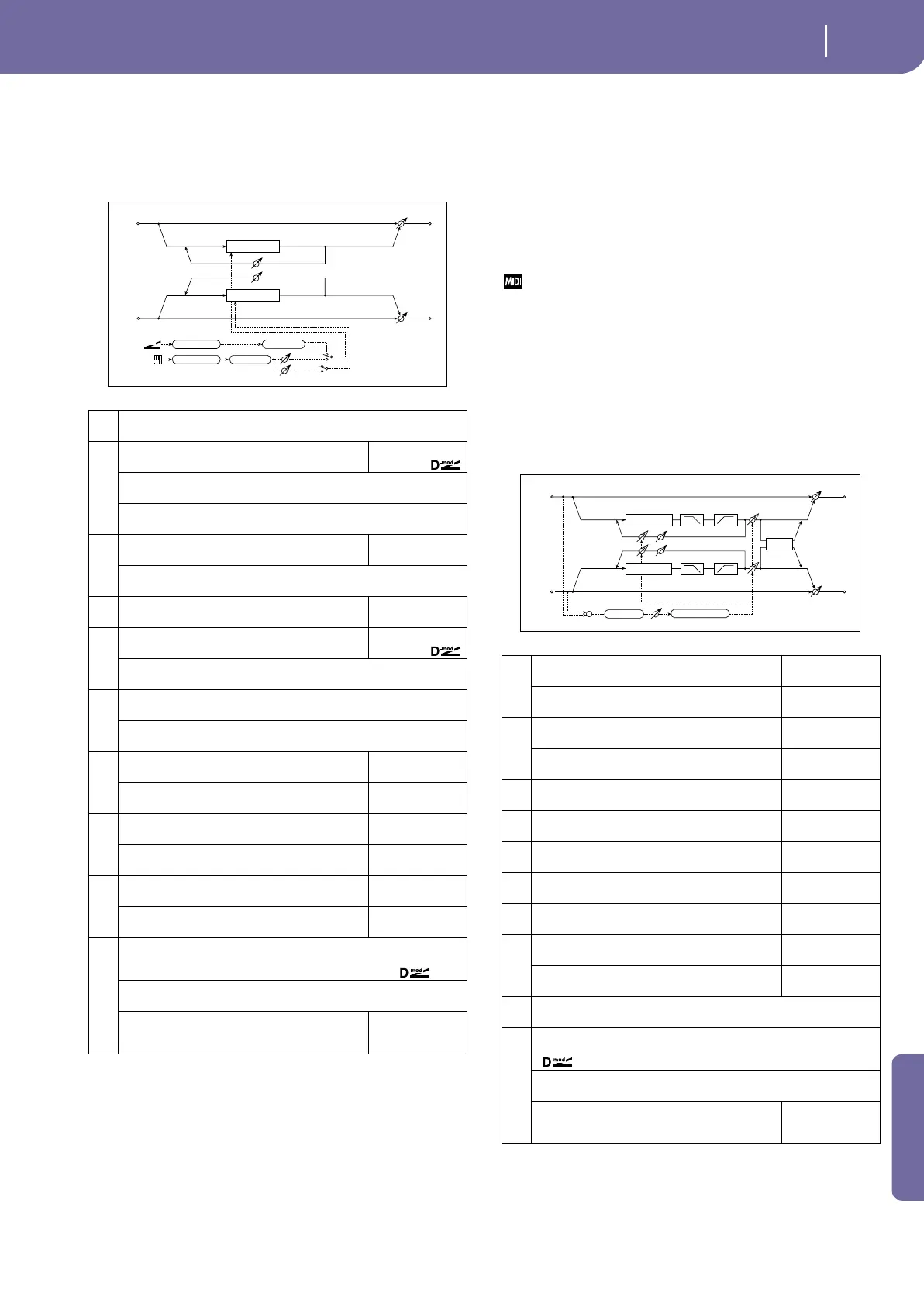

046: Modulation Delay
This stereo delay uses an LFO to sweep the delay time. The pitch
also varies. You will obtain a delay sound with swell and shim-
mering. You can also control the delay time using a modulation
source.
b: D-mod Modulation
When the modulation source is used for control, this parameter
reverses the left and right modulation direction.
e: LFO Sync, e: Src,
f: L LFO Phase [degree], f: R LFO Phase [degree]
The LFO can be reset via a modulation source.
The “Src” parameter sets the modulation source that resets the
LFO. For example, you can assign Gate as a modulation source so
that the sweep always starts from the specified point.
“L LFO Phase” and “R LFO Phase” set the phase obtained when
the left and right LFOs are reset. In this way, you can create
changes in pitch sweep for the left and right channels individu-
ally.
The effect is off when a value of the modulation source speci-
fied in the “Src” parameter is 63 or smaller, and the effect is on
when the value is 64 or higher. The LFO is triggered and reset to
the “L LFO Phase” and “R LFO Phase” settings when the value
changes from 63 or smaller to 64 or higher.
047: Dynamic Delay
This stereo delay controls the level of delay according to the
input signal level. You can use this as a ducking delay that applies
delay to the sound only when you play keys at a high velocity or
only when the volume level is low.
a: Control Target
This parameter selects no level control, delay output control
(effect balance), or feedback amount control.
a
Modulation Mode LFO, D-mod
Switches between LFO modulation control and modulation source control
b
D-mod Modulation
Reversed L/R control by modulation source
L/R:+/+, L/R:+/–
☞,
Src Off...Tempo
Selects the modulation source that controls delay time
Response 0...30
Sets the rate of response to the modulation source
c
LFO Waveform
Selects LFO Waveform
Triangle, Sine
LFO Shape –100...+100
Determines how much the LFO waveform is changed
☞ Fx:020
d
LFO Frequency [Hz]
Sets the LFO speed
0.02...20.00Hz
e
LFO Sync
Switches LFO reset off/on
Off, On
☞,
Src Off...Tempo
Selects the modulation source that resets the LFO
f
L LFO Phase [degree] –180...+180
Sets the phase obtained when the left LFO is reset
☞
R LFO Phase [degree] –180...+180
Sets the phase obtained when the right LFO is reset
☞
g
L Depth
Sets the depth of the left LFO modulation
0...200
R Depth
Sets the depth of the right LFO modulation
0...200
h
L Delay Time [msec]
Sets the left delay time
0.0...500.0
R Delay Time [msec]
Sets the right delay time
0.0...500.0
i
L Feedback
Sets the feedback amount of left delay
–100...+100
R Feedback
Sets the feedback amount of right delay
–100...+100
j
Wet/Dry –Wet...–1:99, Dry, 1:99...Wet
Table , “Sets the balance between the effect and dry sounds,” on page 330
☞ Fx:010,
Src Off...Tempo
Table , “Selects the modulation source of the effect balance,” on page 330
Amt
Table , “Sets the modulation amount of the effect bal-
ance,” on page 330
–100...+100
Left
Right
Feedback
LFO Phase
Wet / Dry
Wet / Dry
Stereo In - Stereo Out
LFO: Tri / Sine
Modulation Mode
D-mod
LFO
D
-mod
Delay
Delay
L/R: +/+ +/–
LFO Shape
Response
LFO Sync
a
Control Target
Selects from no control, output, and feedback
None, Out, FB
☞
Polarity
Reverses level control
+, –
☞
b
Threshold
Sets the level to which the effect is applied
0...100
☞
Offset
Sets the offset of level control
0...100
☞
c
Attack
Sets the attack time of level control
1...100
☞
d
Release
Sets the release time of level control
1...100
☞
e
L Delay Time [msec]
Sets the delay time for the left channel
0.0...680.0msec
f
R Delay Time [msec]
Sets the delay time for the right channel
0.0...680.0msec
g
Feedback
Sets the feedback amount
–100...+100
h
High Damp [%]
Sets the damping amount in the high range
0...100%
☞ Fx:043
Low Damp [%]
Sets the damping amount in the low range
0...100%
☞ Fx:043
i
Spread –100...+100
Sets the width of the stereo image of the effect sound
☞ Fx:043
j
Wet/Dry Dry, 1:99...99:1, Wet
Table , “Sets the balance between the effect and dry sounds,” on page 330
Src Off...Tempo
Table , “Selects the modulation source of the effect balance,” on page 330
Amt
Table , “Sets the modulation amount of the effect bal-
ance,” on page 330
–100...+100
Delay
Left
Right
Feedback
Spread
Wet / Dry
Wet / Dry
Stereo In - Stereo Out
High Damp Low Damp
High Damp
Low Damp
Threshold
+
Delay
FB
Out
Control Target
Attack, Release
Envelope
