8.8 Using the safety chain
Pos: 28.52.2 /BA/I nbetriebnahme/Sic herheitskette USA/W ARNUNG - Falsch dimensionierte Sicherungskette verwendet mit Variante @ 18 0\mod_1376576652355_ 78.docx @ 1547873 @ 3 @ 1
WARNING!
When using a wrongly dimensioned safety chain, the safety chain may tear if the
machine loosens unintentionally. This can result in serious accidents.
• Always use a safety chain with a minimum tensile strength of 178 kN (40.000 lbf).
Pos: 28.52.3 /BA/I nbetriebnahme/Sic herheitskette USA/Hin weis Sicherheitske tte Länderabhängig @ 6\ mod_1214999654856_78. docx @ 97933 @ 2 @ 1
Note
Using the safety chain
Attachment of the safety chain is not stipulated in all countries.
Pos: 28.52.4 /BA/I nbetriebnahme/Sic herheitskette USA/Si cherheitskette ver wenden @ 6\mod_1214542109 132_78.docx @ 94779 @ @ 1
The safety chain serves as an additional safety precaution for trailed devices, should they come
loose from the swing drawbar during transport. Attach the safety chain with the respective
mounting parts to the swing drawbar holder of the tractor or to another specified coupling point.
The safety chain should have enough play when driving around curves.
Pos: 28.52.5 /Beipac ks/Allgemein/Sic herheitskette 178 kN/S icherungskette mon tieren BiG Pack Bild @ 147\mod _1361184126131_78.doc x @ 1320037 @ @ 1
2
1

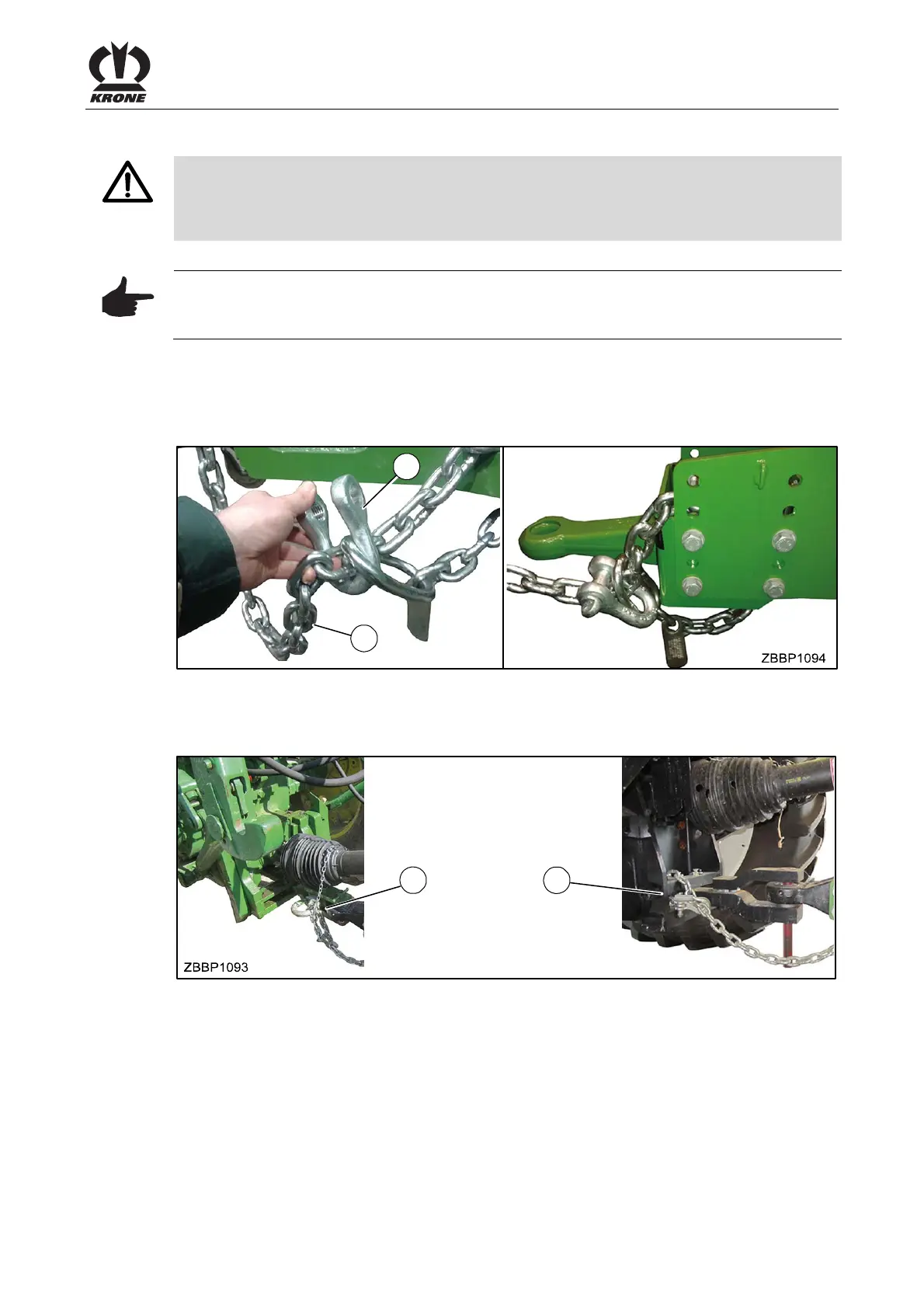

Fig. 100
Pos: 28.52.6 /Beipac ks/Allgemein/Sic herheitskette 178 k N/Sicherheitskette mit Schäkel an Großpackenpr esse montieren Text @ 149\ mod_1361521338690_7 8.docx @ 1332633 @ 12 @ 1
• Install safety chain (1) with shackle (2) on the big pack baler.
Pos: 28.52.7 /Beipac ks/Allgemein/Sic herheitskette 178 kN/S icherungskette an den Tra ktor montieren Bild @ 147\ mod_1361181563288_ 78.docx @ 1319688 @ 2 @ 1
b
a
Fig. 101
Pos: 28.52.8 /Beipac ks/Allgemein/Sic herheitskette 89k N/Sicherheitskette a m Traktor montieren Text @ 150\ mod_1362048347829_ 78.docx @ 1343318 @ @ 1
• Install safety chain (1) on an eligible position (for example: a or b) on the tractor.
