13.2.1 Setting the Transfer Mechanism
After the first few kilometres of driving, the transfer mechanisms and the brake linings of the
brake drum will have adjusted. The play resulting from this must be compensated for.
Pos: 36.49.12 /BA/W artung/Bremsanlage/ Einstellung am Gestäng esteller_BigPac k @ 24\mod_1241614590081_ 78.docx @ 246921 @ 2 @ 1
Checking the adjustments on the linkage setter

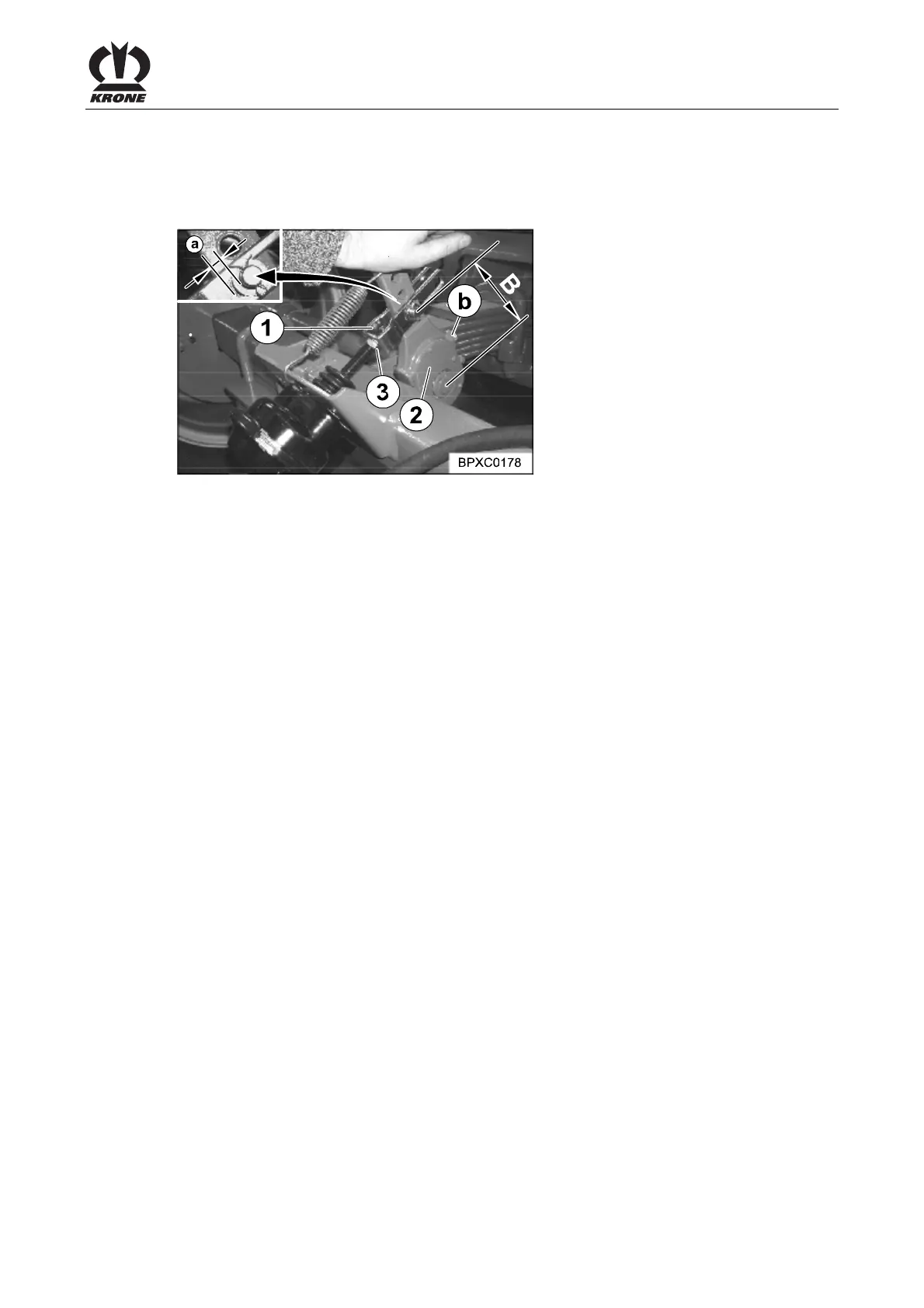

Fig. 194
• Every 200 operating hours
Activate the linkage setter manually in the pressure direction. The setting of the linkage setter
must be changed if there is a clear path (a) of max. 35 mm.
The setting can be made with the adjusting screw (b) of the linkage setter.
Set clear path "a" to 10 - 12 % of the connected brake lever length "B", for example lever length
B=125 mm = clear path 12 - 15 mm.
