11.6.2 Pretension of the twine bar shaft

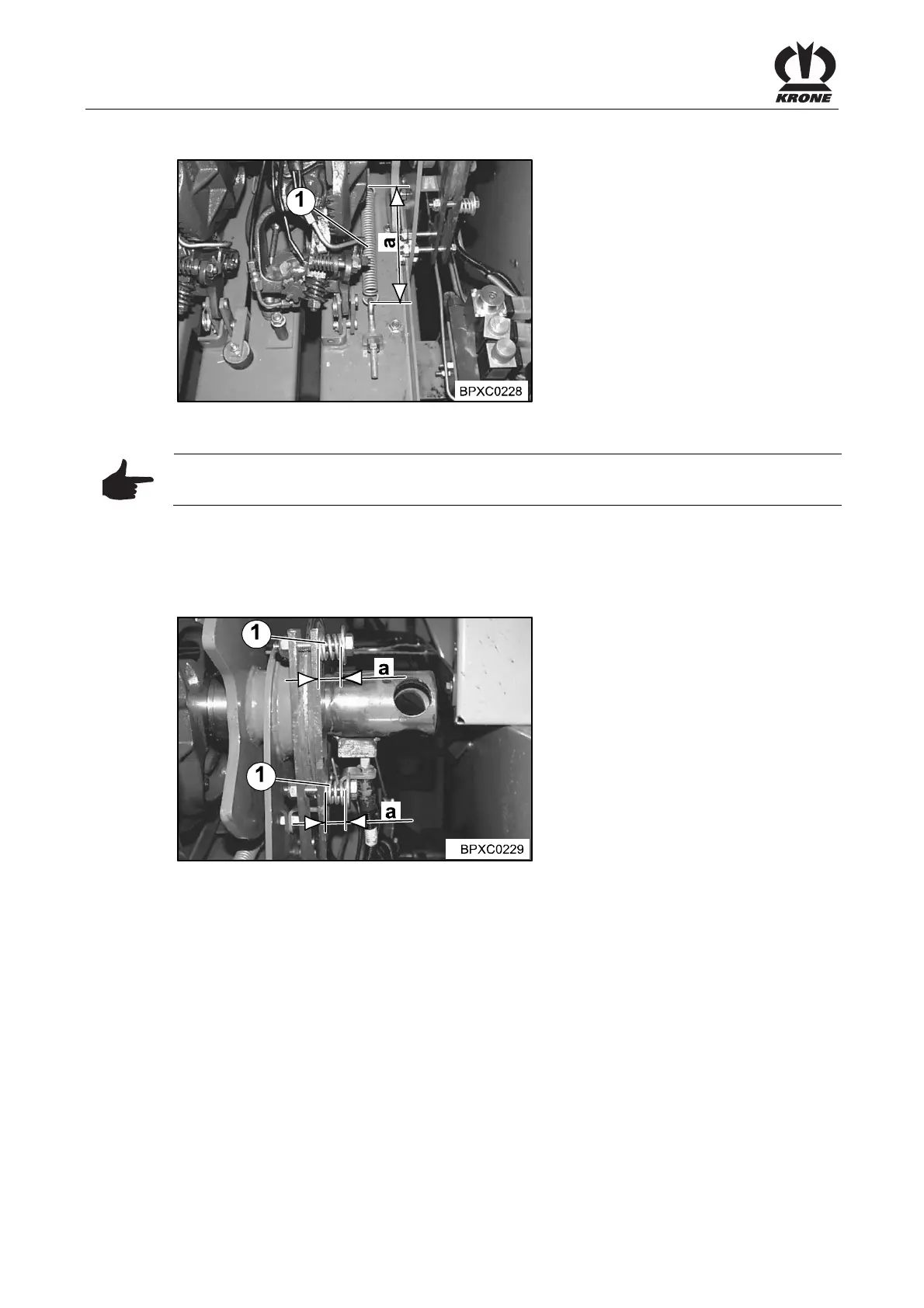

Fig. 145
Note
The setting of the pretension of the twine bar shaft must be in zero position for the tying.
Pre-tension the twine bar shaft spring (1) until dimension a is = 220 mm between the eyes of the
spring (1).
Pos: 34.59 /BA/Einste llungen/Großpackenpr esse/Garnriege l/Einstellung der Knoterwellenbre mse 22 mm @ 24\mod_1240987674977_ 78.docx @ 241423 @ 3 @ 1
11.6.3 Setting the knotter shaft brake
Fig. 146
Pre-tension the springs (1) on the knotter shaft brake until dimension a is = approx. 22 mm.
