Settings
207
Pos: 34.55 /BA/Einste llungen/Großpackenpr esse/Garnriege l/Einstellung des Garnriegels Bild (Doppe lknoter) @ 108\mod_13 34757450278_78.doc x @ 970822 @ 33 @ 1

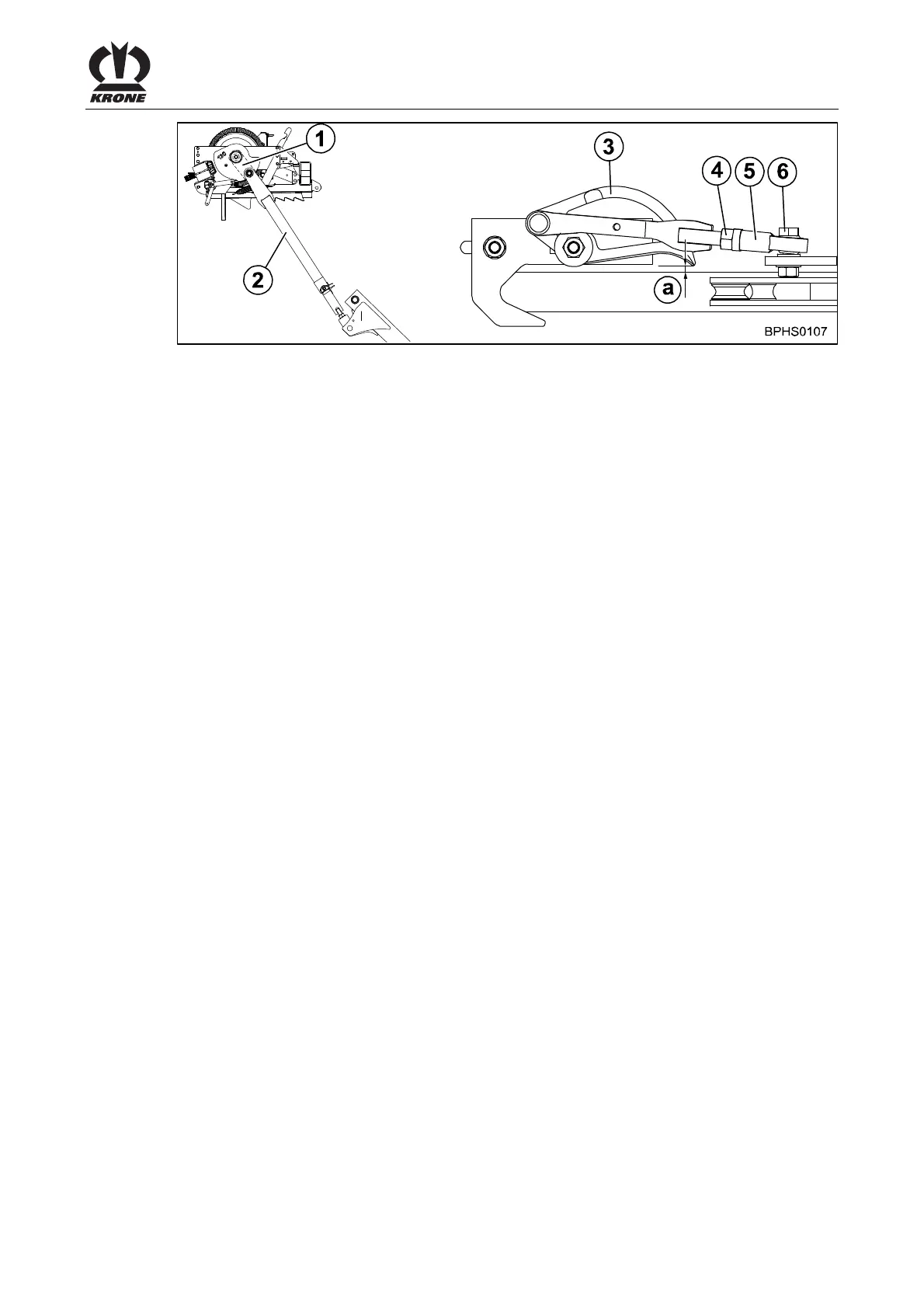

Fig. 144
Pos: 34.56 /BA/Einste llungen/Großpackenpr esse/Garnriege l/Einstellung des Garnriegels Maß a 7 - 12 mm 4x4 (Doppelk noter) @ 108\mod_1334 757568605_78.docx @ 970861 @ @ 1
Checking / setting dimension “a”
• Release the flywheel brake and manually rotate the needle yoke on the flywheel mass in
the direction of rotation until the needle yoke is in the rest position (i.e. the crank arm (1)
and the needle connecting rod (2) are in the extended position)
• Apply the flywheel brake to block tying in this position
• Manually press twine bar (3) on the tip towards the channel slot
In this position the side distance “a” between the tip of the twine bar and channel slot must be
“a”= 7 – 12 mm.
If this is not the case:
• Loosen counter nuts (4) and screw (6) on the joint bearing
• Turn the control linkage assembly (5) until dimension "a"= 7 - 12 mm
• Tighten counter nuts (4) and screw (6).
• The twine bars must be freely movable in this position.
• Swing knotter down and secure with screw
