Krone Big Pack 4x4 - Moving baling ram into position

Settings
223
Pos: 34.79.22 /BA/E instellungen/Großpac kenpresse/Pressko lbeneinstellung/ Einstellung Raff er BigPack 4x4 T2 @ 107\mod_1334 649754737_78.doc x @ 968265 @ @ 1
11.10.4 Moving baling ram into position
a
13
14
12
3
d
4
6
5

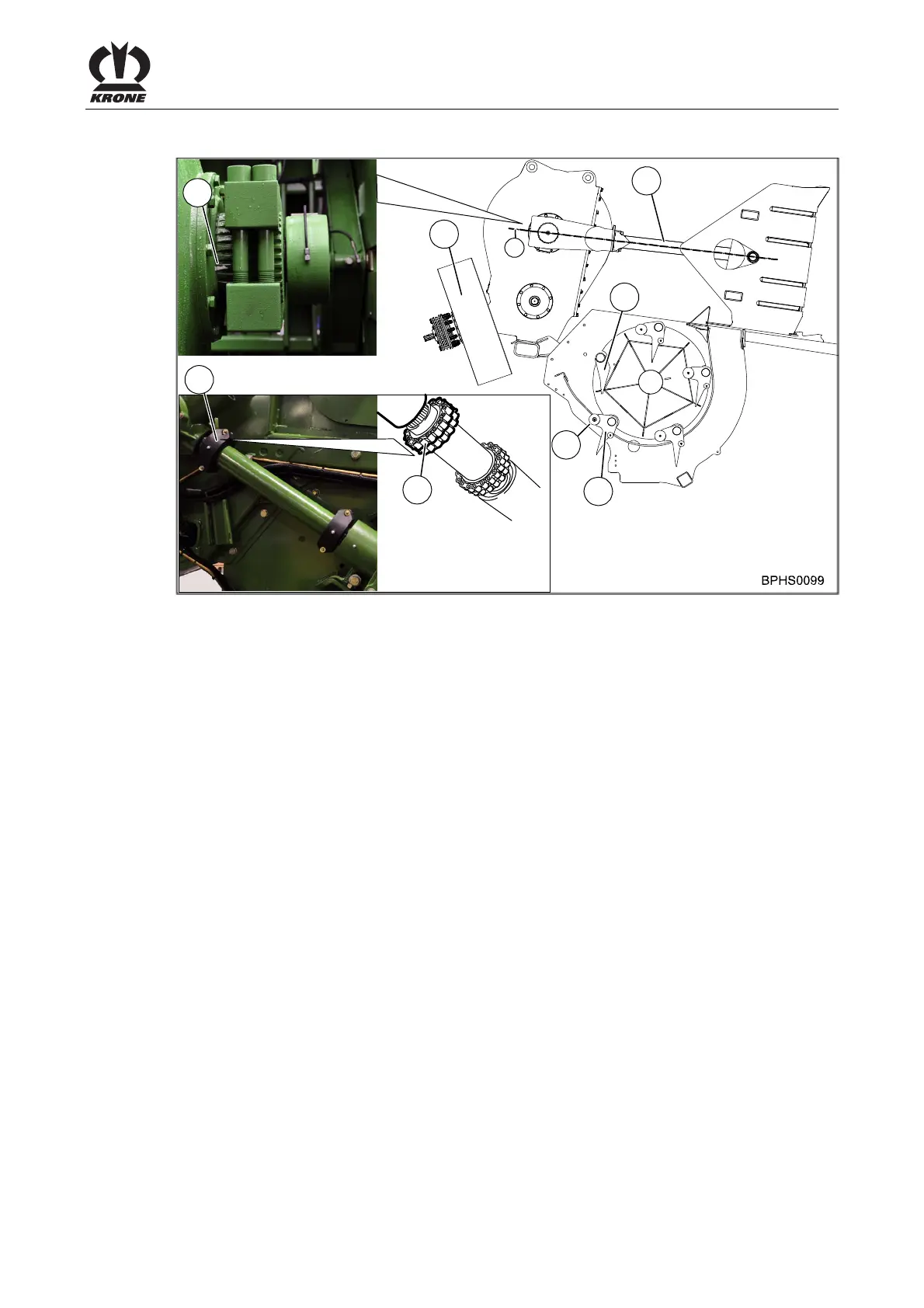

Fig. 163
• Remove guard (13) from the chain coupling
• Remove roller chain (14) from the chain coupling
• Release the flywheel brake
• By turning the flywheel (12) in the direction of operation, move the plunger rod (3) into the
extended position (a) (rear dead centre point) (the marks (d) on the main gearbox are in
alignment)
• Apply the flywheel brake
• Position the chain coupling roller chain (14) and secure it
• Attach guard (13) to the chain coupling
• Remove the mounting lever
Checking setting:
• Release the flywheel brake
• Using the flywheel, manually move machine through one complete revolution in the
direction of operation until the plunger rod (3) is in the extended position (a) (rear dead
point)
The large roller on the packer strip (4), which runs in front of the feeder strip (5), must be in the
centre of the inspection window (6).
If this is not the case, start the settings all over again (see Settings section “Setting packer
relative to the baling ram”
).
