6.2 ISOBUS Short Cut Button
Pos: 22.9.2 /BA/I nfo-Center/CCI-I SOBUS-Terminal/Module für Beipack/ISOBUS Short Cu t ButtonISOBUS Short Cut But ton_2 Gefahr @ 46\mod_128 2643782875_78.doc x @ 447376 @ @ 1
DANGER! – risk of injury by running machine!
Your machine supports the ISOBUS short cut button.
• By actuation of the ISOBUS short cut button (1) the machine functions are switched off in
order to be able to initiate a secure condition of the machine in hazardous situations.
Process oriented procedures perform to the end. Therefore, machine parts continue to
run after actuating the ISOBUS short cut button. This can lead to injuries
• The ISOBUS short cut button does in no case interfere with tractor functions, i.e. neither
universal shaft functions nor hydraulic functions will be affected in any way! Therefore,
the machine can continue to run after actuating the ISOBUS short cut button. This can
lead to injuries
Pos: 22.9.3 /BA/I nfo-Center/CCI-I SOBUS-Terminal/Module für Beipack/ISOBUS Short Cu t ButtonISOBUS Short Cut But ton_wird betätigt_ BiG Pack HS Baureihe @ 63\mod_129 9760195099_78.doc x @ 575780 @ 3 @ 1
By hitting the ISOBUS Short Cut Button (as emergency pushbutton) (1) on the terminal a STOP
signal is sent to the ISOBUS. This signal is evaluated by your connected ISOBUS machine in
order to trigger automatic measures in a hazard situation.
Activating the ISOBUS Short Cut Button will call up the appropriate alarm screen on the display.
F1
F2
F3
F4
F5
F6
F7
F8
F9
F10
F11F11
F12
ESC
CC000070
ISB
1

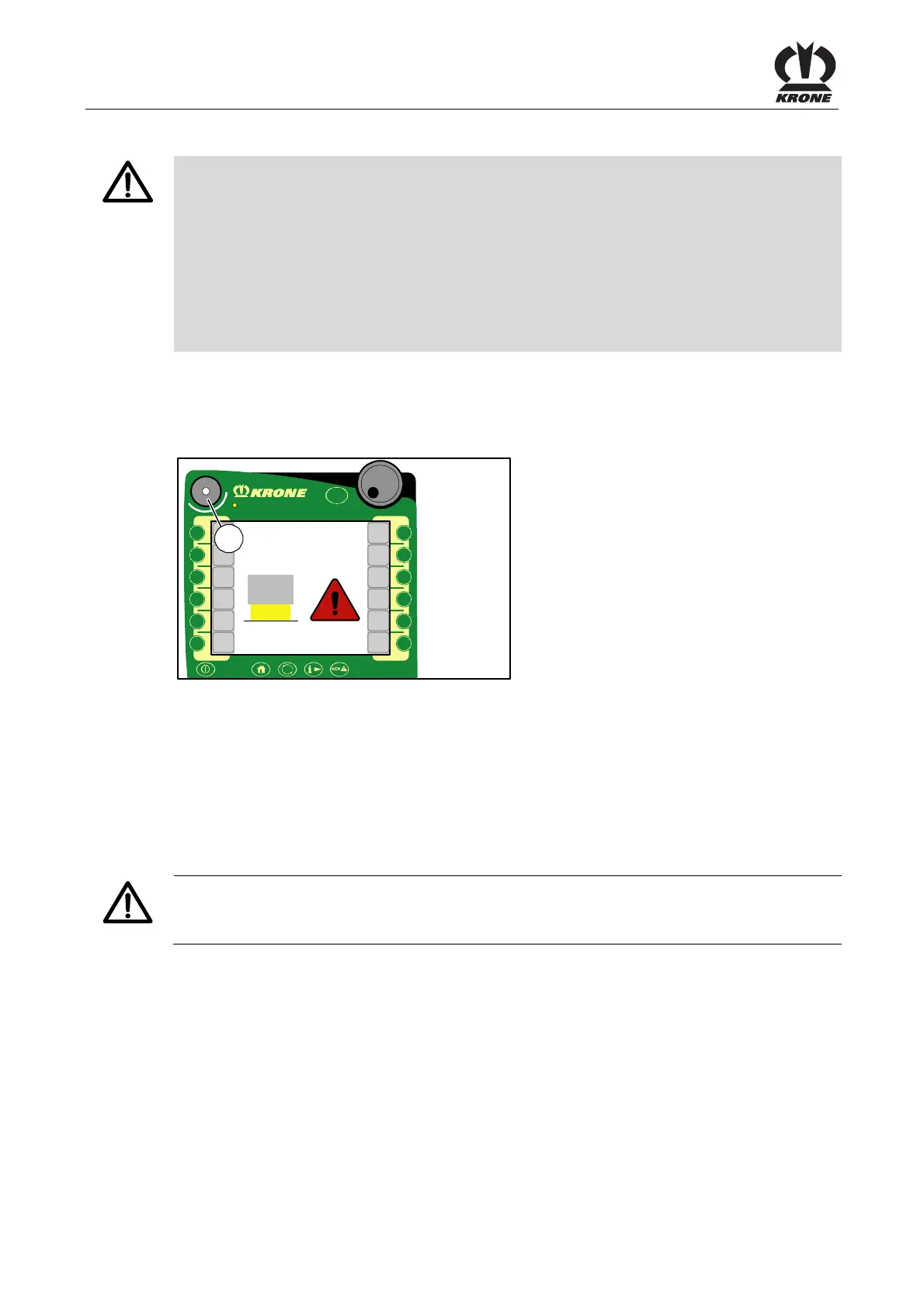

Fig.28
The job computer will then block the following functions on the machine side.
• Lift/Lower blade bar (depending on machine configuration)
• Retract/Extend/Automatic bale ejector (depending on machine configuration)
• Lift/Lower bale chute (depending on machine configuration)
• Trigger knotting motor
• MultiBale switchover (for MultiBale)
• Knotter cleaning mechanism
CAUTION!
Process oriented operations (e.g baling operation) run on until completed even when the
ISOBUS Short Cut Button is hit. This is potentially hazardous.
