11.10 Adjusting the Packer Relative to the Plunger
Pos: 34.79.14 /Übersc hriften/Überschr iften 3/A-E/Baugruppe nbeschreibung @ 107\ mod_1334639066023_78. docx @ 968123 @ 32 @ 1
11.10.1 Description of components
Pos: 34.79.15 /BA/E instellungen/Großpac kenpresse/Pres skolbeneinstellung/ Raffer zum Pressko lben 4x4 Bild mit Legende @ 107\ mod_1334638946359_7 8.docx @ 968152 @ @ 1

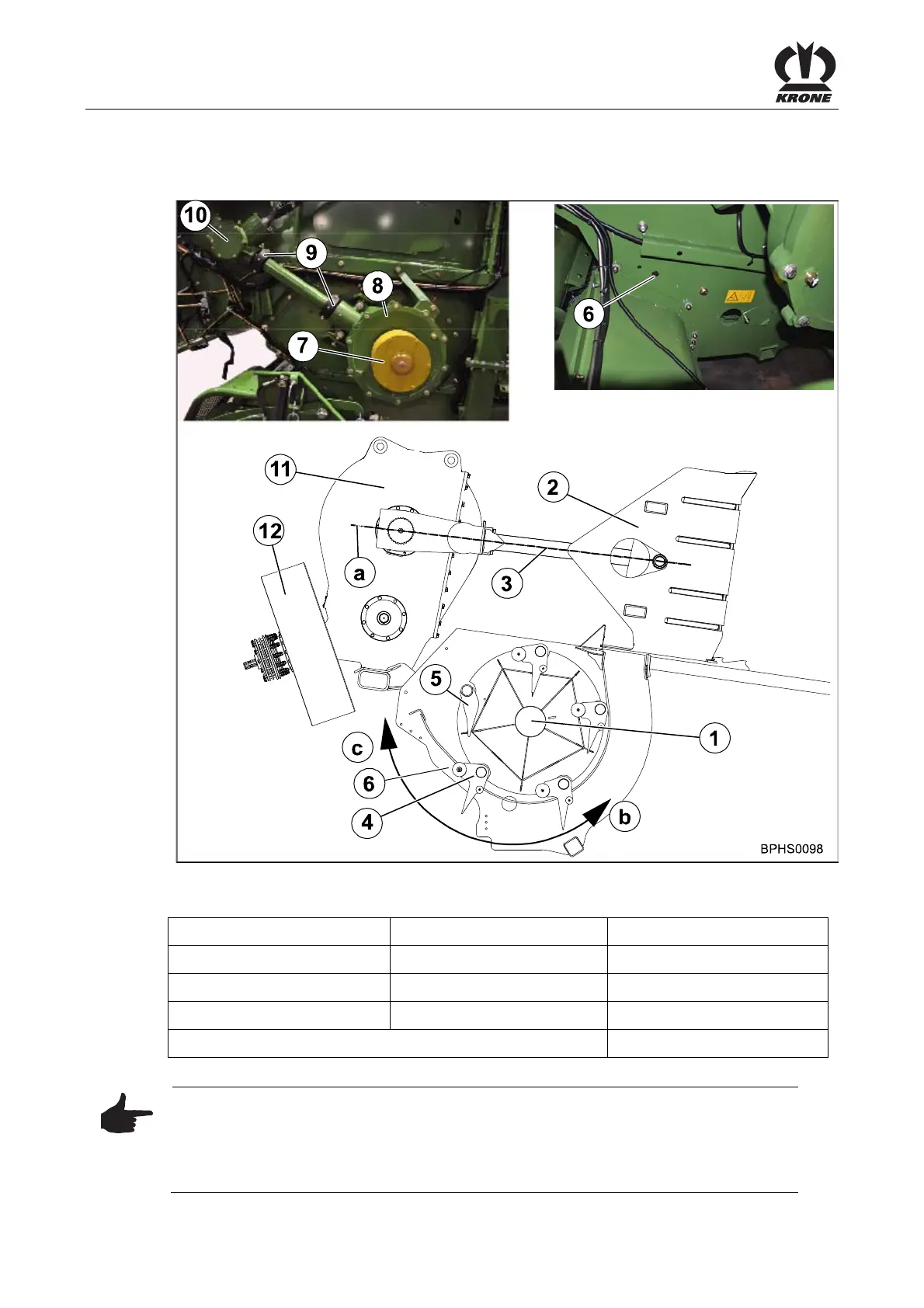

Fig. 160
1) Packer 2) Baling ram 3) Plunger rod
4) Packer strip 5) Feeder strip 6) Inspection window
7) Packer coupling 8) Packer gearbox 9) Chain coupling
10) Transfer gearbox 11) Main gearbox 12) Flywheel
a) Extended position (rear dead point)
Pos: 34.79.16 /BA/E instellungen/Großpac kenpresse/Pressko lbeneinstellung/ Raffer zum Preßkolben Vor gehensweise 4x4 @ 107\ mod_1334641400082_7 8.docx @ 968210 @ 3 @ 1
Note
The packer (1) has been set correctly relative to the baling ram (2) when
• the plunger rod (3) is in the extended position (a) and
• the large roller on the packer strip (4), which runs in front of the feeder strip (5), is
in the centre of the inspection window (6)
