Krone Big Pack 4x4 - Adjusting the drawbar height

Commissioning
50
Pos: 18.4 /Überschri ften/Überschri ften 2/F-J/Höhenanpas sung der Deichsel @ 17\mod_12 36255816988_78.doc x @ 204061 @ @ 1
5.1 Adjusting the drawbar height
Pos: 18.5 /BA/Sic herheit/Gefahrenhin weise/Inbetriebnah meGefahr - Unvorhergeseh ene Inbetriebnahme_2 Bi G Pack @ 17\mod_123625557151 9_78.docx @ 204032 @ 2 @ 1
DANGER! - Unexpected movements of the machine!
Effect: Danger to life, injuries or damage to the machine.
• Secure the machine against rolling away with wheel chocks and by applying the parking
brake
• Use suitable supporting blocks for supporting the machine
• There is a risk of crushing one's feet when cranking down the parking support
Pos: 18.6 /BA/Inbetr iebnahme/Erstinbe triebnahme/Großpac kenpressen/Einste llung der Anhängehöhe 4x4 @ 108\ mod_1334732430989_7 8.docx @ 970024 @ @ 1

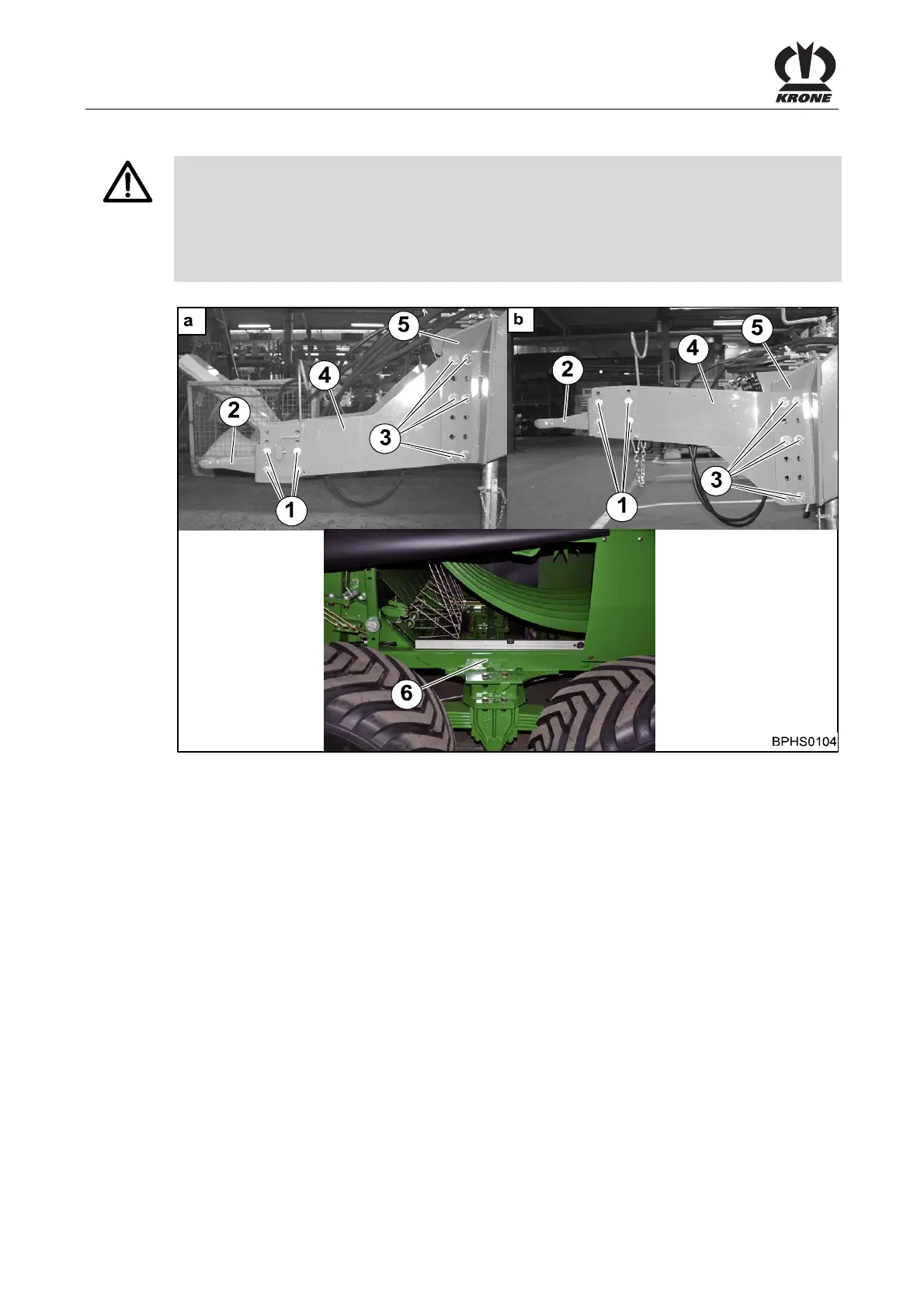

Fig. 22
Always adjust the hitching device of the machine to the tractor used. Always couple the
machine horizontally to ensure that the pick-up collects the crop evenly. The cross-member is
used as a reference edge to align the machine (6).
Before making the setting:
• Place the machine on the parking support
• Secure the machine against the possibility of rolling back.
• Uncouple the machine from the tractor
• Using a spirit level, align the machine horizontally
Setting the towing ring:
• Unscrew the screws (1)
• Adjust the height of the towing ring (2) to the height of the tractor hitch
• Fit and tighten the screws (1)
