Krone Big Pack 4x4 - Checking packer coupling; Moving packer strip into position

Settings
222
Pos: 34.79.18 /BA/E instellungen/Großpac kenpresse/Pressko lbeneinstellung/ Rafferkupplung üb erprüfen Einrastung der BP 4x4 Baureihe @ 74\mod_1308 666241589_78.doc x @ 657137 @ 3 @ 1

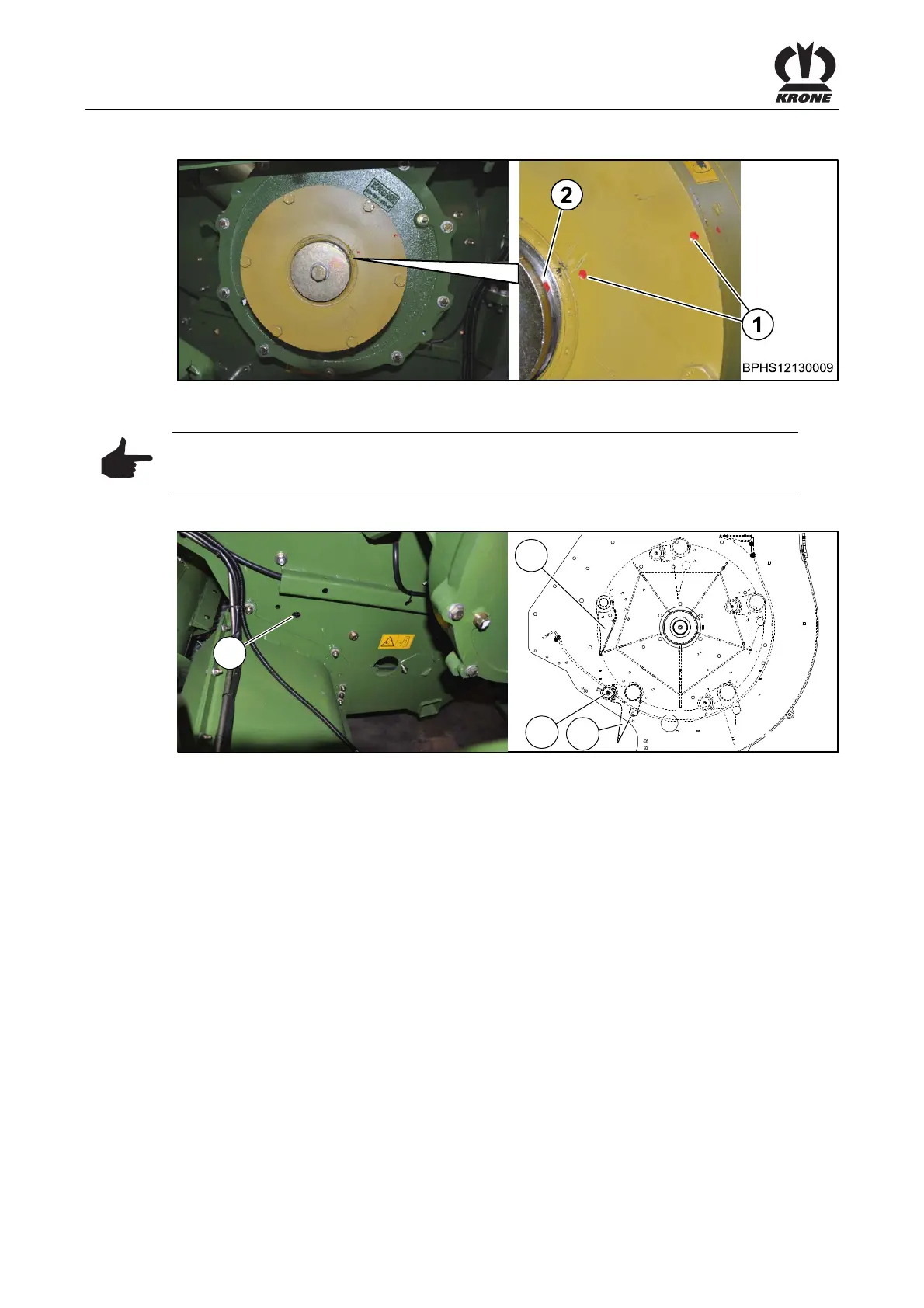

11.10.2 Checking packer coupling
Fig. 161
Note
The packer coupling is correctly engaged when the outer marks (1) on the packer
coupling are aligned with the mark (2) on the inner ring of the packer coupling.
Pos: 34.79.19 /BA/E instellungen/Großpac kenpresse/Pressko lbeneinstellung/ Raffer einstellen Bi g Pack 4x4 Bild @ 74\mod_130873 0701649_78.doc x @ 657415 @ @ 1
6
6
5
4
BPHS0102
Fig. 162
Pos: 34.79.20 /BA/E instellungen/Großpac kenpresse/Pressko lbeneinstellung/ Einstellung Raff er BigPack 4x4 T1 @ 74\mod_13087 30763196_78.doc x @ 657473 @ 3 @ 1
11.10.3 Moving packer strip into position
• Manually rotate the packer in the direction of rotation by turning the flywheel until the
large packer strip roller (4), which runs in front of the feeder strip (5), is in the centre of
the inspection window (6)
• Secure the packer in this position with a mounting lever
• Apply the flywheel brake
