Krone Big Pack 4x4 - Adjusting the Sensors

Maintenance – lubrication
281
Pos: 36.61 /Übersc hriften/Überschri ften 3/A-E/Einstell ung der Sensoren @ 0\mod_119996 2173428_78.doc x @ 37635 @ 2 @ 1
14.8.1 Adjusting the Sensors
Pos: 36.62 /BA/W artung/Sensoren/Namursen sor d = 12 mm @ 0\mod_119996224703 8_78.docx @ 37654 @ 1 @ 1
14.8.1.1 Namur sensor d = 12 mm
a
BP-VFS-088-1
2
1
3

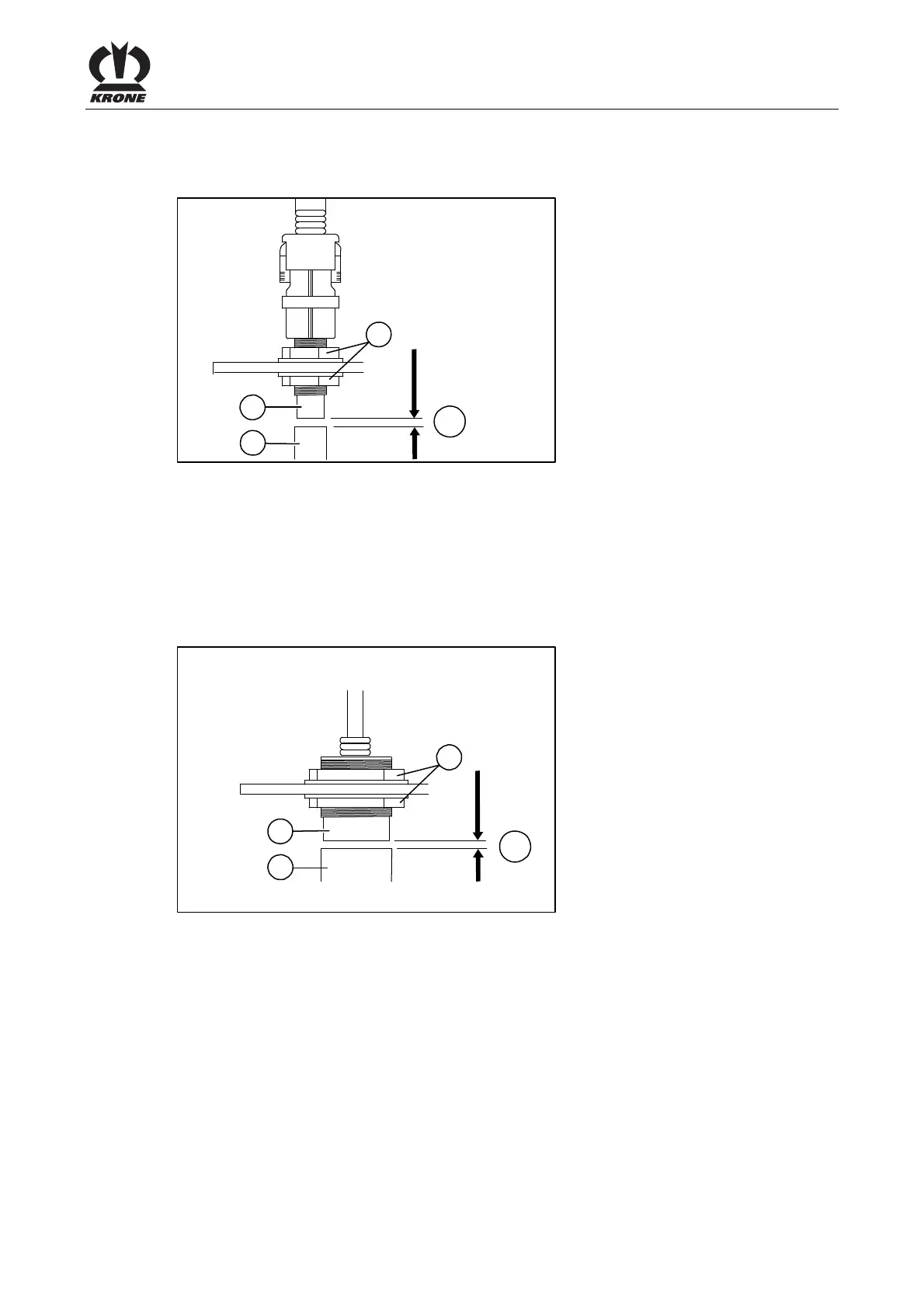

Figure 207
The dimension between the encoder (2) and the sensor (1) must be "a" = 2 mm
.
Setting
• Loosen the nuts on either side of the sensor.
• Turn the nuts until dimension "a" = 2 mm
is reached.
• Tighten the nuts again.
Pos: 36.63 /BA/W artung/Sensoren/Namursen sor d = 30 mm a= 5mm @ 0\mod_11999625201 00_78.docx @ 37673 @ 2 @ 1
14.8.1.2 Namur sensor d = 30 mm
a
BPXC0172
2
1
3
Figure 208
The dimension between the encoder (2) and the sensor (1) must be "a" = 5 mm
.
Setting
• Loosen the nuts on either side of the sensor.
• Turn the nuts until dimension "a" = 5 mm
is reached.
• Tighten the nuts again.
