Krone Big Pack 4x4 - Overload coupling on flywheel

Placing in Storage
285
Pos: 38.13 /Übersc hriften/Überschri ften 3/U-Z/Überlastku pplung am Schwungrad @ 46\ mod_1282047883734_78. docx @ 445914 @ @ 1
15.3.1 Overload coupling on flywheel
Pos: 38.14 /BA/Einlager ung/Großpackenpr esse/Überlastku pplung am Schwungrad Hin weis @ 46\mod_12820480181 56_78.docx @ 445940 @ @ 1
Note
After the machine has been idle for long periods of time, the linings of the overload coupling (1)
may adhere to friction surfaces. Vent the overload coupling before use.
Pos: 38.15 /BA/Einlagerun g/Großpackenpre sse/Überlastkupplung a m Schwungrad BYPY 890/1270/890 ( XC) 16,9 mm @ 48\mod_128625 5932953_78.docx @ 459871 @ 1 @ 1
Procedure for types BiG Pack 890 (XC) BiG Pack 1270 (XC) and BiG Pack 1290(XC)

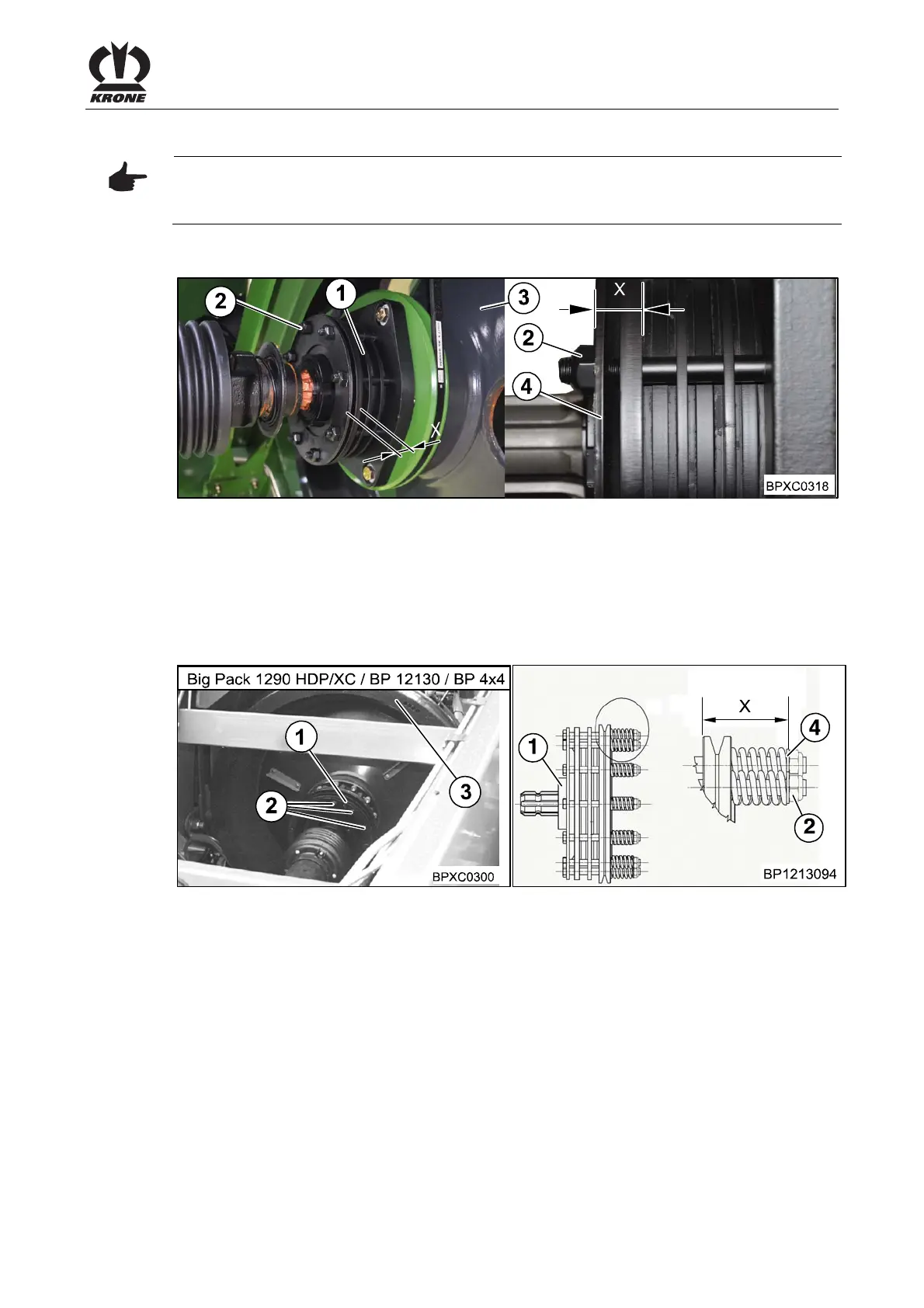

Fig. 209
• The overload coupling is on the flywheel (3)
• To vent it, release the nuts (2) on the overload coupling (1) until the disc spring (4) is
released
• Turn the universal shaft manually around once
• Afterwards, retighten the nuts crosswise until the setting dimension X = 16,9 mm is set
Pos: 38.16 /BA/Einlagerun g/Großpackenpre sse/Überlastkupplung a m Schwungrad BYPY 1290 HDP(XC) BP 12130 / 4 x4 @ 46\mod_1282044788109_78. docx @ 445861 @ 2 @ 1
Procedure for types BiG Pack 1290 HDP/XC / Big Pack 4x4 and BiG Pack 12130
Fig. 210
• The overload coupling is located on the flywheel (3)
• To vent it, release the nuts (2) on the overload coupling (1) until the compression springs
are released
• Turn the universal shaft manually around once
• Afterwards, retighten the nuts crosswise until the setting dimension X = 75.8 mm is set
(measured from the outer edge of the disc (4))
