Krone Big Pack 4x4 - Cutting system drive gear

Maintenance
263
Pos: 36.47.18.1 /Über schriften/Übersc hriften 2/P-T/Schnei dwerksantriebsge triebe @ 24\mod_12415950 72471_78.docx @ 246450 @ @ 1
12.21 Cutting system drive gear
Pos: 36.47.18.2 /BA/ Wartung/Ölkontrol le_Wechsel/Großpacke npresse/Für Big P ack XC-Ausführung @ 24\mod_1241 596464409_78.doc x @ 246572 @ 1 @ 1
For BiG PACK XC version
Pos: 36.47.18.3 /BA/ Wartung/Ölkontrol le_Wechsel/Großpacke npresse/Schnei dwerksantriebsge triebe Anbringungsort @ 24\ mod_124159512009 6_78.docx @ 246474 @ 2 @ 1
The cutting system is located on the right hand machine side. It consists of the upper angular
gear (4a) and the lower transfer gearbox (4b) (Pick-up/cutting system).
Pos: 36.47.18.4 /BA/ Wartung/Ölkontrol le_Wechsel/Großpacke npressePick- up Schneidwerksantriebsge triebe 4x4 Bild (2013- 07-01 15:33:17) @ 108\mod_1334842721055_78. docx @ 972495 @ @ 1

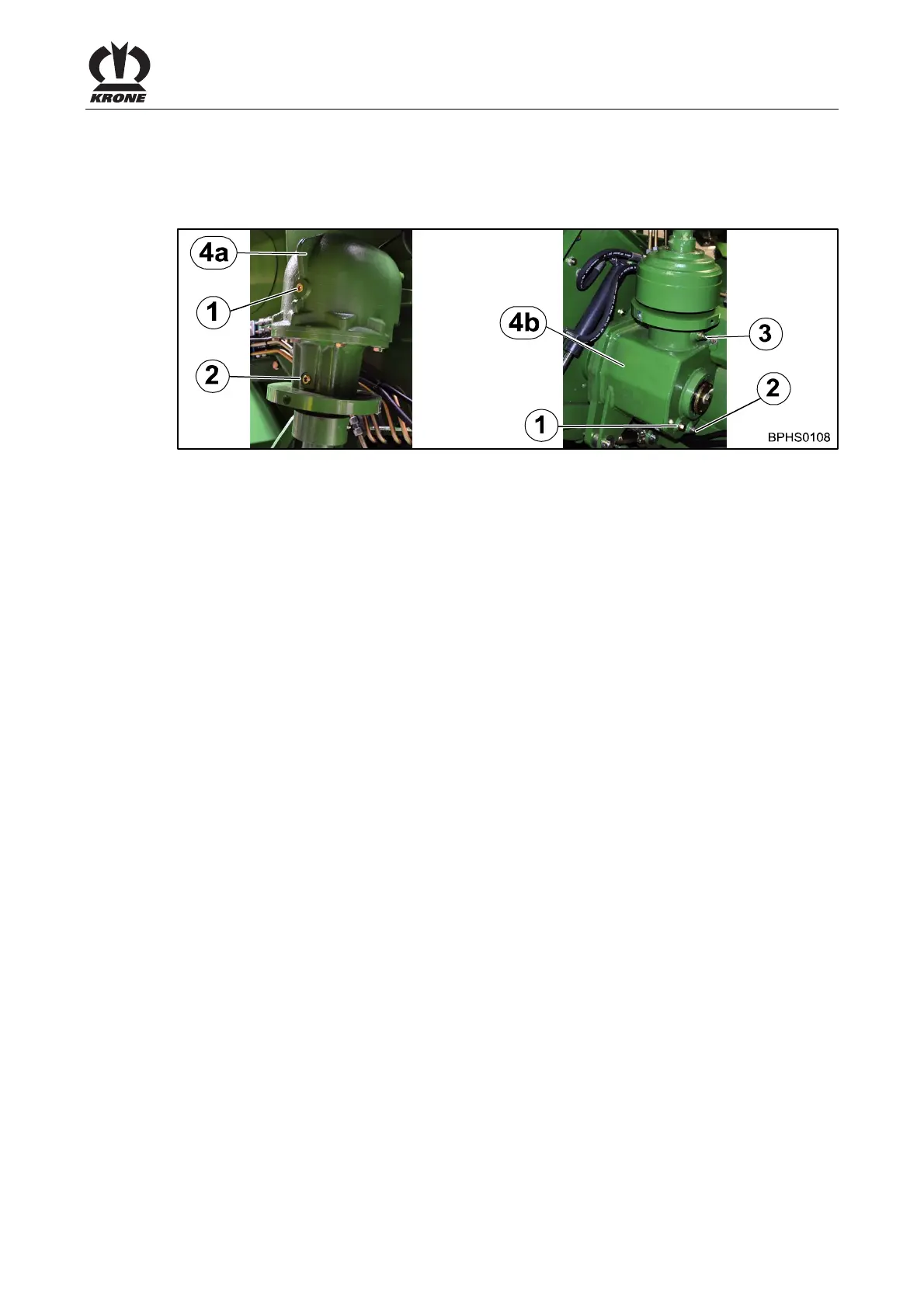

Fig. 192
Pos: 36.47.18.5 /BA/ Wartung/Ölkontrolle_W echsel/Ölkontro lle_ALTÖlkontrolle SAE 90 @ 0\mo d_1197008973815_78.doc x @ 15649 @ @ 1
Oil level check:
• For time intervals, see Chapter "Oil Level Check and Oil Change Intervals (Gearboxes)".
• Unscrew the inspection screw (1)
• Oil level up to bore hole (1)
• If necessary, top up the oil (SAE 90)
• Screw the check screw (1) back in.
Pos: 36.47.18.6 /BA/ Wartung/Ölkontrol le_Wechsel/Großpacke npresse/Wi nkelgetriebe Zwischenübersc hrift @ 24\mod_1241 596135128_78.docx @ 246524 @ 2 @ 1
Angular gear
Pos: 36.47.18.7 /BA/ Wartung/Ölkontrol le_Wechsel/Ölwechse l_ALTÖlwechsel Ver sion2 @ 0\mod_1197016258 486_78.docx @ 15884 @ @ 1
Oil change:
• For time intervals, see Chapter "Oil Level Check and Oil Change Intervals (Gearboxes)".
• Screw out the screw plug (2).
• Collect the used oil in a suitable drip pan
• Screw in the screw plug (2)
• Fill oil (1) (oil level up to hole (1))
