3.9 Connection prerequisites on tractor
Pos: 11.26 /BA/Einlei tung/Maschinenüber sicht/Großpackenpr essen/Bremsansc hlüsse Bild HS Baureihe @ 61\ mod_1298987065329_7 8.docx @ 569238 @ @ 1
6
BPHS0001
Fig.2
Pos: 11.27 /BA/Einlei tung/Maschinenüber sicht/Großpackenpr essen/Bremsansc hlüsse @ 17\mod_123617 9937183_78.doc x @ 201982 @ @ 1
Brake connections:
For BiG PACK baler with:
Brake activated by compressed air Dual-line brake system required
Hydraulically activated brake (6)
Connection for hydraulic brake system
required (max. working pressure 120 bar /
1740 PSI)
Pos: 11.28 /Übersc hriften/Überschri ften 2/A-E/Elektri sche Anschlüsse @ 17\mod_1 236579932558_78.doc x @ 205175 @ 2 @ 1
3.10 Electrical connections
Pos: 11.29 /BA/Einlei tung/Maschinenüber sicht/Großpackenpr essen/Elektri kanschlüsse HS Baureihe @ 64\mod_13002723807 92_78.docx @ 582730 @ @ 1

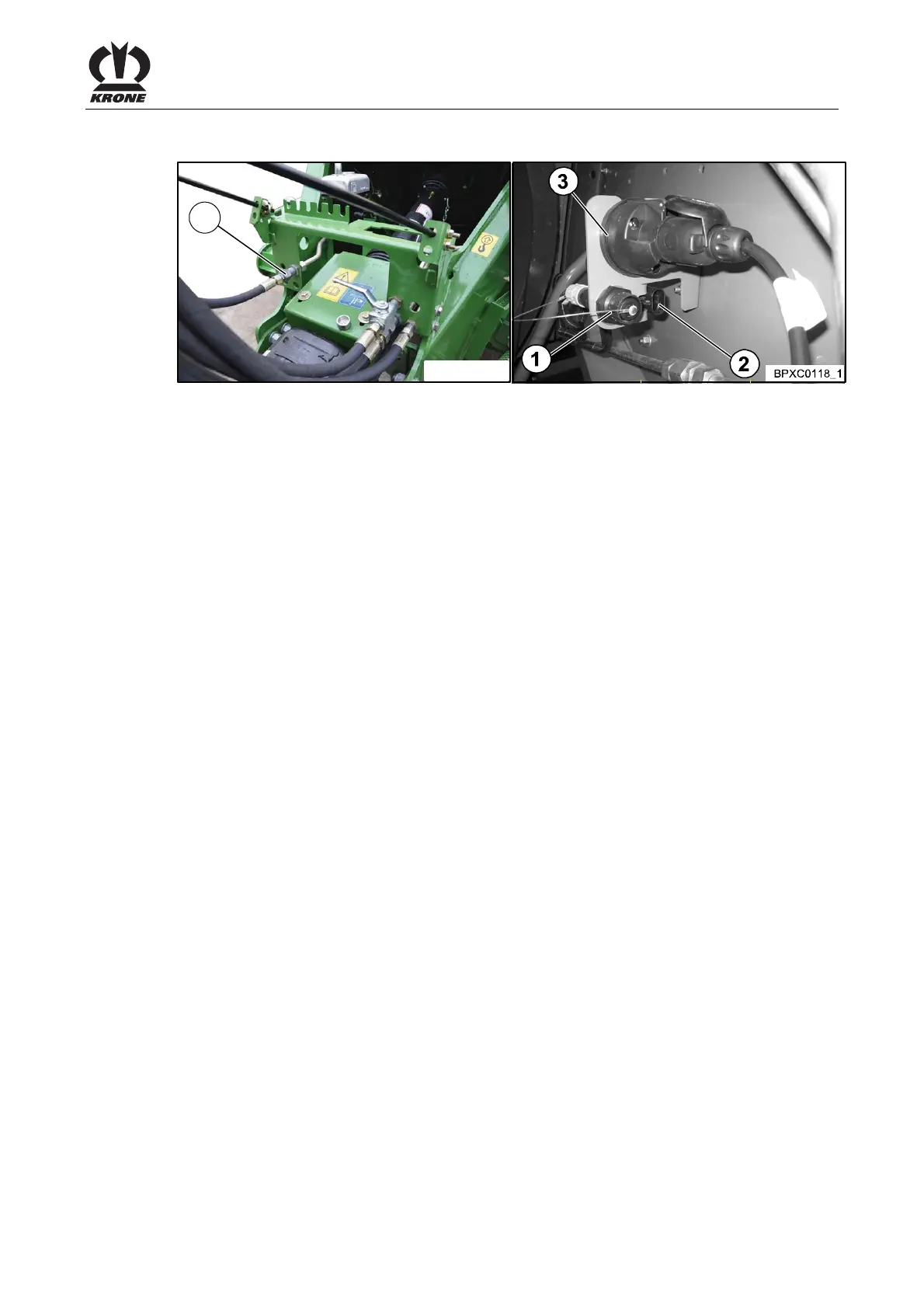

Socket (1):
7 pin socket for connection cable between terminal and machine
Socket (2):
2 pin socket for power supply cable between machine and permanent tractor socket (direct
battery connection for permanent power supply needed).
Socket (3):
7-pin standard socket for lighting
