10.13 XC Cutting System Drive

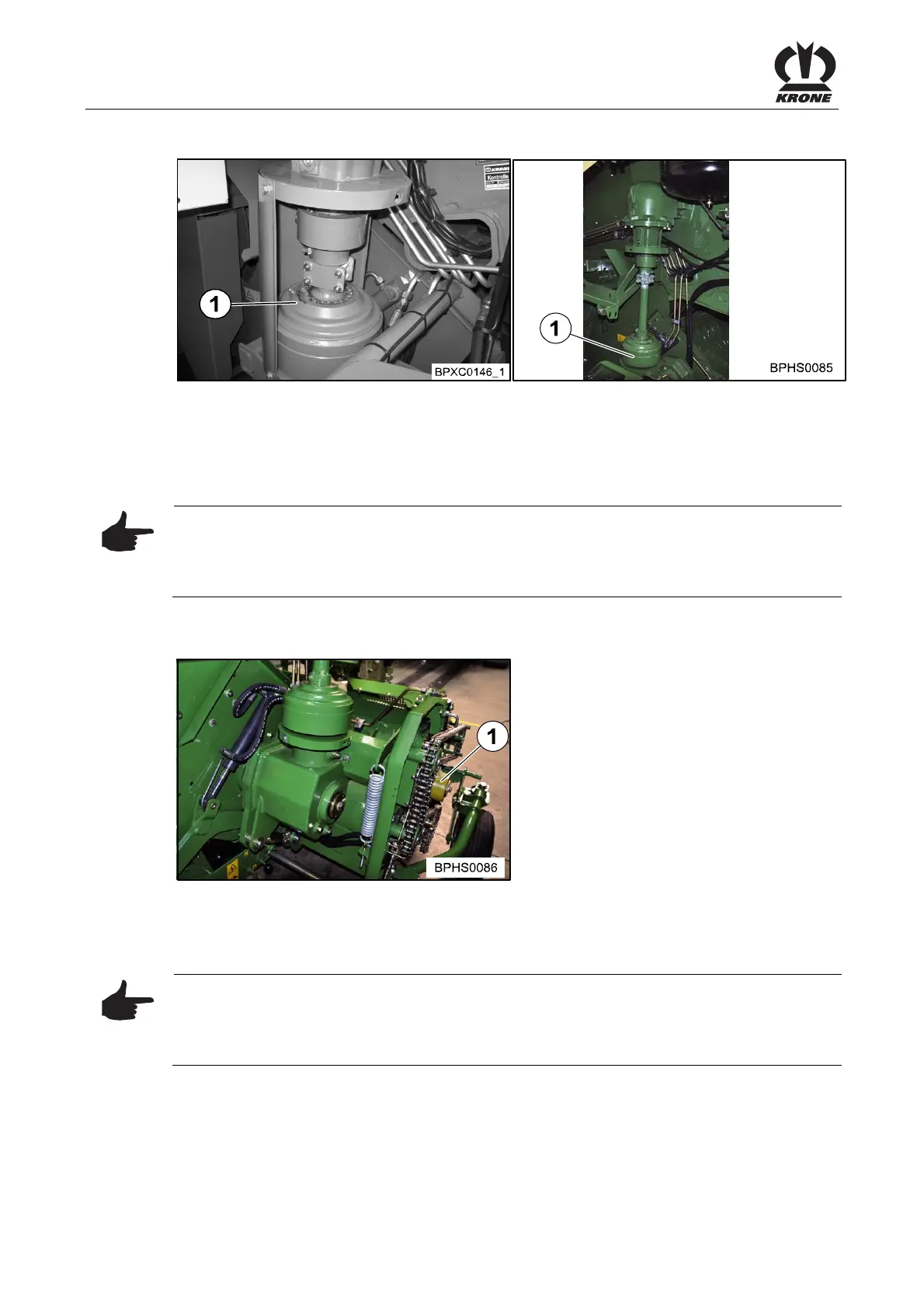

Fig. 128
BiG PACK 890 /1270 /1290 BiG PACK 4X4
The cutting rotor is driven via the upper angular gear. An intermediate shaft transmits the torque
through an overload coupling (1) onto the lower angular gear.
Pos: 32.39 /BA/Bedienun g /Großpackenpresse/ Überlastsic herungen / Kupplungen / Ster nratsche / Schersc hraubeHinweis Überlastkupp lung angesprochen @ 136\ mod_1353062689925_78. docx @ 1213829 @ 2 @ 1
Note
As soon as the overload coupling responds, stop the tractor and reduce the speed until the
machine has cleared itself again. The overload coupling now automatically resumes its work.
An error message appears in the display of the control unit.
Pos: 32.40 /BA/Bedienun g /Großpackenpresse/ Antriebe/Pic k-up Antrieb bei Ausführun g mit Schneidwerk BP 4 x4 @ 136\mod_1353061768194_ 78.docx @ 1213711 @ 3 @ 1
10.14 Pick-Up Drive (For the XC Cutting System Version)
Fig. 129
The pick-up is driven on the right-hand side of the machine via the lower cutting system
gearbox. A PTO shaft transmits the torque through an overload coupling (1) onto the drive chain
of the pick-up.
Pos: 32.41 /BA/Bedienun g /Großpackenpresse/ Überlastsic herungen / Kupplungen / Ster nratsche / Schersc hraubeHinweis Überlastkupp lung angesprochen @ 136\ mod_1353062689925_78. docx @ 1213829 @ 2 @ 1
Note
As soon as the overload coupling responds, stop the tractor and reduce the speed until the
machine has cleared itself again. The overload coupling now automatically resumes its work.
An error message appears in the display of the control unit.
