Settings
240
Pos: 34.99.1 /Überschr iften/Überschr iften 2/P-T/Rollenni ederhalter @ 0\mod_12 01163046930_78.doc x @ 51122 @ @ 1
11.16 Roller crop guide
Pos: 34.99.2 /BA/Si cherheit/Pic k-up / Rollenniederhalter /Gefahr - Abbau des Rollennie derhalters @ 20\mod_123 8580223182_78.doc x @ 222168 @ @ 1
DANGER! - Operation of the machine without roller crop guide!
Effect: Danger to life or serious injuries
The roller crop guide is used for accident protection and must not be removed during operation.
Pos: 34.99.3 /BA/Ei nstellungen/Pic k-up / Rollenniederhalt er/Rollenniederha lter Bild BiG Pack 4x4 HS @ 71\mod_13 05807701420_78.doc x @ 641126 @ @ 1

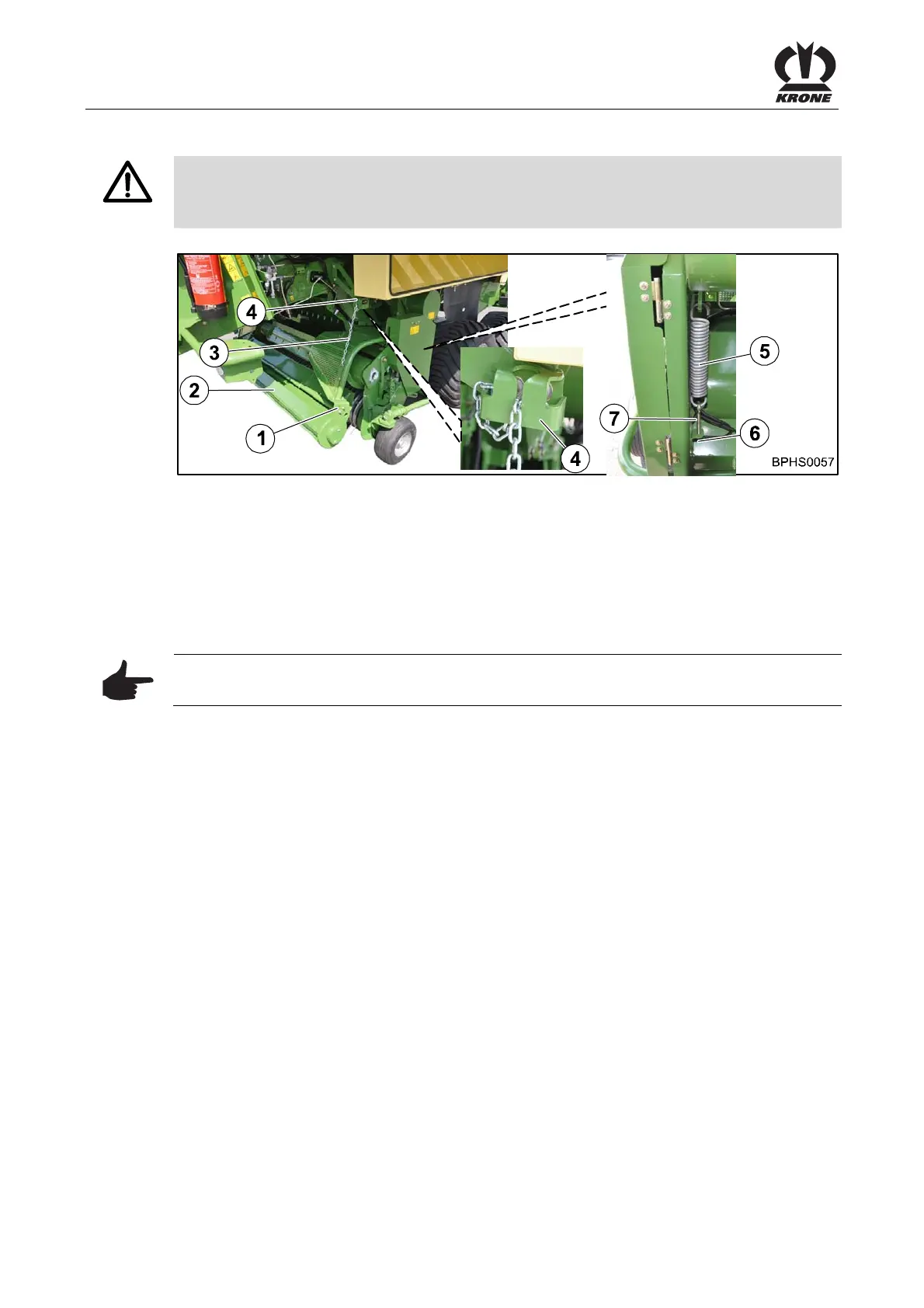

Fig. 178
Pos: 34.99.4 /BA/Ei nstellungen/Pic k-up / Rollenniederhalt er/Rollenniederha lter Höheneinstel lung @ 20\mod_1238588056307_ 78.docx @ 223090 @ 12 @ 1
The roller crop guide (1) provides for the regulation during conveyance of the crop. It provides
for a continuous crop collection by the Pick-up.
Adjust the height of the roller crop guides (1) so that the roller of the holding-down device (2)
continuously runs above the swath.
The height adjustment of the roller crop guide (1) can be made on the retaining chains (3) that
are suspended on the support (4) on either side of the machine.
Note
Make certain that the chains in the supports are of the same length.
Pos: 34.99.5 /BA/Ei nstellungen/Pic k-up / Rollenniederhalt er/Auflagedruck der Niederhalterolle BP 121 30 HS @ 71\mod_1305807916536 _78.docx @ 641184 @ 233 @ 1
The spring (5) sets the ground pressure of the holding-down roller (2) to the swath.
• By tightening or loosening the nut (6) on the eye screw (7), set the required ground
pressure
Dry forage: Increase ground pressure
Moist forage: Reduce ground pressure
