14.6.1 Automatic centralised lubrication system (optional)
Pos: 36.56.2 /BA/War tung/Zentralschmieran lage/BEKA-MAX/Funktionsb eschreibung der BEKA-MAX- Fett-Zentralschmieran lage @ 24\mod_12417654213 22_78.docx @ 248475 @ 1 @ 1
Functional description of the BEKA-MAX grease central lubrication system
The BEKA-MAX grease central lubrication system is a progressive system. Progressive means
that all lubrication points included in the central lubricating system are lubricated one after the
other. Lubricating the lubrication points one after the other makes it very easy to monitor a
progressive central lubrication system with an excess pressure valve. If a lubrication point does
not take any grease from the distributor, the progressive distributor is blocked and a pressure of
280 bar /4060 PSI builds up in the central lubrication system. Grease emerging on the excess
pressure valve of the pump element indicates a blockage.
Pos: 36.56.3 /BA/War tung/Zentralschmieran lage/BEKA-MAX/Hinweis Im Disp lay der erscheint eine Fehler meldung @ 24\mod_12417653 52135_78.docx @ 248451 @ 22 @ 1
Note
An error message will appear in the display.
Pos: 36.56.4 /BA/War tung/Zentralschmieranlag e/BEKA-MAX/Aufbau der BEKA-MAX-Fe tt-Zentralschmier anlage @ 24\mod_1241765 294885_78.docx @ 248427 @ 2 @ 1
Layout of the BEKA-MAX grease central lubrication system
An electrically driven EP-1 plunger pump pumps lubricant to the main progressive distributor.
The task of this element is to distribute grease to the sub-progressive distributors at the correct
ratio. The sub-progressive distributors then pump the grease to the individual lubrication points.

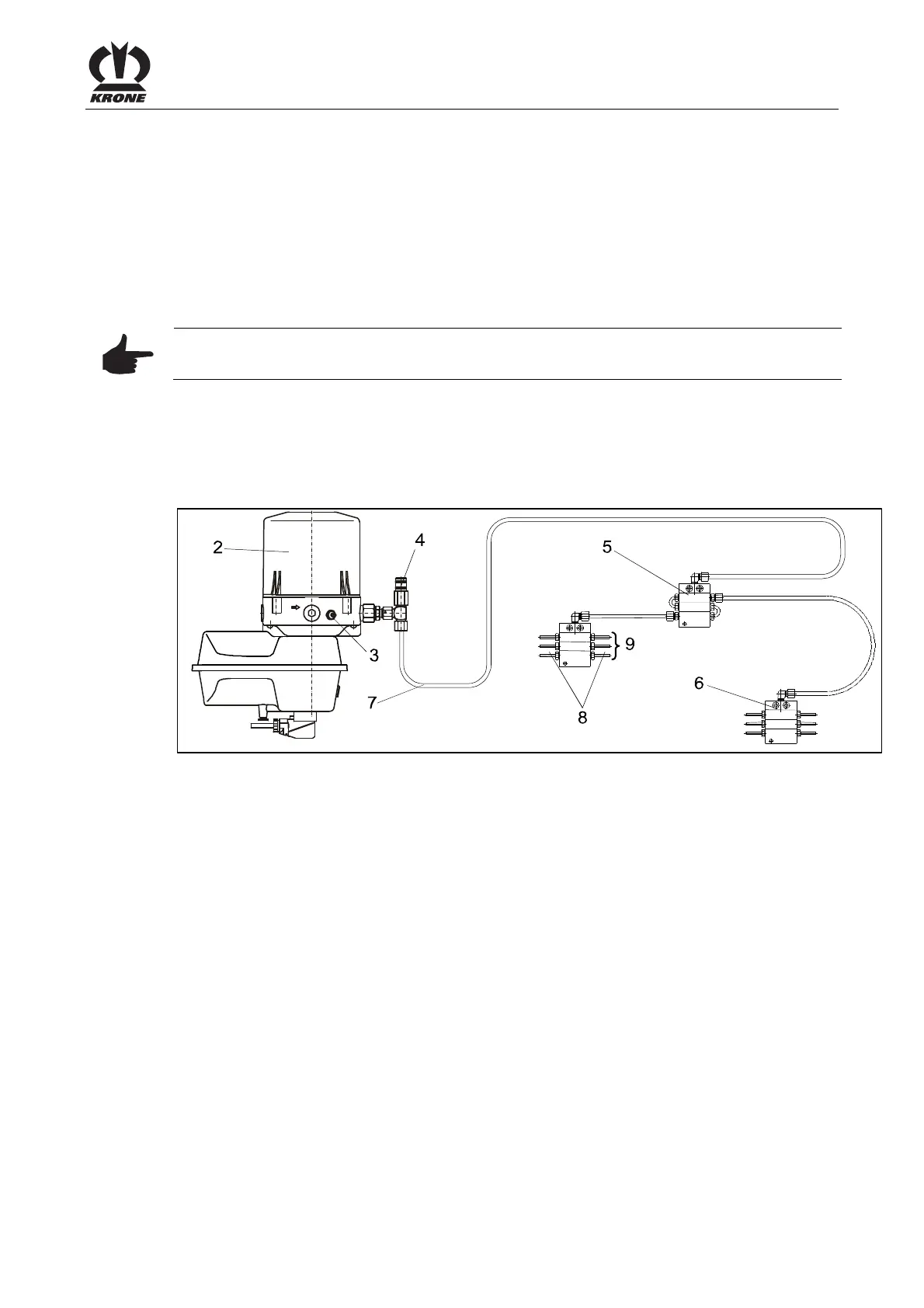

Fig. 204
2) See-through reservoir 6) Auxiliary progressive distributor
3) Filling nipple 7) Main line
4) Excess pressure valve 8) Lubrication lines
5) Main progressive distributor 9) Lubrication points
Pos: 36.56.5 /BA/War tung/Zentralschmieranlag e/BEKA-MAX/Beschreibung der Steuerung @ 24\mod_1241 765198103_78.docx @ 248 403 @ @ 1
Description of the control unit
Lubricating and pause times are regulated by the control unit in the driver's cab of the tractor
(refer to chapter Info-Center “Menu 1-5 central lubrication”).
