Commissioning
52
Pos: 18.9 /BA/Inbetr iebnahme/Erstinbe triebnahme/Großpac kenpressen/Höhenan passung des Antriebss trangs @ 32\mod_1253688 399975_78.doc x @ 316233 @ @ 1
5.2 Adjusting the height of the drive train

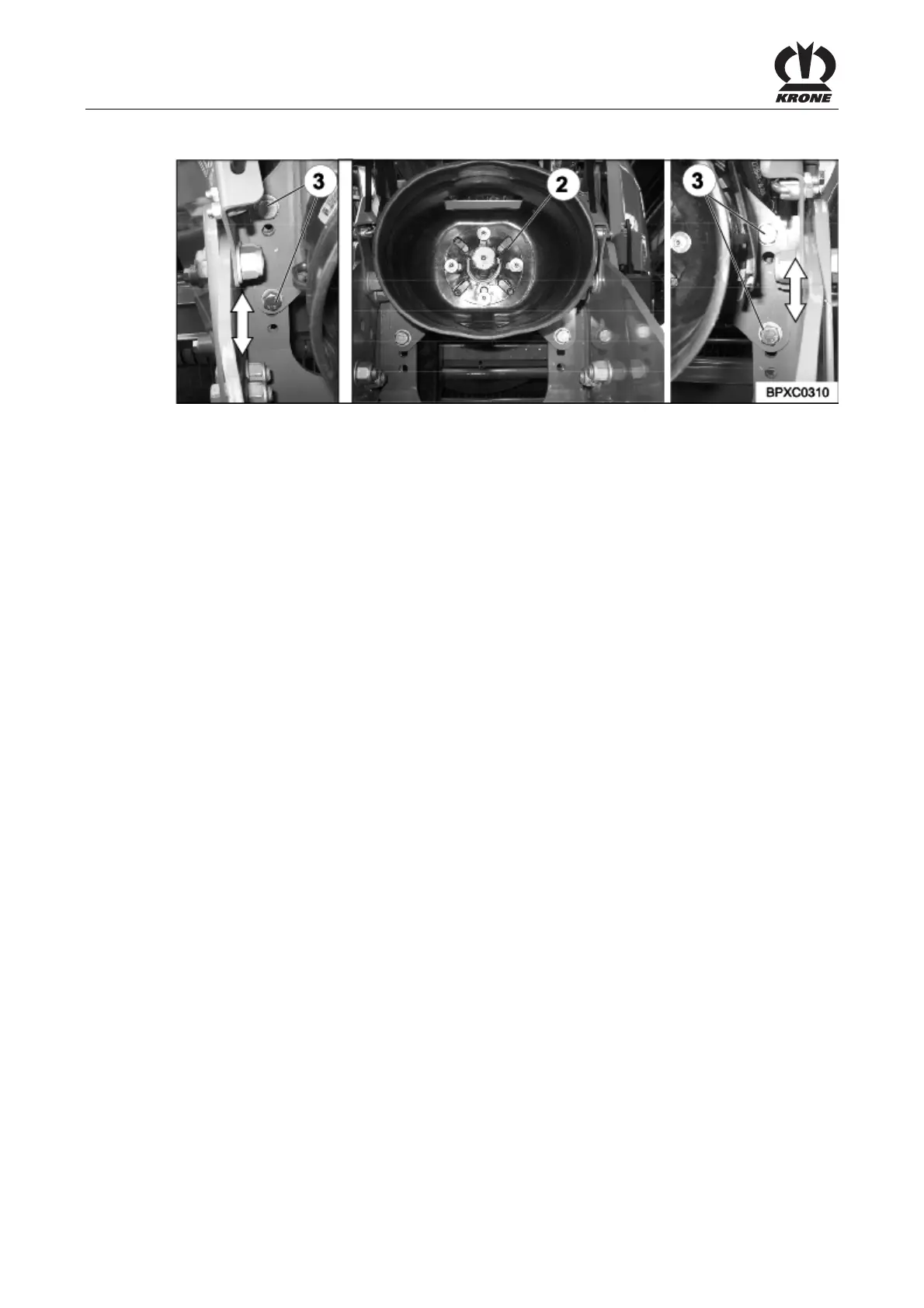

Fig. 23
The universally-jointed drive shaft (1) between the intermediate bearing (2) and the tractor
transfuses the power of the tractor to the intermediate bearing. In order to have an ideal power
transmission the articulation angle of the universally-jointed drive shaft must be as small as
possible in the range of the intermediate bearing. After adjusting the height of the drawbar
check the articulation angle of the universally-jointed drive shaft in the range of the intermediate
bearing, and if necessary adapt it.
To do this:
• Use an eligible auxiliary means in order to support the intermediate bearing during the
whole adjustment process
• Remove the screws (3) of the intermediate bearing
• Move intermediate bearing (2) in the hole pattern
• Assemble and tighten the screws (3)
