11.15.2 Driving with Pick-up in fixed position
Pos: 34.96 /BA/Einste llungen/Pick- up / Rollenniederhalter /Fahren mit feststehend er Pick-up Bild 4x4 @ 71\mod_ 1305805323853_78. docx @ 640982 @ 2 @ 1

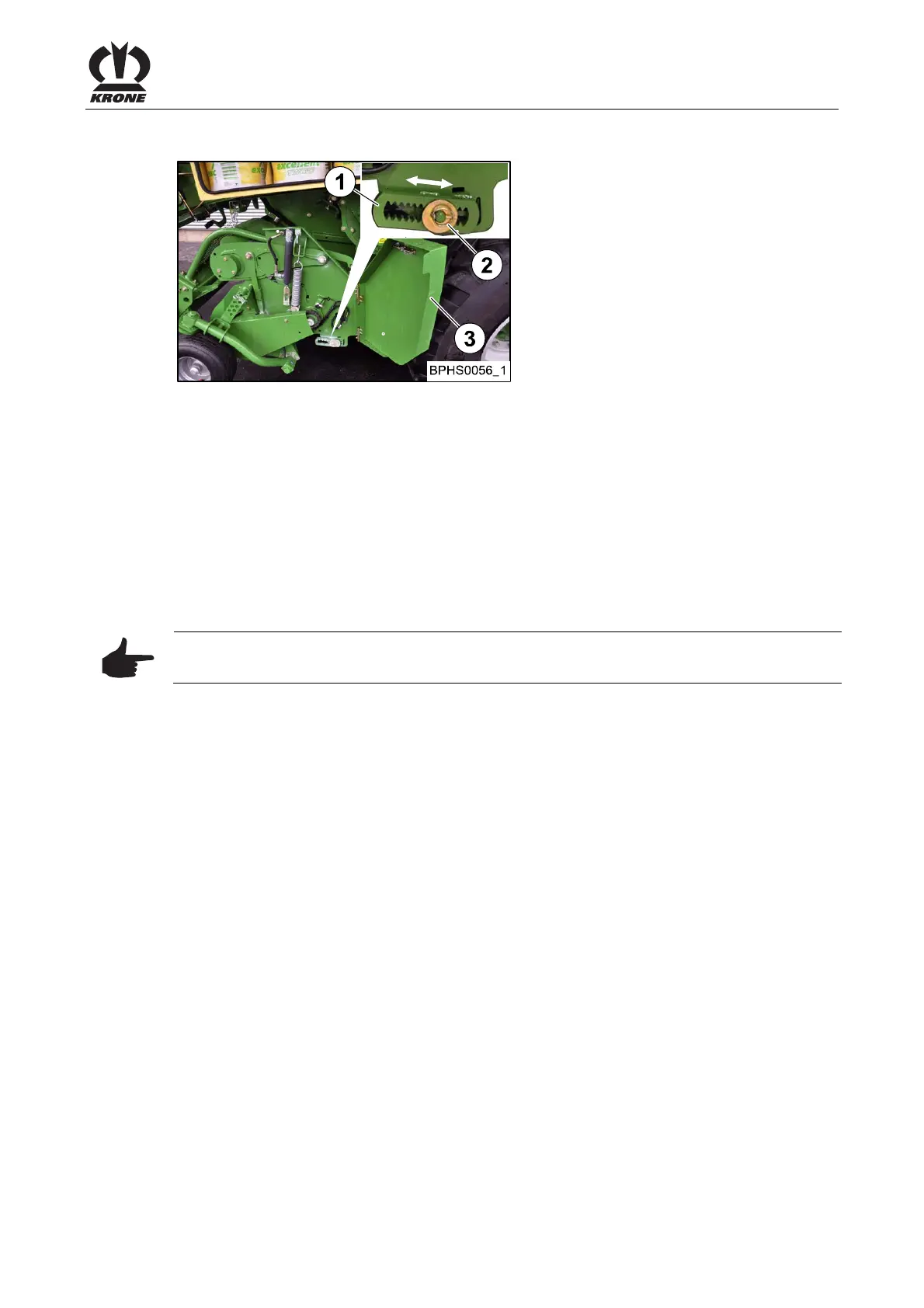

Fig. 177
Pos: 34.97 /BA/Einste llungen/Pick- up / Rollenniederhalter /Fahren mit feststehend er Pick-up Text BP 4x4 @ 107\m od_1334556393201_78 .docx @ 966224 @ 2 @ 1
The working height of the pick-up can be manually limited downwards by moving the depth
limiters (1) on both sides of the machine. This makes it possible to drive the machine without
guide wheels with the pick-up in fixed position.
To perform a setting:
• Open twine box (only model BiG PACK 4x4)
• Open pick-up guard (3)
• Remove the cotter pin 2 with washer
• By moving the depth limiter (1), set the required position
• Secure depth limiter with washer and cotter pin
Note
Make certain that the depth limiter is in the same position on both sides of the pick-up.
