Krone Big Pack 4x4 - PTO shaft

Commissioning
54
Pos: 18.15 /Übersc hriften/Überschri ften 2/F-J/Gelenkwel le @ 0\mod_1199781879794_ 78.docx @ 34542 @ @ 1
5.4 PTO shaft
Pos: 18.16 /Übersc hriften/Überschri ften 3/K-O/Längenanpa ssung @ 1\mod_12016876328 10_78.docx @ 53589 @ @ 1
5.4.1 Length adjustment
Pos: 18.17 /BA/Sic herheit/Gelenkwelle/ Gefahr - Sich dr ehende Gelenkwelle_3 @ 17\mod_1236 258086816_78.doc x @ 204184 @ @ 1
DANGER! - Rotating universal shaft!
Effect: Danger to life or serious injuries
• Before pushing the universal shaft onto the P.T.O. shaft of the tractor, disengage the
P.T.O. shaft, turn off the engine and pull out the ignition key. Apply the flywheel brake
• Secure the tractor and machine against unintentional rolling
• In the cornering movements required for adapting the length of the universal shaft no one
may stand between the machine and the tractor
Pos: 18.18 /BA/Inbetr iebnahme/Erstinbe triebnahme/Gelenk welle/Großpackenpr essenAnpassen Gelenk welle Bild BiG Pack @ 33\mod_12 53784700411_78.doc x @ 317266 @ @ 1

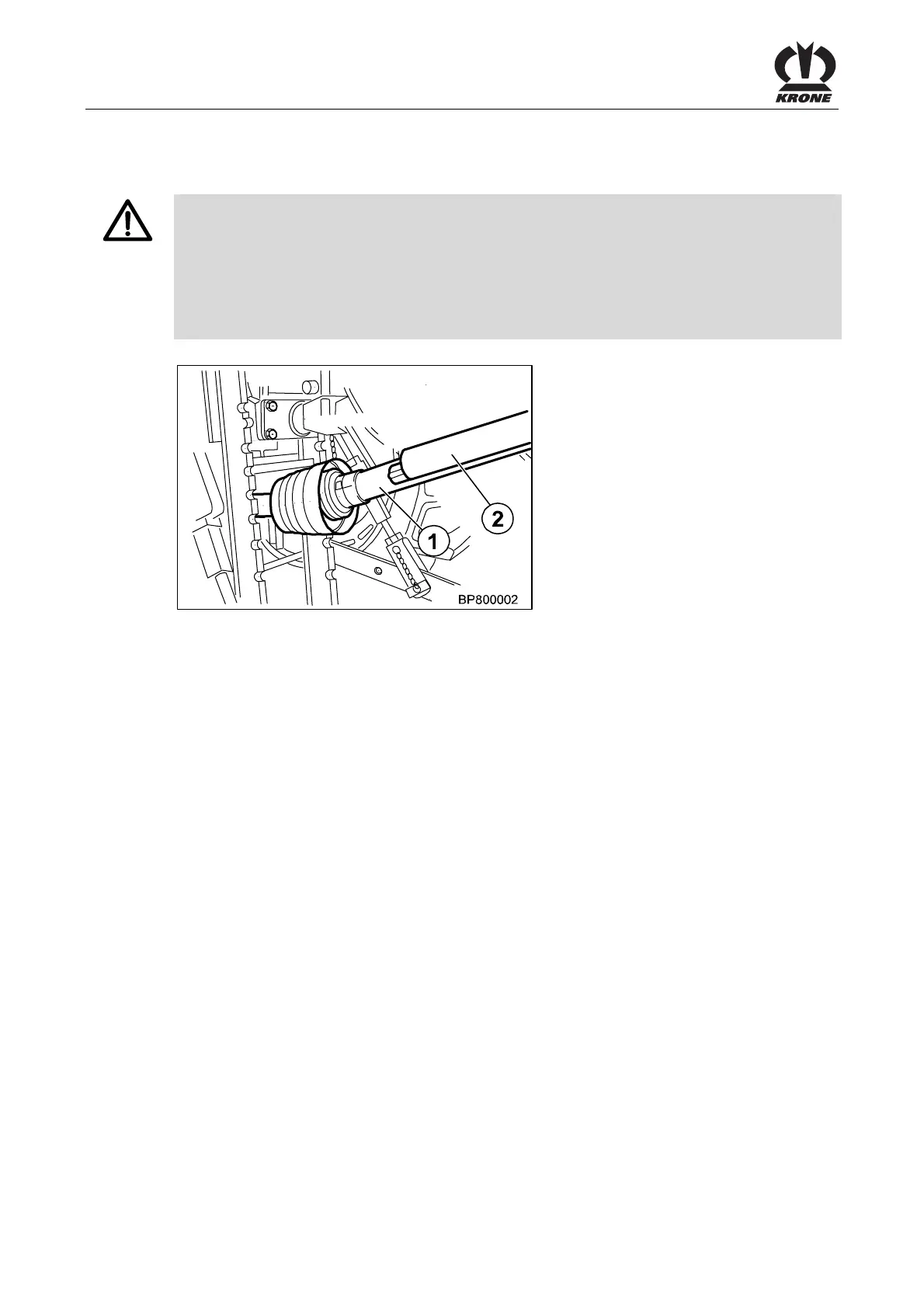

Fig. 25
Pos: 18.19 /BA/Inbetr iebnahme/Erstinbe triebnahme/Gelenk welle/Großpackenpr essenAnpassen Gelenk welle kürzeste Stellu ng @ 17\mod_12362578 34378_78.docx @ 204156 @ @ 1
To adapt the length of the universal shaft, hitch the machine onto the tractor. The shortest
position of the universal shaft is reached in close cornering.
Pos: 18.20 /BA/Inbetr iebnahme/Erstinbe triebnahme/Gelenk welle/MähwerkeLän genanpassung_ohne Pfah lsicherung @ 10\mod_1 221813873039_78.doc x @ 138060 @ @ 1
The length of the PTO shaft (1) must be adjusted.
• Disassemble the PTO shaft.
• Install each half (1) and (2) on the tractor and machine side respectively.
• Check the special section tubes and guard tubes.
• Shorten special section tubes and guard tubes to an extent that the PTO shaft can move
freely in the shortest operating position.
• For additional operating instructions refer to the operating instructions of the PTO shaft
manufacturer.
