4.18 Parking brake
Pos: 16.30 /BA/Inbetr iebnahme/Festste llbremse/Gefahr vor dem Abkuppeln Feststell bremse aktivieren @ 12\mo d_1224070212321_78.do cx @ 150212 @ @ 1
Danger! - Unexpected movements of the machine
Effect: Danger to life, serious injuries or damage to the machine
Always engage the parking brake as soon as the machine is disconnected from the tractor.
Pos: 16.31 /BA/Inbetr iebnahme/Festste llbremse/Festste llbremse Bild BiG Pack 890_ 1270_1290 HS Baureihe @ 92\mo d_1326881975736_78. docx @ 782991 @ @ 1
1
BPHS0009_1
Fig. 17
Pos: 16.32 /BA/Inbetr iebnahme/Festste llbremse/Standbre mse/Feststellbr emse Anbringungsort Bi G Pack @ 17\mod_1236321925979_ 78.docx @ 204676 @ @ 1

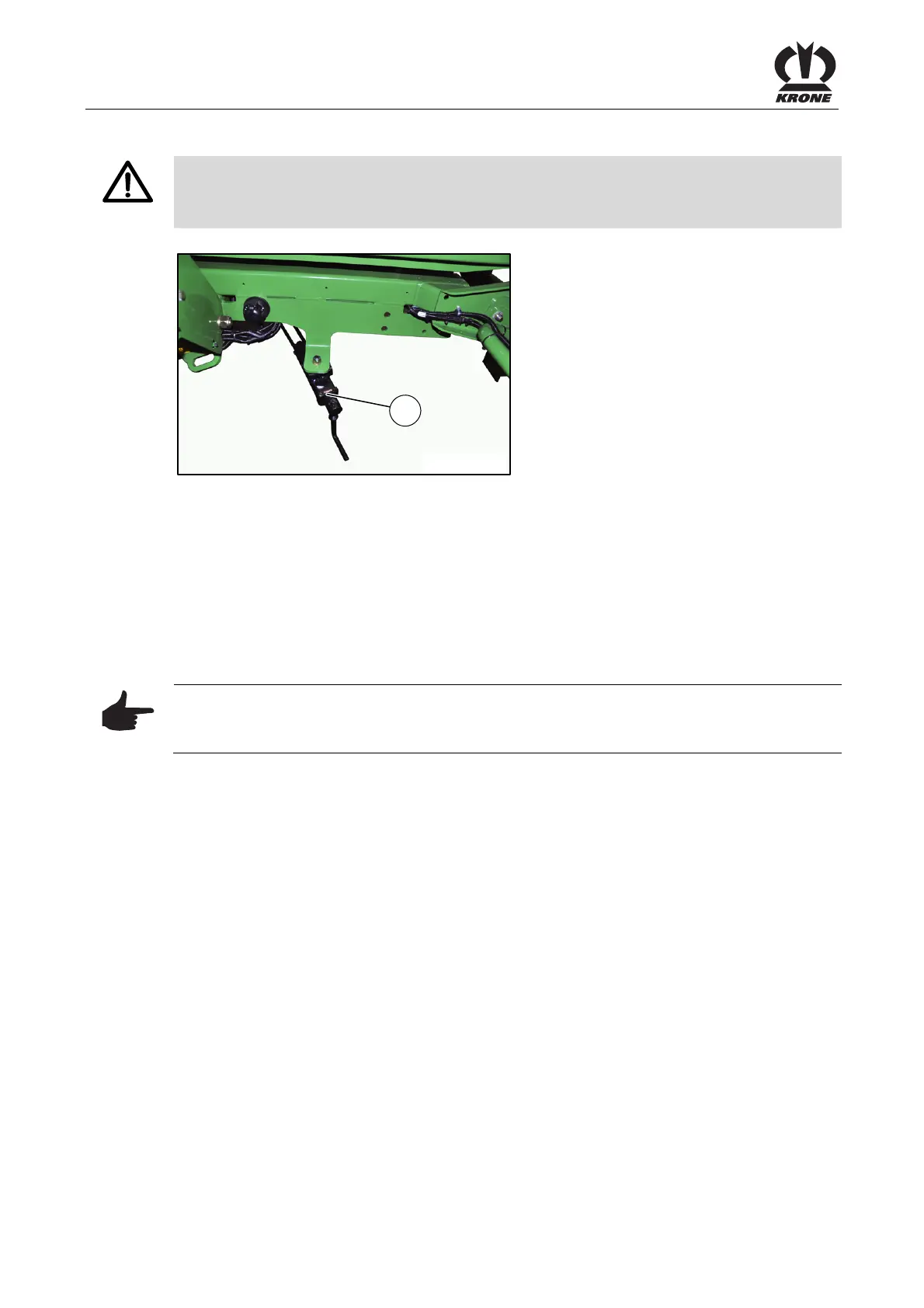

The crank (1) of the parking brake is located at the rear side of the BiG PACK baler under the
baling channel.
Pos: 16.33 /BA/Inbetr iebnahme/Festste llbremse/Festste llbremse @ 6\mod_121489870 7168_78.docx @ 96756 @ 2 @ 1
The parking brake is used to secure the machine from rolling away accidentally, especially
when the machine is disconnected from the tractor.
Set the parking brake:
• Turn the crank clockwise until the resistance grows noticeably greater.
Release the parking brake:
• Turn the crank anti-clockwise until the brake cable is slightly slack.
Pos: 16.34 /BA/Inbetr iebnahme/Festste llbremse/Hinweis Fes tstellbremse/Un terlegkeile @ 6\mod_121489 9429153_78.doc x @ 96796 @ @ 1
Note
To prevent the machine from rolling away, use the wheel chocks in addition to the parking
brake.
