Maintenance
252
Pos: 36.41.1 /Überschr iften/Überschr iften 2/F-J/Hochdr uckfilter @ 26\mod_12458 36423991_78.doc x @ 264126 @ @ 1
12.10 High-pressure filter
Pos: 36.41.2 /BA/W artung/Hochdruckf ilter/Mitteldruckf ilter optische Versc hmutzungsanzeige @ 32\ mod_1253092558858_78. docx @ 309853 @ @ 1
The filter takes up depositions of solid particles of the hydraulic system. The filtering of the
hydraulic circuit serves as a prevention of damages on components of the circuit. The filter is
equipped with an optical contamination indicator (7). The contamination indicator (7) informs
optical about the degree of contamination of the filter
Pos: 36.41.3 /BA/W artung/Hochdruckf ilter/Hinweis Versch mutzungsanzeige vor jedem Arbeitseinsatz kon trollieren @ 32\mod_12 53093743968_78.doc x @ 310077 @ @ 1
Note
Check the contamination indicator before the machine is used and exchange the contaminated
filter element if necessary.
Pos: 36.41.4 /BA/W artung/Hochdruckf ilter/Wann muss er Filter gewechselt werden @ 33\mod_125 4315575151_78.doc x @ 318964 @ @ 1
When starting in cold condition the button on the contamination indicator (7) could hop out. Only
press the button back in after achieving the operating temperature. In case it immediately hops
out again, the filter element needs to be changed.
Pos: 36.41.5 /BA/W artung/Hochdruckf ilter/Hochdruckfi lter bei Komfort_Hydrau lik Bild_BiG Pack HS @ 92\mo d_1326884096807_78.doc x @ 783111 @ @ 1
1
2
5
3
4
EIN
AUS

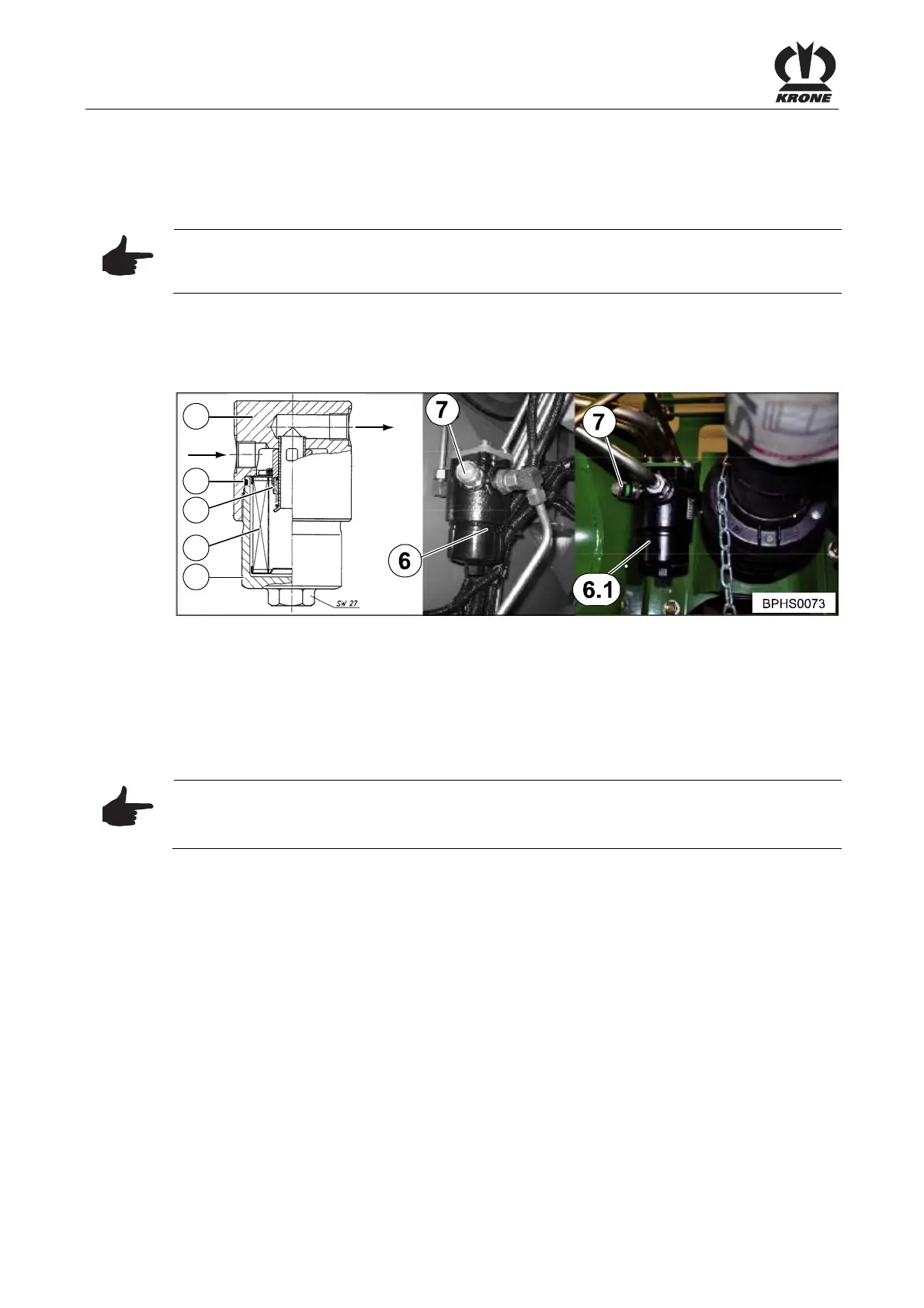

Fig. 184
Pos: 36.41.6 /BA/W artung/Hochdruckf ilter/Filterelement wechseln @ 26\mod_12458416 08710_78.docx @ 264205 @ @ 1
Replacing the Filter Element
Pos: 36.41.7 /BA/W artung/Hochdruckf ilter/Ort Hochdruckf ilter Bordhydrauli k/ Arbeitshydraulik Bi GPack @ 27\mod_124590777 5757_78.docx @ 264401 @ @ 1
The filter (6) of the on-board hydraulic system is located in front of the twine box on the left side
of the machine.
The filter (6.1) for the work hydraulics is located in the front area of the drawbar.
Pos: 36.41.8 /BA/W artung/Umwelt/Hin weis Entsorgen / Lagern von Öle und Ö lfilter Umwelt @ 32\mod_12 53101375171_78.doc x @ 311770 @ 2 @ 1
ENVIRONMENT! - Disposal and storage of used lubricants and oil filters
Effect: Environmental damage
Store or dispose used oil and oil filters according to statutory provisions.
Pos: 36.41.9 /BA/W artung/Hochdruckf ilterMitteldruc kfilterelement wechse ln(mit Verschmutzungs anzeige) Text (2013-07- 01 07:25:50) @ 32\mod_125 3779162271_78.doc x @ 316939 @ @ 1
• Relieve all pressure from the hydraulic system.
• Screw bottom of the filter (4) off the filter head piece (1) and clean it
• Remove the filter element (3) and replace by a new filter element with identical
characteristics
• Push a new filter element (3) onto the valve sleeve (5)
• Check the O-ring seal (2) and replace it, if necessary, by O-ring seal with identical
characteristics
• Screw bottom of the filter (4) back onto the filter head piece
• Charge the hydraulic system with pressure and check for leaks
