6.4 Manual mode
Pos: 22.37.2 /BA/I nfo-Center/CCI- ISOBUS-Terminal/CCI-Bi G Pack/Grundbild Handb etrieb/Grundbild Handbetrieb HS Baureihe @ 99\ mod_1329892134758_7 8.docx @ 883667 @ @ 1
6.4.1 Manual mode basic screen
F1
F2
F3
F4
F5
F6
F7
F8
F9
F10
F11F11
F12
CC000073_1
1/2

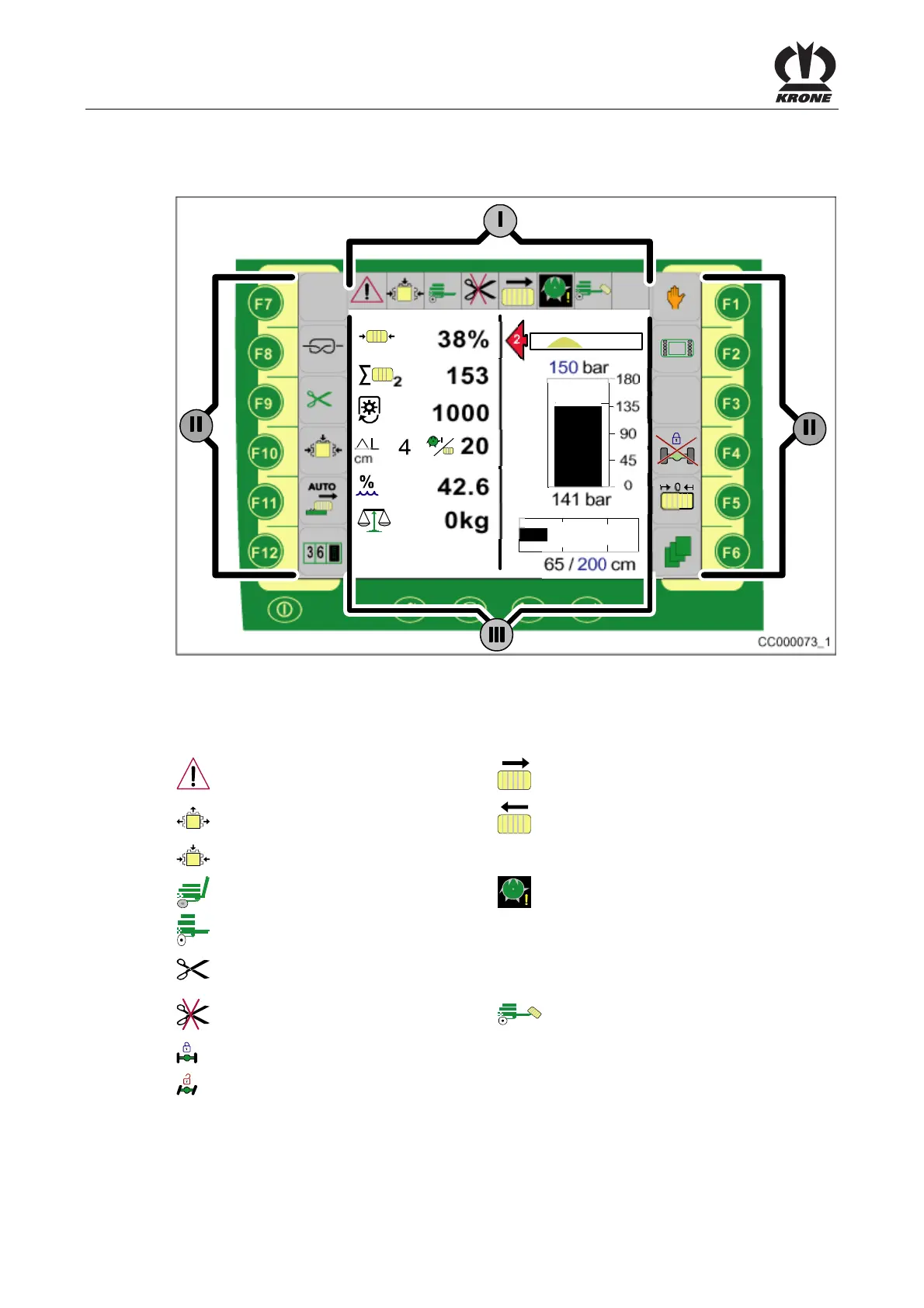

Fig.40
Pos: 22.37.3 /BA/I nfo-Center/CCI- ISOBUS-Terminal/CCI-B iG Pack/Grundbild Handb etrieb/Statuszei le (I) oberste Zeile HS Ba ureihe @ 63\mod_1299760703 576_78.docx @ 575871 @ @ 1
Status line (I)
Current states of the machine (depending on how it is equipped) are shown in the top line of the
display:
Alarm message is pending Deploy bale ejector
Bale channel flaps open (the
symbol flashes)
Retract bale ejector
Bale channel flaps closed
Machine load max. load, if
permanently inverted. For lower loads
flashing if not inverted during baling
=> check packer feed sensor.
Bale chute open
Bale chute down
Blade bar up and blades are active:
mowing in progress
Blade bar down and blades are
passive: mowing not in progress
Bale(s) being set down
Axle locked
Axle released
