11.11.5 Adjusting the feeler rocker
Pos: 34.81.25 /BA/E instellungen/Großpac kenpresse/Variab les Füllsystem VFS/Bi G PACK 4x4/Tastschwinge versetzen Teil1 BiG PACK 4 x4 @ 107\mod_1334224290945 _78.docx @ 964575 @ @ 1
Install the feeler rocker (1) in positions (1-4) depending on the application conditions.
Preset the length of the threaded rod (2) depending on the position of the feeler rocker
(see table).
CAUTION! Damage to the machine
Never move the threaded rod (2) into the bore (b), otherwise the machine will be
damaged.
Move the stop (10) depending on the position of the feeler rocker (see table).
Position of feeler rocker Length X (threaded rod) Position of stop
1 535 mm 1
2 535 mm 2
3 539 mm 3
4 547 mm 4
Pos: 34.81.26 /BA/E instellungen/Großpac kenpresse/Variab les Füllsystem VFS/Bi G PACK 4x4/Tastschwinge versetzen Bild BiG PAc k 4x4 @ 107\mod_1334224376 257_78.docx @ 964603 @ @ 1

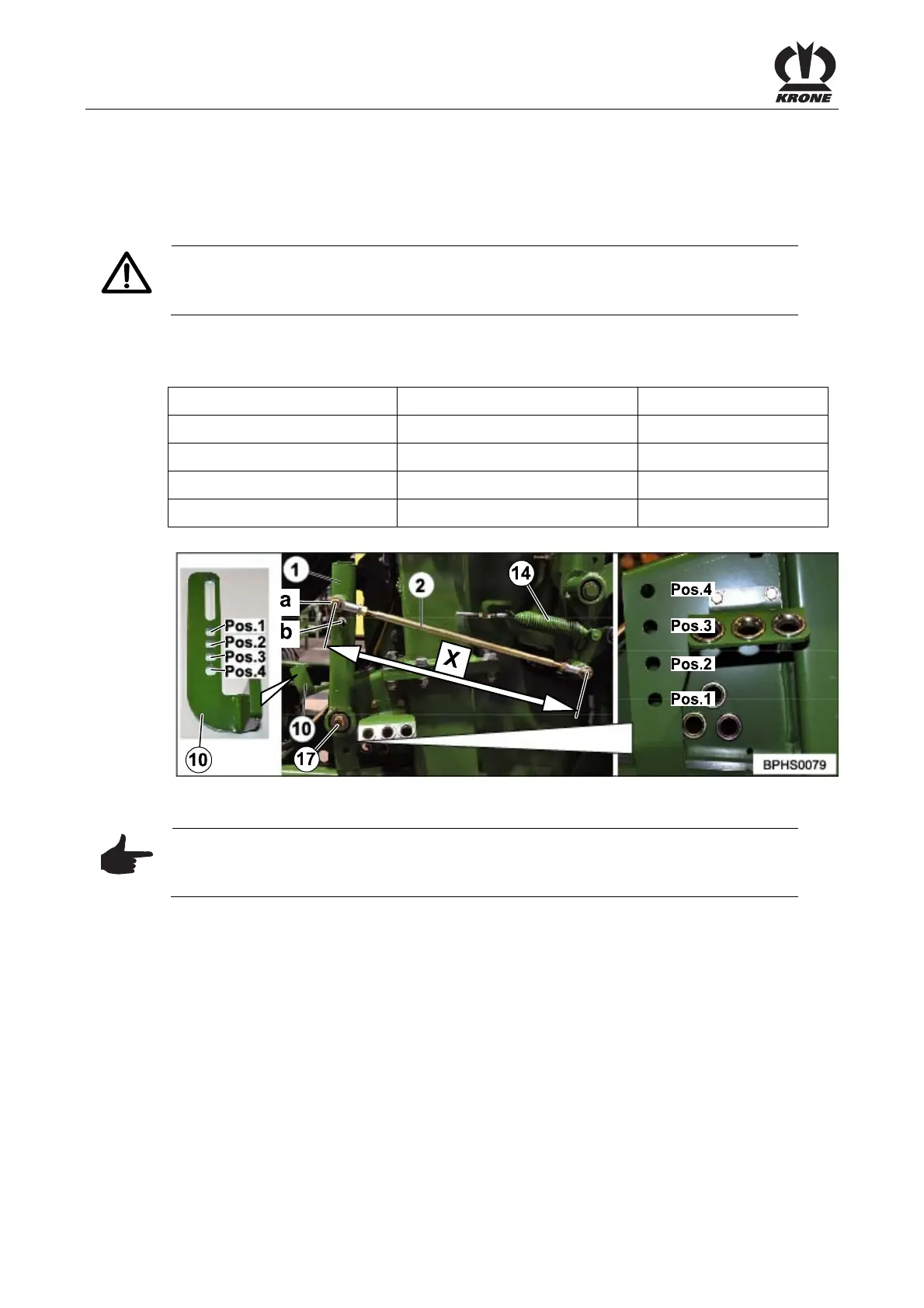

Fig. 170
Pos: 34.81.27 /BA/E instellungen/Großpac kenpresse/Variab les Füllsystem VFS/Bi G PACK 4x4/Tastschwinge versetzen Hinweis 1 @ 107\mod _1334224608802_78.doc x @ 964632 @ 2 @ 1
Note
Only move the feeler rocker (1) if the triggering sensitivity can no longer be adjusted with
the spring (14) (see Settings section “Adjusting the triggering sensitivity”).
Pos: 34.81.28 /BA/E instellungen/Großpac kenpresse/Variab les Füllsystem VFS/Bi G PACK 4x4/Tastschwinge versetzen Handlungs anweisung 1 @ 107\mod_133422 4662927_78.docx @ 964660 @ 23 @ 1
• Loosen the hexagonal head screw (17)
• Move the feeler rocker (1) into the required position
• Tighten the hexagonal head screw (17)
