12.18 Packer gearbox
Pos: 36.47.12.2 /BA/ Wartung/Ölkontrol le_Wechsel/Großpacke npresse/Raffer getriebe Anbringungsor t @ 24\mod_1241585198 221_78.docx @ 246121 @ @ 1
The packer gearbox (3) is located on the left side of the machine.
Pos: 36.47.12.3 /BA/ Wartung/Ölkontrol le_Wechsel/Großpacke npresse/Raffer getriebe_Bild BP 12130 @ 26\ mod_1245661130803_78. docx @ 262232 @ @ 1

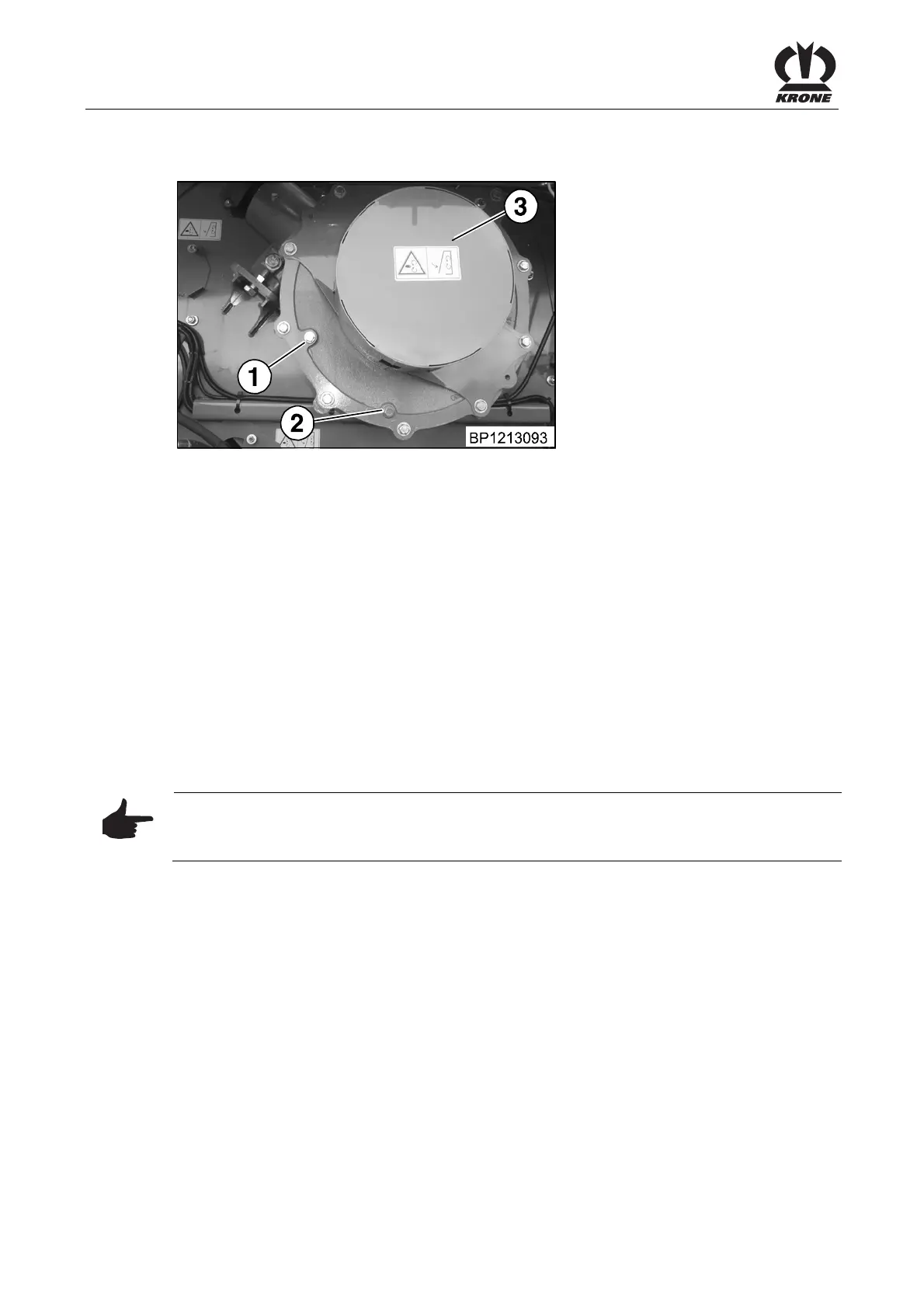

Fig. 189
Pos: 36.47.12.4 /BA/ Wartung/Ölkontrolle_W echsel/Ölkontro lle_ALTÖlkontrolle SAE 90 @ 0\mo d_1197008973815_78.doc x @ 15649 @ @ 1
Oil level check:
• For time intervals, see Chapter "Oil Level Check and Oil Change Intervals (Gearboxes)".
• Unscrew the inspection screw (1)
• Oil level up to bore hole (1)
• If necessary, top up the oil (SAE 90)
• Screw the check screw (1) back in.
Pos: 36.47.12.5 /BA/ Wartung/Ölkontrol le_Wechsel/Ölwechse l_ALTÖlwechsel Ver sion2 @ 0\mod_1197016258 486_78.docx @ 15884 @ @ 1
Oil change:
• For time intervals, see Chapter "Oil Level Check and Oil Change Intervals (Gearboxes)".
• Screw out the screw plug (2).
• Collect the used oil in a suitable drip pan
• Screw in the screw plug (2)
• Fill oil (1) (oil level up to hole (1))
Pos: 36.47.12.6 /BA/ Wartung/Ölkontrol le_Wechsel/Ölquali tät /Ölmenge: siehe Ka pitel @ 0\mod_11970078594 86_78.docx @ 15531 @ 22 @ 1
Oil quality / oil quantity: see Chapter "Filling Quantities and Lubricant Designations for
Gearboxes"
Pos: 36.47.12.7 /BA/ Wartung/Umwelt/ Hinweis Entsorgen / Lagern von Öle und Ölfilter Umwelt @ 32\ mod_1253101375171_78. docx @ 311770 @ @ 1
ENVIRONMENT! - Disposal and storage of used lubricants and oil filters
Effect: Environmental damage
Store or dispose used oil and oil filters according to statutory provisions.
