Krone Big Pack 4x4 - Pick-up; Default Setting (Working Height Setting)

Settings
237
Pos: 34.87 /Übersc hriften/Überschri ften 2/P-T/Pick up @ 1\mod_1 201791975201_0.doc x @ 54586 @ 2 @ 1
11.14 Pick-up
Pos: 34.88 /BA/Sic herheit/Pick- up / Rollenniederhalter/Gefahr - Arbeiten an bzw. unter der Pick-up @ 19\mod_1238575 749713_78.doc x @ 221447 @ @ 1
DANGER! - Working on or under the Pick-up!
Effect: Danger to life or serious injuries
To work on or under the Pick-up, always secure it against unintentional lowering by moving the
shut-off valve on the left side of the machine.
Pos: 34.89 /Übersc hriften/Überschri ften 2/F-J/Grundeins tellung (einstelle n der Arbeitshöhe) @ 19\mod_ 1238576636385_78.doc x @ 221585 @ 3 @ 1
11.15 Default Setting (Working Height Setting)
Pos: 34.90 /BA/Einste llungen/Pick- up / Rollenniederhalter /Pick-up Grundeins tellung Bild Big Pack 4x4 @ 71\ mod_1305803664850_78. docx @ 640783 @ @ 1

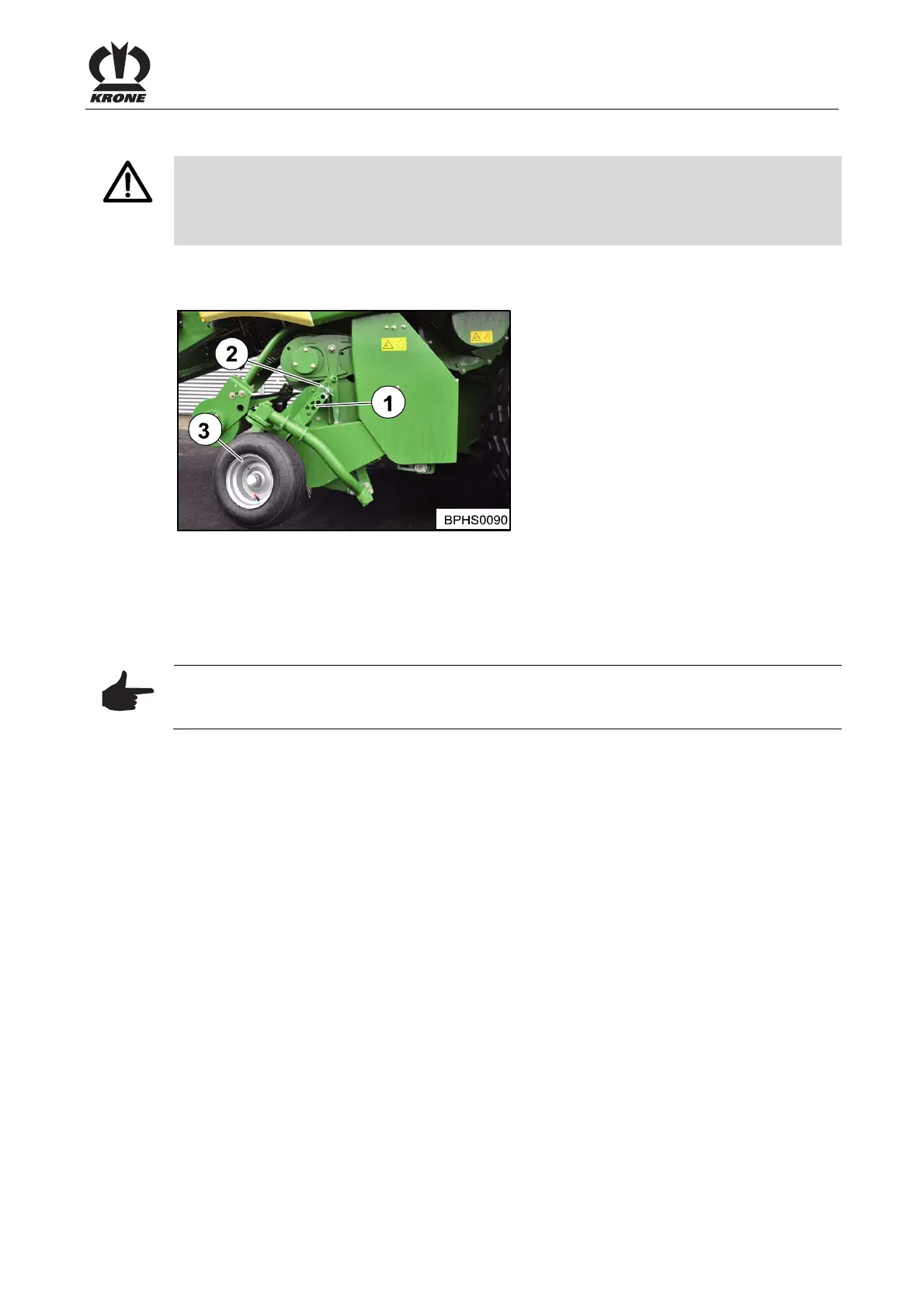

Fig. 175
Pos: 34.91 /BA/Einste llungen/Pick- up / Rollenniederhalter /Pick-up Grundeins tellung @ 20\mod_12385771 86541_78.docx @ 221681 @ 3 @ 1
The working height can be adjusted on the guide wheels (3) on either side of the pick-up. In
order to carry out the adjustment, lift and secure the pick-up. Pull the spring cotter pin (2) and
move the guide wheels into the desired position on the perforated bar (1). Secure the guide
wheels in place with the spring cotter pin.
Note
Make certain that the guide wheels on either side of the pick-up are in the same position on the
perforated bar.
