10.15 Pick-Up Drive Via Gearbox (Without Cutting System XC)

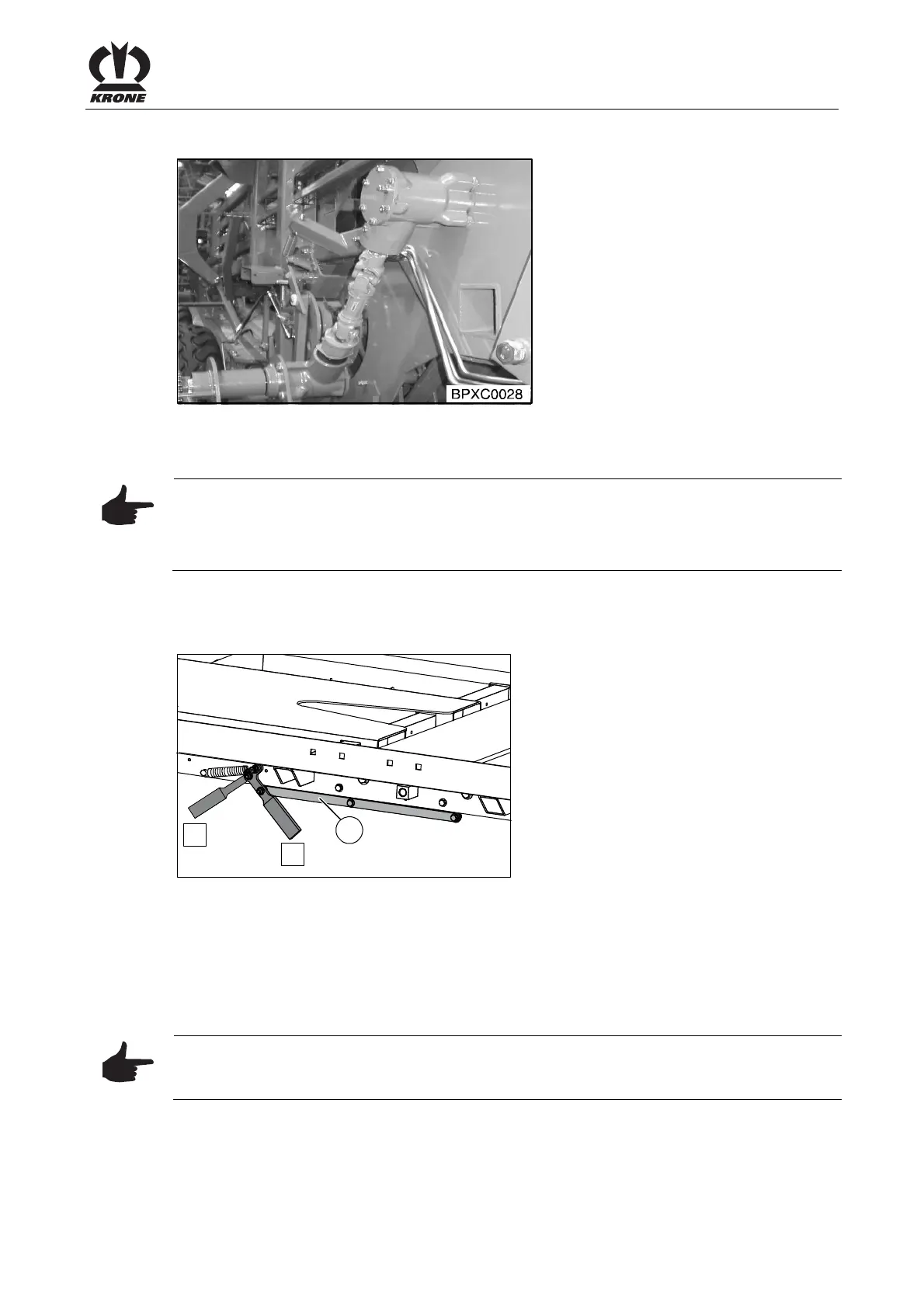

Fig. 130
The torque is transmitted by an angular gear from above through a PTO shaft with overload
coupling downwards onto an angular gear.
Pos: 32.44 /BA/Bedienun g /Großpackenpresse/ Überlastsic herungen / Kupplungen / Ster nratsche / Schersc hraubeHinweis Überlastkupp lung angesprochen @ 136\ mod_1353062689925_78. docx @ 1213829 @ 13 @ 1
Note
As soon as the overload coupling responds, stop the tractor and reduce the speed until the
machine has cleared itself again. The overload coupling now automatically resumes its work.
An error message appears in the display of the control unit.
Pos: 32.45 /BA/Bedienun g /Großpackenpresse/ Ballenbremse/Ba llenbremse @ 90\mod_132 3357448359_78.doc x @ 770823 @ @ 1
10.16 Bale brake
Only in connection with bale scale
b
a
1
BPHS0068
Fig. 131
The bale brake (1) is used to lock the first two rollers of the roller chute. This is necessary to
achieve accurate weight recording of bales.
Lever in position a = rollers locked
Lever in position b = rollers rotate freely
Note
The bale brake must be released for the last bale to ensure it can be set down with no
problems.
