Start-up
162
Pos: 28.54 /Übersc hriften/Überschri ften 2/A-E/Elektri sche Anschlüsse @ 17\mod_1 236579932558_78.doc x @ 205175 @ 3 @ 1
8.9 Electrical connections
Pos: 28.55 /BA/Inbetr iebnahme/Großpac kenpresse/Beleucht ung/Elektrische Ansc hlüsse HS Baureihe @ 64\ mod_1300279164824_78. docx @ 582812 @ 3 @ 1

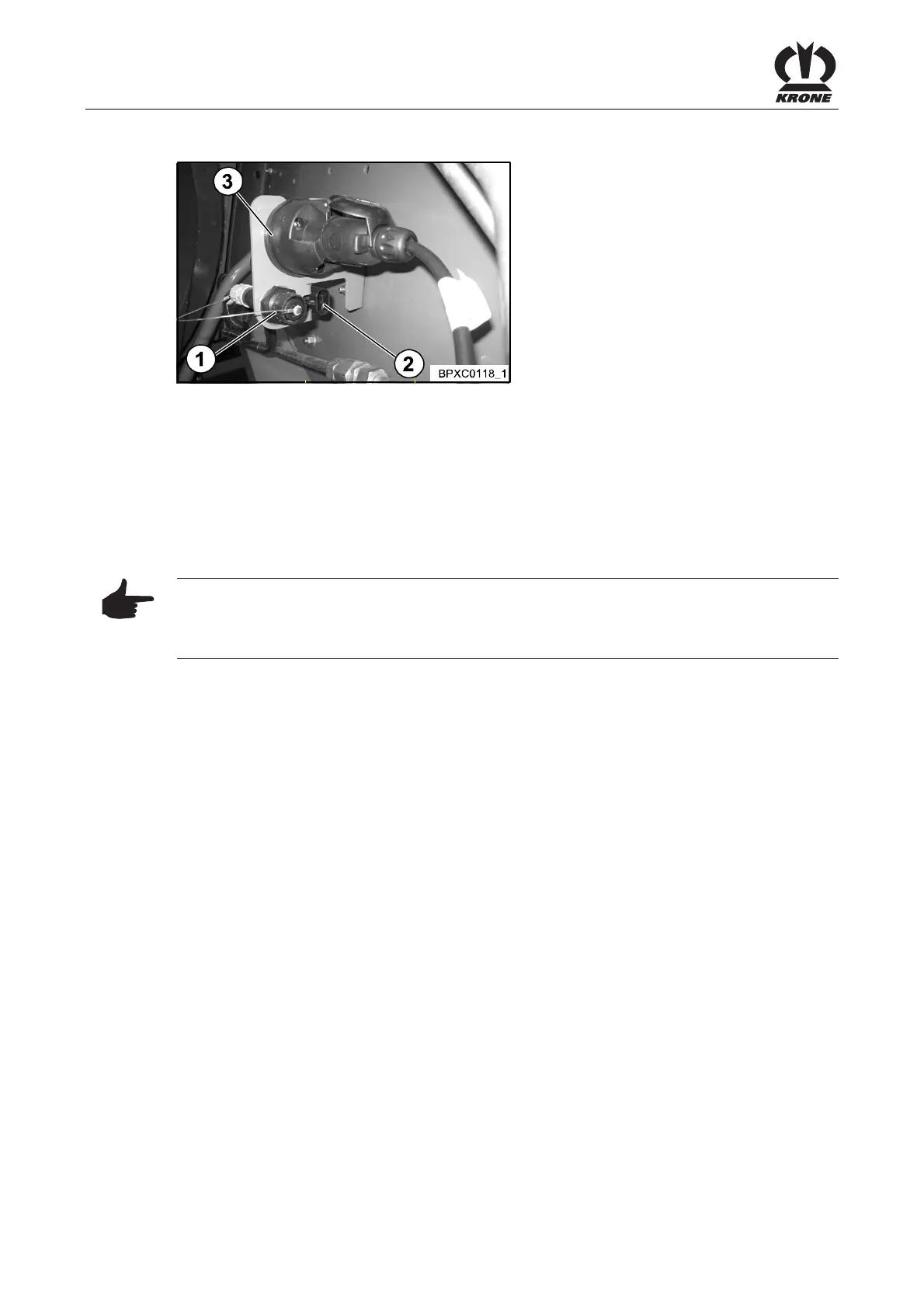

Fig.102
The machine requires a voltage source for supplying power to the on-board computer and
lighting. A socket for installation on the tractor is part of the scope of supply.
• The socket supplied is to be connected directly to the 12V battery of the tractor.
• Plug in and secure the connection cables in the corresponding sockets on the baler.
• Remove the protective cap before plugging in if necessary.
Pos: 28.56 /BA/Inbetr iebnahme/Großpac kenpresse/Beleucht ung/Hinweis Elektri sche Anschlüsse HS Baurei he @ 64\mod_13002792531 04_78.docx @ 582839 @ 32 @ 1
Note
As soon as the plug of the continuous current supply is plugged in and the control and display
unit is switched on and there is no twine in the needles, the acoustic signal for the twine control
sounds.
Pos: 28.57 /BA/Einlei tung/Maschinenüber sicht/Großpackenpr essen/Elektri kanschlüsse HS Baureihe @ 64\mod_13002723807 92_78.docx @ 582730 @ @ 1
Socket (1):
7 pin socket for connection cable between terminal and machine
Socket (2):
2 pin socket for power supply cable between machine and permanent tractor socket (direct
battery connection for permanent power supply needed).
Socket (3):
7-pin standard socket for lighting
