6.15.2 Menu 9-3 „Configuration Main Window“
In menu 9-3 you can determine which displays shall be shown in the main window (left column).
Up to 7 display elements can be displayed at the same time in the main window. Depending on
how the machine is equipped, you can select from up to 13 display elements which 7 display
elements shall be shown in the main window.
Moreover you can configure the main window individually on 2 pages (for example for 2
drivers).

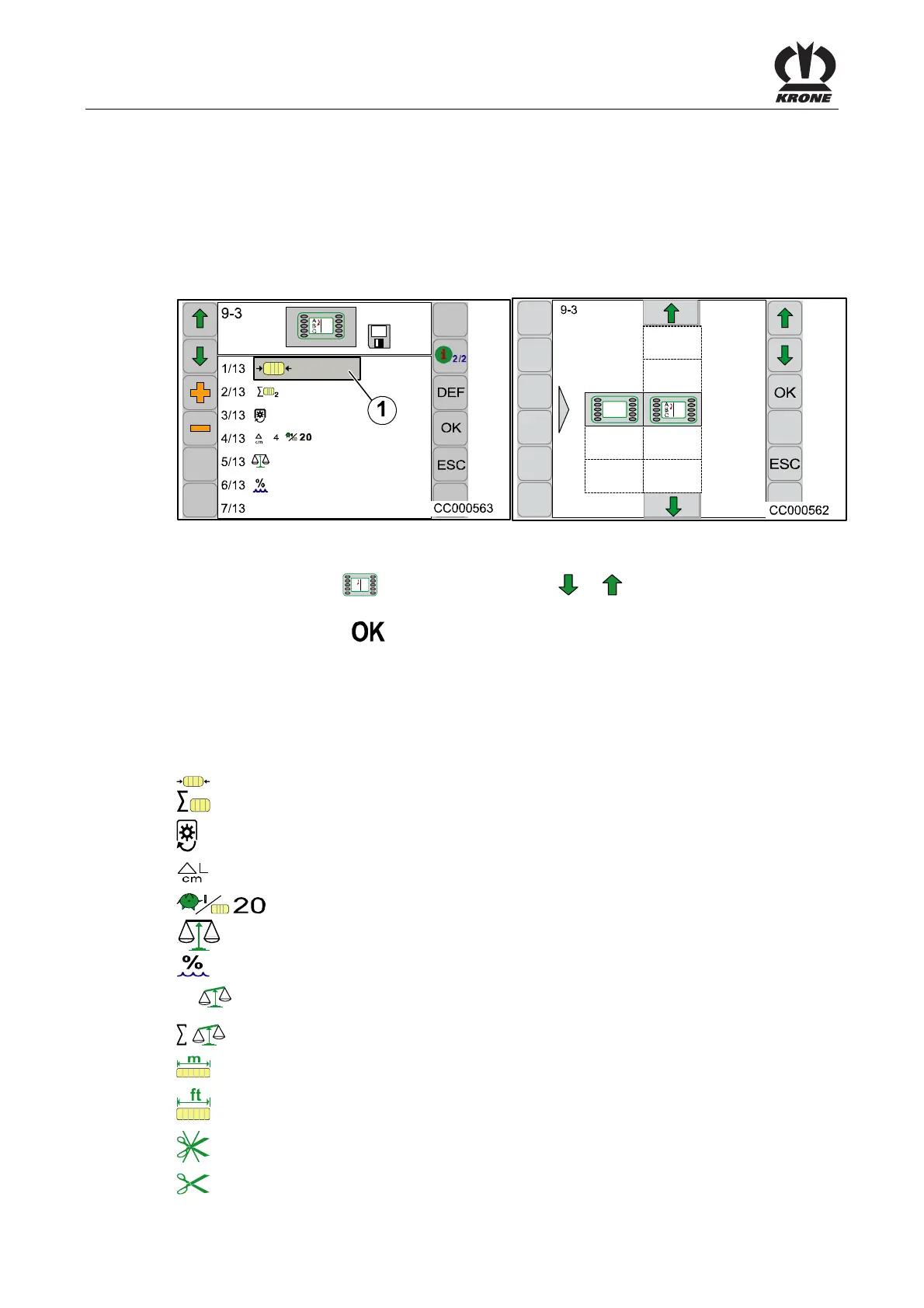

Fig. 81
The main menu 9 „Virtual Terminal (VT)“ is called
• Select menu 9-3 (
A
B
C
) by pressing function key or , the symbol is highlighted in
colour
• Press function key
The display shows menu 9-3 “Configuration Main Window”.
Pos: 22.207 /BA/Inf o-Center/CCI-I SOBUS-Terminal/Menü 9 ISO-Ei nstellungen/Menü 9- 3 Mögliche Auswahlele mente für das Hauptfenster (je nach Ausstattung der Maschine) @ 146\mod_136 0146285555_78.doc x @ 1308004 @ 2 @ 1
Possible selection elements for the main window (depending on how the machine is
equipped)
Pos: 22.208 /BA/Inf o-Center/CCI-I SOBUS-Terminal/CCI- BiG Pack/Grundbild Handbe trieb/Anzeigen i m Hauptfenster (III) linke Spalte HS Baureihe @ 146\mo d_1360061307841_78.doc x @ 1306579 @ @ 1
Left column (A):
Current baling force as a % (100% = max.)
2
Total number of bales, current customer counter
Current P.T.O. speed (min
-1
)
Current layer thickness in cm or inch (only for electrical bale length
adjustment)
Number of layers per bale
Bale weight (of the bale weighed at last)
Moisture degree of the crop
Ø
Average weight of the weighed bales
Total weight of all bales
Bale length counter (metric in metres)
Bale length counter (unit of measure US in feet)
Number of uncut bales
Number of cut bales (only for machines with X-Cut)
To Next Page
