Maintenance - Brake System
266
Pos: 36.49.5 /Überschr iften/Überschr iften 2/A-E/Druc kluftbehälter @ 12\mod_122 4144256075_78.doc x @ 150965 @ @ 1
13.2 Compressed-air reservoir
Pos: 36.49.6 /BA/W artung/Druckluftbehä lter/Druckluftbeh älter Bild BP 12130 @ 26\mod_1 245661964037_78. docx @ 262283 @ @ 1

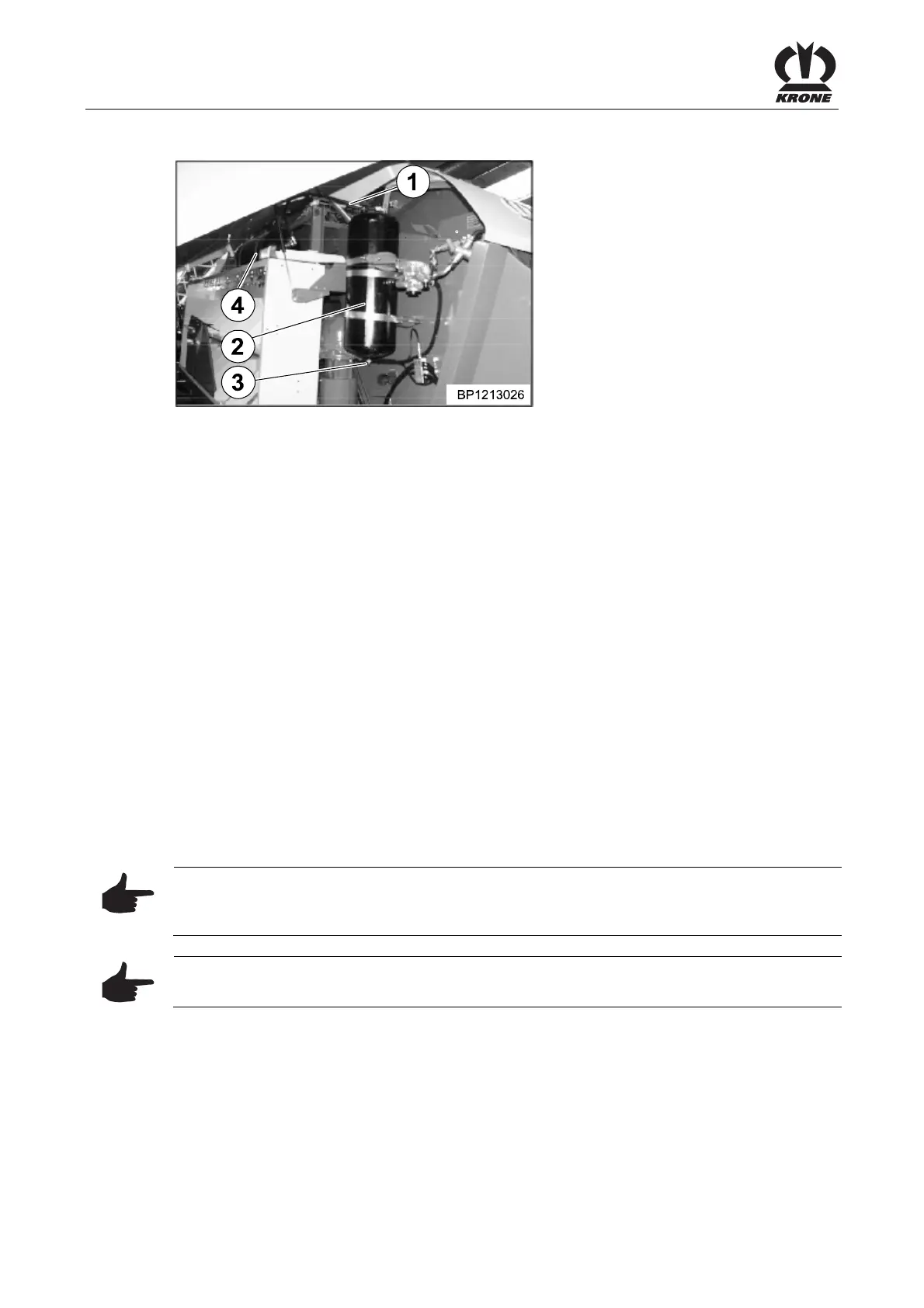

Fig. 193
Pos: 36.49.7 /BA/W artung/Druckluftbehä lter/Druckluftbeh älter Text Zusatz Bi g Pack @ 25\mod_124265410364 6_78.docx @ 253626 @ 32 @ 1
• BiG PACK balers that are equipped with a compressed air brake have two compressed
air reservoirs (1x compressed air reservoir (2) for the compressed air brake /1x
compressed air reservoir (4) for the knotter cleaning)
• BiG PACK balers that are equipped with a hydraulic brake have one compressed air
reservoir (4) (1x for knotter cleaning)
The brake system's compressed air reservoir (2) for BiG PACK balers with compressed air
brakes is on the right side of the machine. It is connected with the compressed air reservoir (4)
for knotter cleaning through a compressed air line (1).
The compressed air reservoir (4) for knotter cleaning (compressed air brake / hydraulic brake) is
located on the right side on the twine box.
Pos: 36.49.8 /BA/W artung/Druckluftbehä lter/Druckluftbeh älter_Text 20 Betrieb sstunden @ 0\mod_1200293 406164_78.doc x @ 39343 @ @ 1
The compressed-air reservoir stores the compressed air that is pumped by the compressor.
Therefore condensation water may settle in the compressed air reservoir during operation. The
compressed-air reservoir must be emptied regularly. Specifically, it must be emptied:
• daily in winter (when being used),
• otherwise weekly and
• at least after 20 operating hours.
The drain valve on the bottom of the compressed-air reservoir is used for draining.
• Switch off and secure the machine.
• Open the drain valve and allow the condensation to run out.
• Check the drain valve, clean it and screw it back in.
Note
If the drain valve has a heavy accumulation of dirt or is leaking, it must be replaced by a new
one.
Pos: 36.49.9 /BA/W artung/Druckluftbehä lter/Beschädigt e Druckluftbehälter austauschen @ 12\mod_12241 45015309_78.doc x @ 151057 @ @ 1
Note
Have damaged compressed air reservoirs replaced by a specialist's workshop
Pos: 36.49.10 /BA/---------------Seitenumbruch---------------- @ 0\mod_1196175311226_0.doc x @ 4165 @ @ 1
