6 KRONE ISOBUS-Terminal CCI 100
Pos: 22.2 /BA/Inf o-Center/CCI-ISOBUS- Terminal/Hinweis Im wei teren Verlauf Termina l auch als Bedieneinhei t bezeichnet @ 46\mod_128 1680416671_78.doc x @ 445465 @ 2 @ 1
Note
In the operating instructions which follow, the terminal will also be referred to as the "control
unit".
Pos: 22.3 /BA/Sic herheit/Gefahrenhin weise/Achtung - Bedienein heit schützen @ 0\mod_ 1200308247867_78.doc x @ 39598 @ @ 1
Caution! - Protect Control Unit.
Effect: Damage to the control unit
• The control unit must be protected against water.
• If the machine is not used for an extended period of time (for example during the winter),
the control unit must be stored in a dry place.
• For mounting and repair jobs, especially for welding jobs on the machine, disconnect the
power supply to the control unit. Overvoltage can damage the control unit.
Pos: 22.4 /BA/Inf o-Center/CCI-ISOBUS- Terminal/CCI-BiG Pac k/Allgemeine Beschr eibung (Die elektronisc he Ausstattung der Masc hine ........) Text/Bild @ 43\mod_1274868004640_78.doc x @ 387798 @ @ 1
F1
F2
F3
F4
F5
F6
F7
F8
F9
F10
F11F11
F12
ESC
CC000013
3
Fig. 26

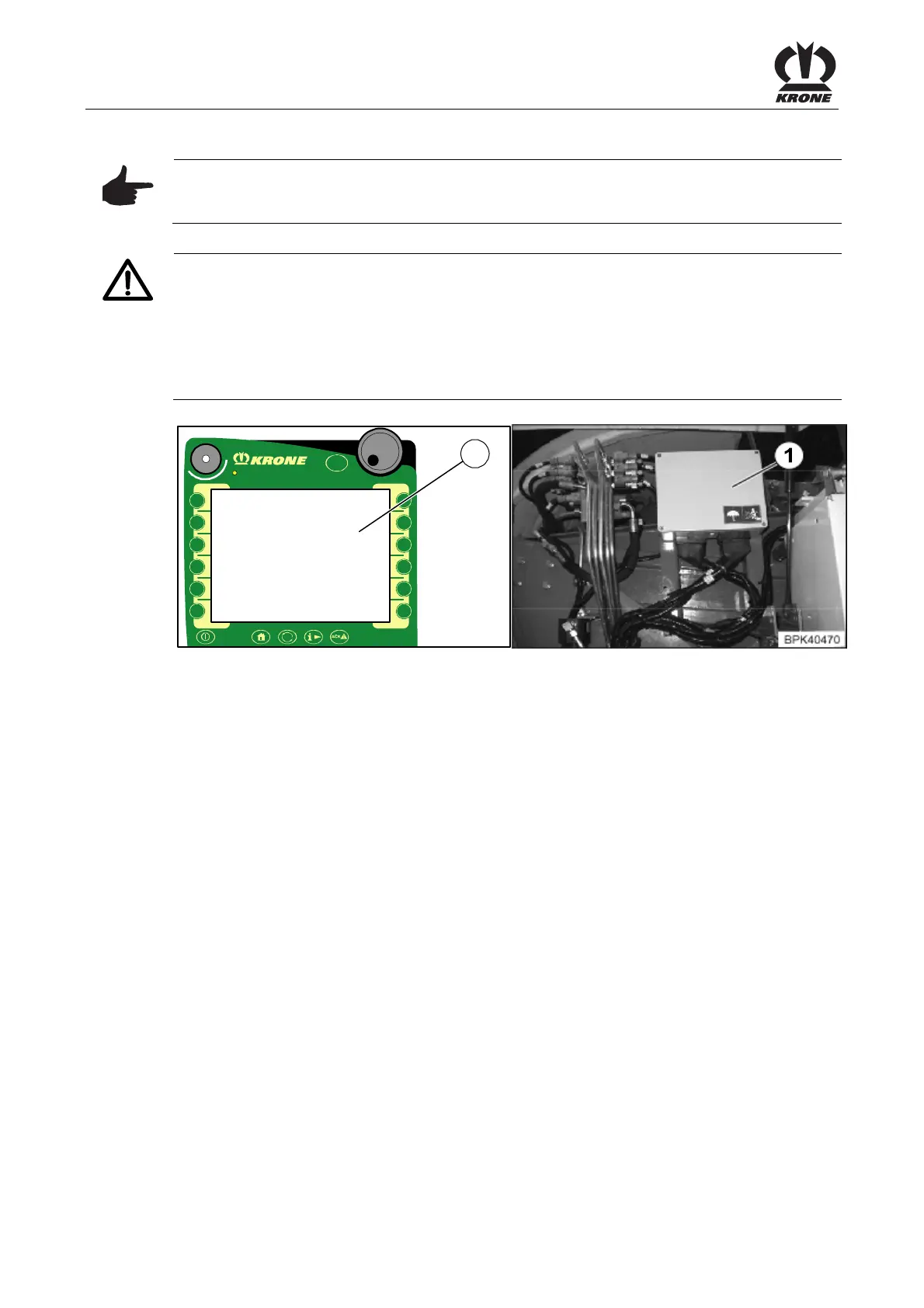

The electronic equipment of the machine consists essentially of the job computer (1), the
terminal (3) and the control and function elements.
The job computer (1) is located on the front left of the machine under the side hood.
Its functions are:
• Regulation of the baling density
• Bale counter
• Control of the actuators installed on the machine
• Transfer of alarm messages
• Sensor system/actuator diagnostics
The control unit (3) communicates information to the driver and performs settings to operate the
machine. This information is received and further processed by the job computer.
